Proportional directional valves Parts
Compare Proportional directional valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Spool symbol | Nominal flow [l/min] | Supply voltage | Weight [kg] |
|---|---|---|---|---|---|
| R900948360 | 4WRE(E)6,10 | Symbol W | 75.0 | 24 VDC | 6.24 |
| R901284098 | 4WRE(E)6,10 | Symbol W | 75.0 | 24 VDC | 6.54 |
| R900927233 | 4WRE(E)6,10 | Symbol W | 75.0 | 24 VDC | 6.24 |

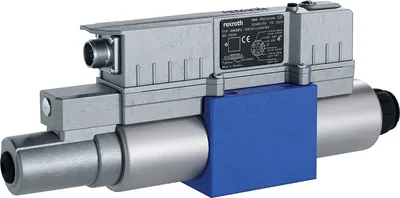

| R901572053 | 4WREE | Symbol W | 50.0 | 24 VDC | 7.31 |
| R901572037 | 4WREE | Symbol W | 50.0 | 24 VDC | 5.7 |
| R901582577 | 4WREE | Symbol W | 50.0 | 32 VDC | 7.3 |
| R900949806 | 4WRE(E)6,10 | Symbol W | 50.0 | 24 VDC | 6.25 |
| R900931371 | 4WRE(E)6,10 | Symbol W | 50.0 | 24 VDC | 6.26 |
| R901582117 | 4WREE | Symbol W | 25.0 | 24 VDC | 7.3 |
| R901585393 | 4WREE | Symbol W | 25.0 | 40 VDC | 7.3 |
| R900953102 | 4WRE(E)6,10 | Symbol W | 25.0 | 24 VDC | 6.25 |
| R900933074 | 4WRE(E)6,10 | Symbol W | 25.0 | 24 VDC | 6.26 |
| R901572055 | 4WREE | Symbol W2 | 75.0 | 24 VDC | 7.26 |
| R901572025 | 4WREE | Symbol W1 | 75.0 | 24 VDC | 7.3 |
| R901572032 | 4WREE | Symbol W1 | 75.0 | 24 VDC | 7.3 |
| R901582118 | 4WREE | Symbol W1 | 75.0 | 24 VDC | 7.32 |
| R901582119 | 4WREE | Symbol W1 | 75.0 | 24 VDC | 7.3 |

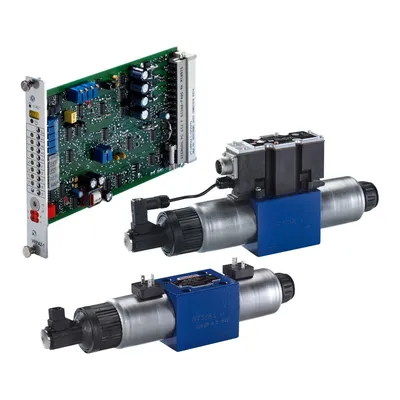

| R900976119 | 4WRE(E)6,10 | Symbol W1 | 75.0 | 24 VDC | 6.34 |
| R901289124 | 4WRE(E)6,10 | Symbol W1 | 75.0 | 24 VDC | 6.54 |
| R900927234 | 4WRE(E)6,10 | Symbol W1 | 75.0 | 24 VDC | 6.26 |
| R901572045 | 4WREE | Symbol W1 | 50.0 | 24 VDC | 7.3 |
| R901572048 | 4WREE | Symbol W1 | 50.0 | 24 VDC | 7.3 |
| R901582576 | 4WREE | Symbol W1 | 50.0 | 31 VDC | 2.7 |
| R900965185 | 4WRE(E)6,10 | Symbol W1 | 50.0 | 24 VDC | 6.24 |
Common to all listed parts
| Connection diagram | ISO 4401-05-04-0-05 |
| Type of connection | Subplate mounting |
| Size | 10 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Electrical connector | Connector, 7-pole (6 + PE) |
