Proportional directional valves Parts

Bosch Rexroth

R901553418

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V1-32-3X/V/24F1

Bosch Rexroth

R901524439

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V1-32-3X/V/24A1

Bosch Rexroth

R901536492

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V1-16-3X/V/24F1

Bosch Rexroth

R901524434

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V1-16-3X/V/24A1

Bosch Rexroth

R901546147

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V1-16-3X/M/24A1

Bosch Rexroth

R901541252

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V1-08-3X/V/24F1

Bosch Rexroth

R901522908

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V1-08-3X/V/24A1

Bosch Rexroth

R901546148

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V1-08-3X/M/24A1

Bosch Rexroth

R901524353

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V08-3X/V/24F1

Bosch Rexroth

R901496436

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V08-3X/V/24A1

Bosch Rexroth

R901579240

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V08-3X/M/24A1

Bosch Rexroth

R901134236

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V08-2X/G24K31/F1V-876

Bosch Rexroth

R900921427

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V08-2X/G24K31/F1V

Bosch Rexroth

R901354737

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V08-2X/G24K31/F1M

Bosch Rexroth

R901057146

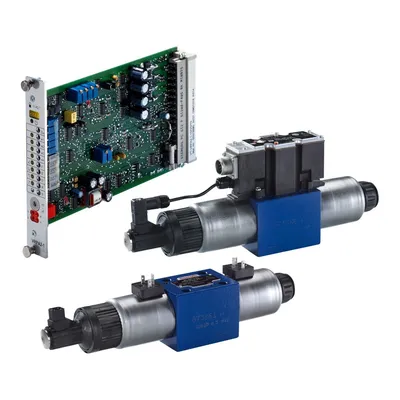

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V08-2X/G24K31/A1V-826

Bosch Rexroth

R901125120

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V08-2X/G24K31/A1V-742

Bosch Rexroth

R900909367

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V08-2X/G24K31/A1V

Bosch Rexroth

R901524433

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V04-3X/V/24F1

Bosch Rexroth

R901516990

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V04-3X/V/24A1

Bosch Rexroth

R900976331

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V04-2X/G24K31/F1V

Bosch Rexroth

R900936357

PROPORTIONAL DIRECTIONAL VALVE 4WREE6V04-2X/G24K31/A1V

Bosch Rexroth

R901526575

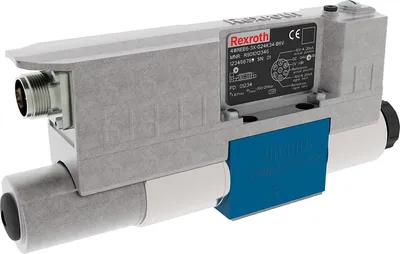

PROPORTIONAL DIRECTIONAL VALVE 4WREE6EA32J-3X/V/24A1

Bosch Rexroth

R901524615

PROPORTIONAL DIRECTIONAL VALVE 4WREE6EA32-3X/V/24F1

Bosch Rexroth

R901524551

PROPORTIONAL DIRECTIONAL VALVE 4WREE6EA32-3X/V/24A1

Compare Proportional directional valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Max. flow [l/min]	Spool symbol	Nominal flow [l/min]	Connectivity	Weight [kg]
R901553418	80.0	Symbol V1	32.0	Analog, command value 4…20 mA	2.6
R901524439	80.0	Symbol V1	32.0	Analog, command value ±10 V	2.64
R901536492	80.0	Symbol V1	16.0	Analog, command value 4…20 mA	2.63
R901524434	80.0	Symbol V1	16.0	Analog, command value ±10 V	2.64
R901546147	80.0	Symbol V1	16.0	Analog, command value ±10 V	2.62
R901541252	80.0	Symbol V1	8.0	Analog, command value 4…20 mA	2.63
R901522908	80.0	Symbol V1	8.0	Analog, command value ±10 V	2.64
R901546148	80.0	Symbol V1	8.0	Analog, command value ±10 V	2.62
R901524353	80.0	Symbol V	8.0	Analog, command value 4…20 mA	2.63
R901496436	80.0	Symbol V	8.0	Analog, command value ±10 V	2.6
R901579240	80.0	Symbol V	8.0	Analog, command value ±10 V	2.64
R901134236	58.0	Symbol V	8.0	Analog, command value 4…20 mA	2.42
R900921427	58.0	Symbol V	8.0	Analog, command value 4…20 mA	2.42
R901354737	58.0	Symbol V	8.0	Analog, command value 4…20 mA	2.42
R901057146	58.0	Symbol V	8.0	Analog, command value ±10 V	2.41
R901125120	58.0	Symbol V	8.0	Analog, command value ±10 V	2.44
R900909367	58.0	Symbol V	8.0	Analog, command value ±10 V	2.44
R901524433	80.0	Symbol V	4.0	Analog, command value 4…20 mA	2.64
R901516990	80.0	Symbol V	4.0	Analog, command value ±10 V	2.6
R900976331	20.0	Symbol V	4.0	Analog, command value 4…20 mA	2.4
R900936357	20.0	Symbol V	4.0	Analog, command value ±10 V	2.44
R901526575	80.0	Symbol EA	32.0	Analog, command value 0…10 V	2.09
R901524615	80.0	Symbol EA	32.0	Analog, command value 4…20 mA	2.11
R901524551	80.0	Symbol EA	32.0	Analog, command value 0…10 V	2.1

Common to all listed parts

Connection diagram	ISO 4401-03-02-0-05
Type of connection	Subplate mounting
Size	6
Type of actuation	Electrical with on-board electronics
Number of ports	4
Supply voltage	24 VDC
Electrical connector	Connector, 7-pole (6 + PE)
