Cold plate or feed-through mounting Parts

B&R 8BVI0014HCDS.000-1 – Clearly structured, straightforward implementation via…

B&R

8BVI0014HCDS.000-1

Clearly structured, straightforward implementation via…

B&R 8BVI0028HCDS.000-1 – ACOPOSmulti SafeMOTION EnDat 2.2 inverter module, 3.8 A, AS

B&R

8BVI0028HCDS.000-1

ACOPOSmulti SafeMOTION EnDat 2.2 inverter module, 3.8 A, AS

B&R 8BVI0055HCDS.000-1 – Clearly structured, straightforward implementation via…

B&R

8BVI0055HCDS.000-1

Clearly structured, straightforward implementation via…

B&R 8BVI0110HCDS.000-1 – Clearly structured, straightforward implementation via…

B&R

8BVI0110HCDS.000-1

Clearly structured, straightforward implementation via…

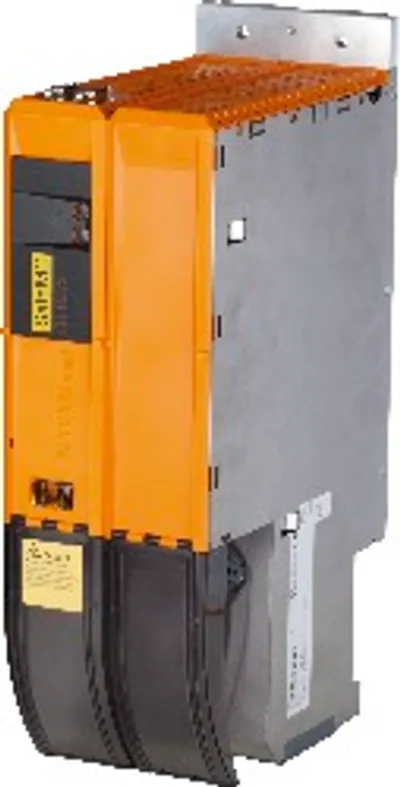

B&R 8BVI0220HCDS.000-1 – ACOPOSmulti SafeMOTION EnDat 2.2 inverter module, 22 A, AS

B&R

8BVI0220HCDS.000-1

ACOPOSmulti SafeMOTION EnDat 2.2 inverter module, 22 A, AS

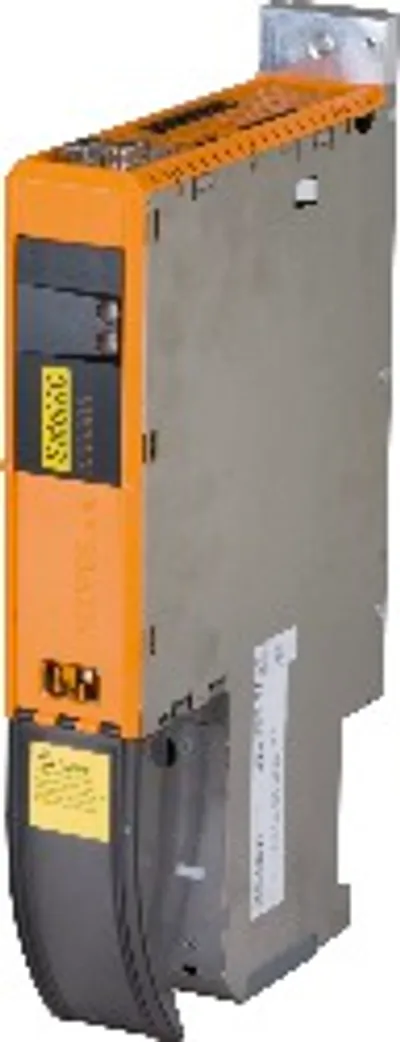

B&R 8BVI0014HCDS.000-3 – ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 1.9 A

B&R

8BVI0014HCDS.000-3

ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 1.9 A

B&R 8BVI0028HCDS.000-3 – ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 3.8 A

B&R

8BVI0028HCDS.000-3

ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 3.8 A

B&R 8BVI0055HCDS.000-3 – ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 7.6 A

B&R

8BVI0055HCDS.000-3

ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 7.6 A

B&R 8BVI0110HCDS.000-3 – ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 15.1 A

B&R

8BVI0110HCDS.000-3

ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 15.1 A

B&R 8BVI0220HCDS.000-3 – ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 22 A, AS

B&R

8BVI0220HCDS.000-3

ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 22 A, AS

B&R 8BVI0028HCDS.000-4 – ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0028HCDS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R 8BVI0014HCDS.000-4 – ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0014HCDS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R 8BVI0110HCDS.000-4 – ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0110HCDS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R 8BVI0055HCDS.000-4 – ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0055HCDS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R 8BVI0220HCDS.000-4 – ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0220HCDS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

Compare Cold plate or feed-through mounting

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	DC bus capacitance	Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level	Energy efficiency (IE classification) – Nominal losses in standby mode	Discharge capacitance	Weight
8BVI0014HCDS.000-1	165 µF	0.19 A eff per 1000 m	10.3 W	0.2 µF	Approx. 2.3 kg
8BVI0028HCDS.000-1	165 µF	0.38 A eff per 1000 m	10.3 W	0.14 µF	Approx. 2.3 kg
8BVI0055HCDS.000-1	330 µF	0.76 A eff per 1000 m	10.3 W	0.2 µF	Approx. 2.3 kg
8BVI0110HCDS.000-1	660 µF	1.51 A eff per 1000 m	11.5 W	0.44 µF	Approx. 4.1 kg
8BVI0220HCDS.000-1	1320 µF	2.2 A eff per 1000 m	11.5 W	0.44 µF	Approx. 4.4 kg
8BVI0014HCDS.000-3	165 µF	0.19 A eff per 1000 m	11.3 W	0.2 µF	Approx. 2.3 kg
8BVI0028HCDS.000-3	165 µF	0.38 A eff per 1000 m	11.3 W	0.14 µF	Approx. 2.3 kg
8BVI0055HCDS.000-3	330 µF	0.76 A eff per 1000 m	11.3 W	0.2 µF	Approx. 2.3 kg
8BVI0110HCDS.000-3	660 µF	1.51 A eff per 1000 m	12.5 W	0.44 µF	Approx. 4.1 kg
8BVI0220HCDS.000-3	1320 µF	2.2 A eff per 1000 m	12.5 W	0.44 µF	Approx. 4.4 kg
8BVI0028HCDS.000-4	165 µF	0.38 A eff per 1000 m	11.3 W	0.14 µF	Approx. 2.3 kg
8BVI0014HCDS.000-4	165 µF	0.19 A eff per 1000 m	11.3 W	0.2 µF	Approx. 2.3 kg
8BVI0110HCDS.000-4	660 µF	1.51 A eff per 1000 m	12.5 W	0.44 µF	Approx. 4.1 kg
8BVI0055HCDS.000-4	330 µF	0.76 A eff per 1000 m	11.3 W	0.2 µF	Approx. 2.3 kg
8BVI0220HCDS.000-4	1320 µF	2.2 A eff per 1000 m	12.5 W	0.44 µF	Approx. 4.4 kg

Common to all listed parts

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – Functional safety	Yes (openSAFETY)
Certifications – UL	cULus E225616; Power conversion equipment
Cooling and mounting type	Cold plate or pass-through mounting
Voltage – Nominal	750 VDC
Input voltage	25 VDC ±1.6%
Input capacitance	23.5 µF
