Wall mounting Parts

B&R

8BVI0014HWDS.000-1

Clearly structured, straightforward implementation via…

B&R

8BVI0028HWDS.000-1

Clearly structured, straightforward implementation via…

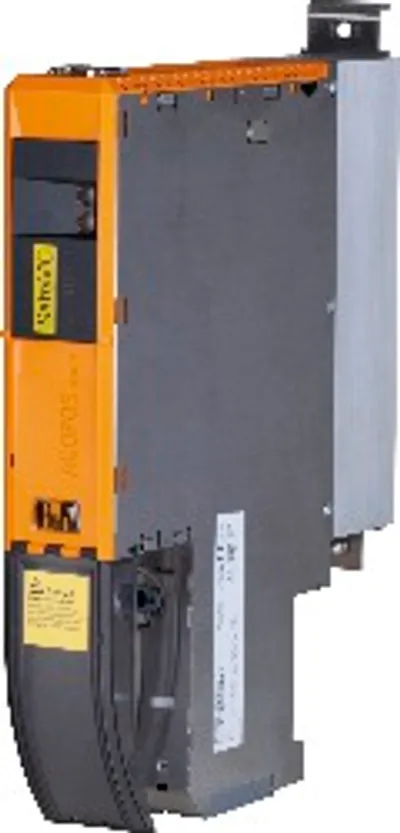

B&R

8BVI0055HWDS.000-1

Clearly structured, straightforward implementation via…

B&R

8BVI0110HWDS.000-1

Clearly structured, straightforward implementation via…

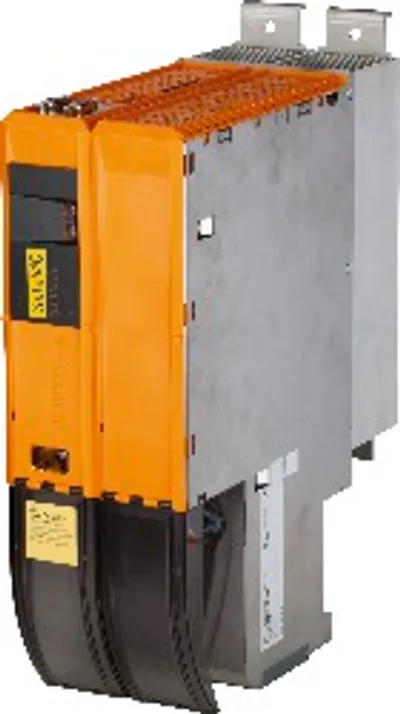

B&R

8BVI0220HWDS.000-1

Clearly structured, straightforward implementation via…

B&R

8BVI0014HWDS.000-3

ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 1.9 A

B&R

8BVI0028HWDS.000-3

ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 3.8 A

B&R

8BVI0055HWDS.000-3

ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 7.6 A

B&R

8BVI0110HWDS.000-3

ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 15.1 A

B&R

8BVI0220HWDS.000-3

ACOPOSmulti3 SafeMOTION EnDat 2.2 inverter module, 22 A, AS

B&R

8BVI0055HWDS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0014HWDS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

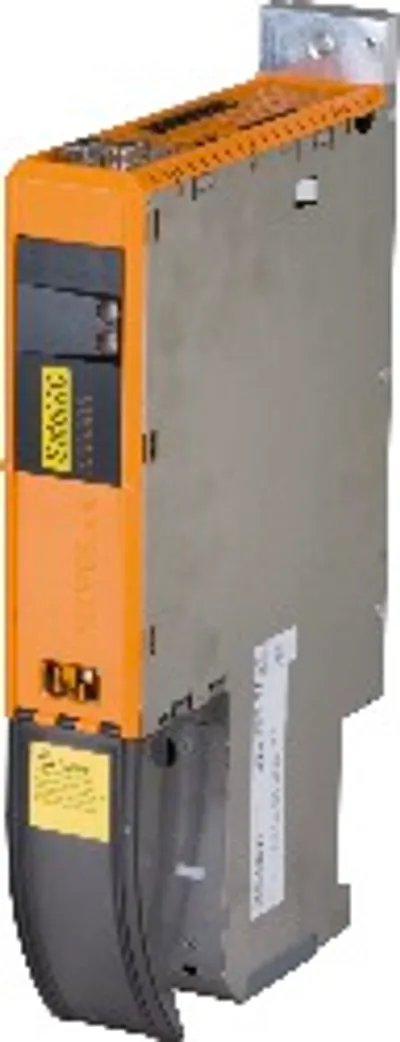

8BVI0028HWDS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0110HWDS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

B&R

8BVI0220HWDS.000-4

ACOPOSmulti3 SafeMOTION EnDat 2.2 Gen2 inverter module

Compare Wall mounting

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Certifications – CRA (Cyber Resilience Act)	DC bus capacitance	Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level	Energy efficiency (IE classification) – Nominal losses in standby mode	Weight
8BVI0014HWDS.000-1	Evaluation ongoing	165 µF	0.19 A eff per 1000 m	10.3 W	Approx. 2.8 kg
8BVI0028HWDS.000-1	Evaluation ongoing	165 µF	0.38 A eff per 1000 m	10.3 W	Approx. 2.8 kg
8BVI0055HWDS.000-1	Evaluation ongoing	330 µF	0.76 A eff per 1000 m	10.3 W	Approx. 2.9 kg
8BVI0110HWDS.000-1	Evaluation ongoing	660 µF	1.51 A eff per 1000 m	11.5 W	Approx. 5.3 kg
8BVI0220HWDS.000-1	Evaluation ongoing	1320 µF	2.2 A eff per 1000 m	11.5 W	Approx. 5.7 kg
8BVI0014HWDS.000-3	Evaluation ongoing	165 µF	0.19 A eff per 1000 m	11.3 W	Approx. 2.8 kg
8BVI0028HWDS.000-3	Evaluation ongoing	165 µF	0.38 A eff per 1000 m	11.3 W	Approx. 2.8 kg
8BVI0055HWDS.000-3	Evaluation ongoing	330 µF	0.76 A eff per 1000 m	11.3 W	Approx. 2.9 kg
8BVI0110HWDS.000-3	In preparation	660 µF	1.51 A eff per 1000 m	12.5 W	Approx. 5.3 kg
8BVI0220HWDS.000-3	Evaluation ongoing	1320 µF	2.2 A eff per 1000 m	12.5 W	Approx. 5.7 kg
8BVI0055HWDS.000-4	In preparation	330 µF	0.76 A eff per 1000 m	11.3 W	Approx. 2.9 kg
8BVI0014HWDS.000-4	In preparation	165 µF	0.19 A eff per 1000 m	11.3 W	Approx. 2.8 kg
8BVI0028HWDS.000-4	In preparation	165 µF	0.38 A eff per 1000 m	11.3 W	Approx. 2.8 kg
8BVI0110HWDS.000-4	In preparation	660 µF	1.51 A eff per 1000 m	12.5 W	Approx. 5.3 kg
8BVI0220HWDS.000-4	In preparation	1320 µF	2.2 A eff per 1000 m	12.5 W	Approx. 5.7 kg

Common to all listed parts

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – Functional safety	Yes (openSAFETY)
Certifications – UL	cULus E225616; Power conversion equipment
Cooling and mounting type	Wall mounting
Voltage – Nominal	750 VDC
Variant	ACOPOSmulti backplane
Input voltage	25 VDC ±1.6%
