KR QUANTEC PA Parts

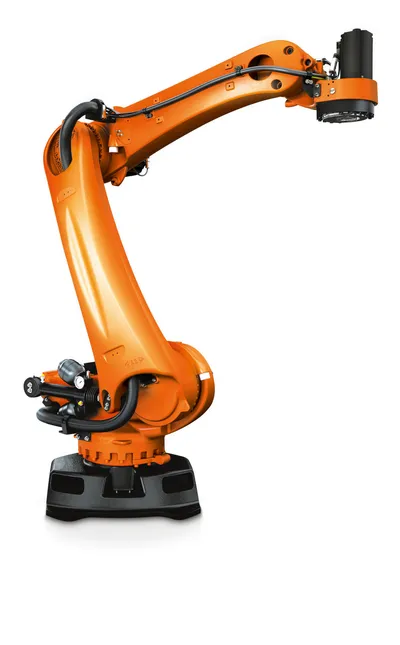

Kuka 153428 – KR 180 R3200 PA arctic

Kuka

KR 180 R3200 PA arctic

Kuka 214798

Kuka

Kuka 197328

Kuka

Kuka 197324

Kuka

Kuka 214799

Kuka

Kuka 214801

Kuka

Kuka 153429 – KR 240 R3200 PA arctic

Kuka

KR 240 R3200 PA arctic

Kuka 153427 – KR 120 R3200 PA arctic

Kuka

KR 120 R3200 PA arctic

Kuka 197325

Kuka

Compare KR QUANTEC PA

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Rated payload	Ambient temperature during operation	A1	A2	A3
153428	180 kg	-30 °C to 10 °C (243 K to 283 K)	105 °/s	107 °/s	114 °/s
214798	120 kg	0 °C to 55 °C (273 K to 328 K)	124 °/s	115 °/s	112 °/s
197328	240 kg	0 °C to 55 °C (273 K to 328 K)	105 °/s	101 °/s	107 °/s
197324	120 kg	0 °C to 55 °C (273 K to 328 K)	124 °/s	115 °/s	112 °/s
214799	180 kg	0 °C to 55 °C (273 K to 328 K)	105 °/s	107 °/s	114 °/s
214801	240 kg	0 °C to 55 °C (273 K to 328 K)	105 °/s	101 °/s	107 °/s
153429	240 kg	-30 °C to 10 °C (243 K to 283 K)	105 °/s	101 °/s	107 °/s
153427	120 kg	-30 °C to 10 °C (243 K to 283 K)	124 °/s	115 °/s	112 °/s
197325	180 kg	0 °C to 55 °C (273 K to 328 K)	105 °/s	107 °/s	114 °/s

Common to all listed parts

Maximum reach	3195 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.06 mm
Number of axes	5
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP65
Prot. rating, in-line wrist (IEC 60529)	IP65
A6	242 °/s
