Kuka

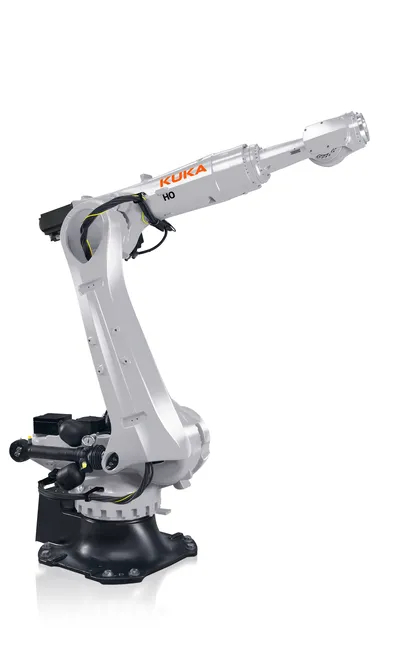

394146KR QUANTEC-2 Parts
Kuka
394148
Kuka
394149
Kuka
350226
Kuka
350236
Kuka
350239
Kuka
350231
Kuka
350233
Kuka
350217
Kuka
350220
Kuka
350223
Kuka
365334
Kuka
365340
Kuka
365341
Kuka
365337
Kuka
365330
Kuka
325858
Kuka
346490
Kuka
346518
Kuka
346515
Kuka
346489
Kuka
346487
Kuka
346491
Kuka
346488Compare KR QUANTEC-2
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum payload | Rated payload | Maximum reach | A3 | A4 |
|---|---|---|---|---|---|
| 394146 | 167 kg | 120 kg | 2701 mm | 120 °/s | 190 °/s |
| 394148 | 319 kg | 240 kg | 2900 mm | 100 °/s | 170 °/s |
| 394149 | 220 kg | 150 kg | 3100 mm | 114 °/s | 190 °/s |
| 350226 | 255 kg | 210 kg | 3065 mm | 100 °/s | 136 °/s |
| 350236 | 228 kg | 180 kg | 3505 mm | 110 °/s | 150 °/s |
| 350239 | 146 kg | 120 kg | 3904 mm | 110 °/s | 190 °/s |
| 350231 | 344 kg | 270 kg | 3105 mm | 110 °/s | 140 °/s |
| 350233 | 273 kg | 210 kg | 3305 mm | 110 °/s | 140 °/s |
| 350217 | 305 kg | 250 kg | 2671 mm | 107 °/s | 170 °/s |
| 350220 | 366 kg | 300 kg | 2671 mm | 107 °/s | 140 °/s |
| 350223 | 292 kg | 240 kg | 2865 mm | 100 °/s | 170 °/s |
| 365334 | 180 kg | 120 kg | 3505 mm | 114 °/s | 150 °/s |
| 365340 | 273 kg | 210 kg | 3305 mm | 110 °/s | 140 °/s |
| 365341 | 228 kg | 180 kg | 3505 mm | 110 °/s | 150 °/s |
| 365337 | 344 kg | 270 kg | 3105 mm | 110 °/s | 140 °/s |
| 365330 | 180 kg | 120 kg | 3505 mm | 114 °/s | 150 °/s |
| 325858 | 275 kg | 210 kg | 2701 mm | 112 °/s | 179 °/s |
| 346490 | 281 kg | 210 kg | 3100 mm | 100 °/s | 136 °/s |
| 346518 | 167 kg | 120 kg | 2701 mm | 120 °/s | 190 °/s |
| 346515 | 220 kg | 150 kg | 3100 mm | 114 °/s | 190 °/s |
| 346489 | 315 kg | 250 kg | 2701 mm | 107 °/s | 170 °/s |
| 346487 | 370 kg | 300 kg | 2701 mm | 107 °/s | 140 °/s |
| 346491 | 253 kg | 180 kg | 2900 mm | 114 °/s | 179 °/s |
| 346488 | 319 kg | 240 kg | 2900 mm | 100 °/s | 170 °/s |
Common to all listed parts
| Pose repeatability (ISO 9283) | 0.05 mm |
| Number of axes | 6 |
| Ambient temperature during stor./transp. | -40 °C to 60 °C (233 K to 333 K) |
| Prot. rating, in-line wrist (IEC 60529) | IP65 / IP67 |
