Char-Lynn motors Parts

Showing 25–48 of 77 parts

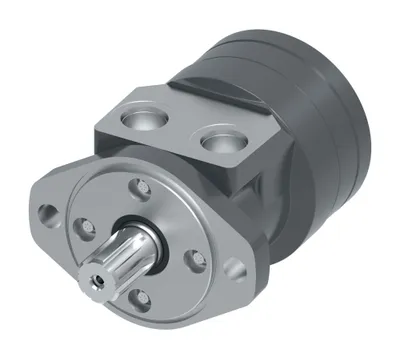

Danfoss 103-3261-012 – MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088AA02AA0100070000000AA00M
Danfoss
103-3261-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088AA02AA0100070000000AA00M

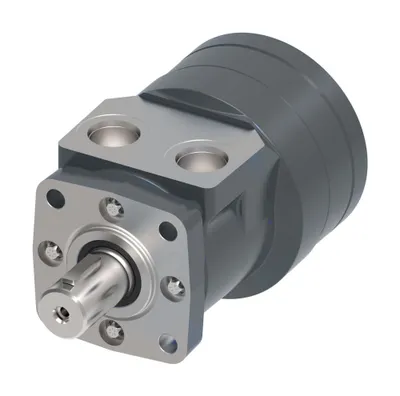

Danfoss 103-3154-012 – MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA01AA0100030000000AA00M
Danfoss
103-3154-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA01AA0100030000000AA00M

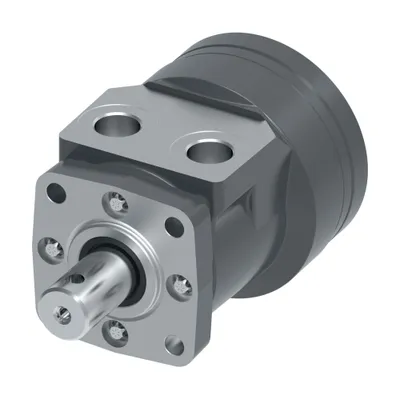

Danfoss 103-2701-012 – MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036BA08AB0000000000000AA00M
Danfoss
103-2701-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036BA08AB0000000000000AA00M

Danfoss 103-2690-012 – MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA02AB0100000000AB0AA00M
Danfoss
103-2690-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA02AB0100000000AB0AA00M

Danfoss 103-2407-012 – MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA01AB0100000000AB0AA00M
Danfoss
103-2407-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA01AB0100000000AB0AA00M

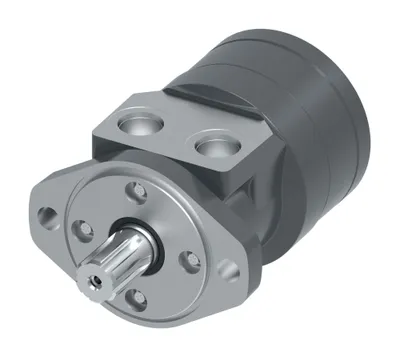

Danfoss 103-2086-012 – MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA02AA0100000000000AA00M
Danfoss
103-2086-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA02AA0100000000000AA00M

Danfoss 103-2085-012 – MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114AA02AA0100000000000AA00M
Danfoss
103-2085-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114AA02AA0100000000000AA00M

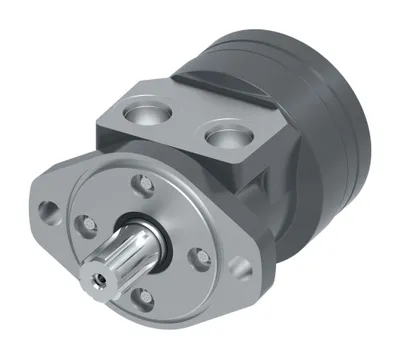

Danfoss 103-2082-012 – MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA02AA0100000000000AA00M
Danfoss
103-2082-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA02AA0100000000000AA00M

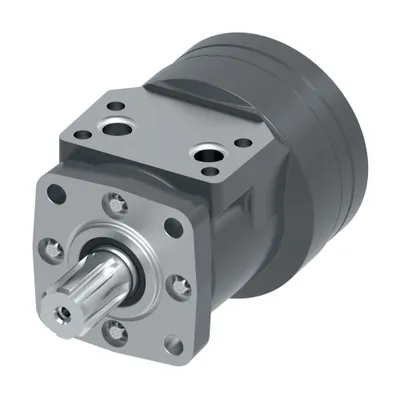

Danfoss 103-2066-012 – MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA02AC0100000000000AA00M
Danfoss
103-2066-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA02AC0100000000000AA00M

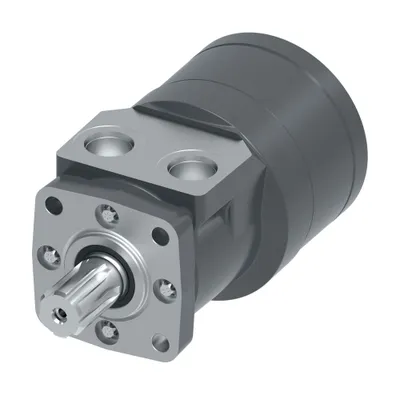

Danfoss 103-2063-012 – MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA02AA0100000000000AA00M
Danfoss
103-2063-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA02AA0100000000000AA00M

Danfoss 103-2039-012 – MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA01AA0100000000000AA00M
Danfoss
103-2039-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA01AA0100000000000AA00M

Danfoss 103-2038-012 – MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA01AA0100000000000AA00M
Danfoss
103-2038-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA01AA0100000000000AA00M

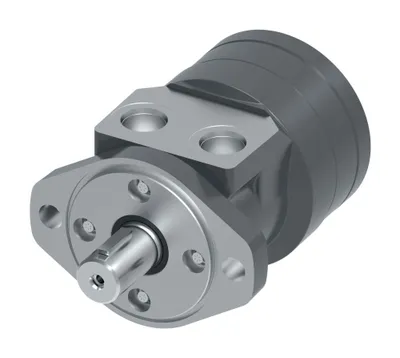

Danfoss 103-2036-012 – MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA01AA0100000000000AA00M
Danfoss
103-2036-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA01AA0100000000000AA00M

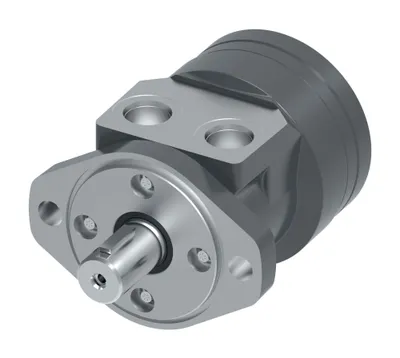

Danfoss 103-2034-012 – MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA01AA0100000000000AA00M
Danfoss
103-2034-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA01AA0100000000000AA00M

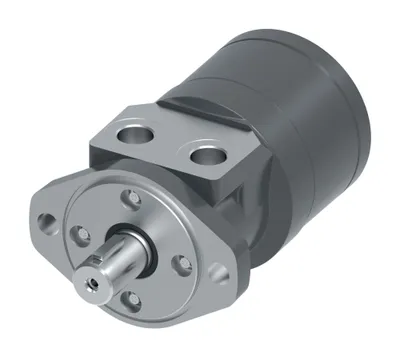

Danfoss 103-2032-012 – MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AB0100000000000AA00M
Danfoss
103-2032-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AB0100000000000AA00M

Danfoss 103-2031-012 – MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA01AB0100000000000AA00M
Danfoss
103-2031-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA01AB0100000000000AA00M

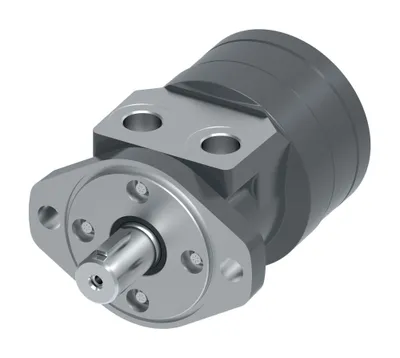

Danfoss 103-2029-012 – MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114AA01AB0100000000000AA00M
Danfoss
103-2029-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114AA01AB0100000000000AA00M

Danfoss 103-2027-012 – MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA01AB0100000000000AA00M
Danfoss
103-2027-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA01AB0100000000000AA00M

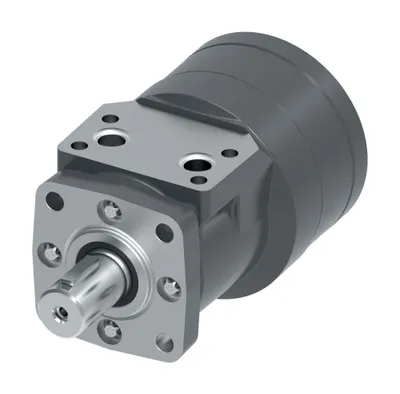

Danfoss 103-2022-012 – MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137BA01AC0100000000000AA00M
Danfoss
103-2022-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137BA01AC0100000000000AA00M

Danfoss 103-2018-012 – MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA01AC0100000000000AA00M
Danfoss
103-2018-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA01AC0100000000000AA00M

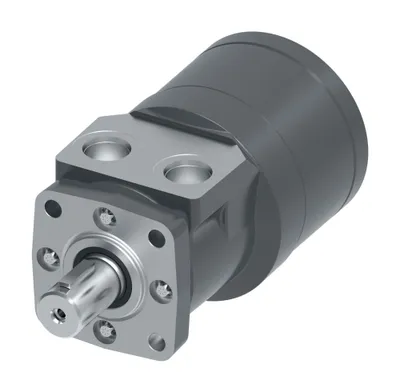

Danfoss 103-2016-012 – MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA01AA0100000000000AA00M
Danfoss
103-2016-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA01AA0100000000000AA00M

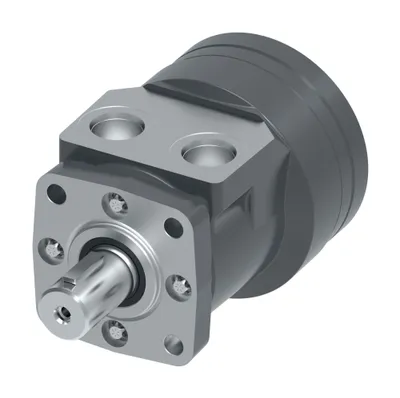

Danfoss 103-2010-012 – MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA01AA0100000000000AA00M
Danfoss
103-2010-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA01AA0100000000000AA00M

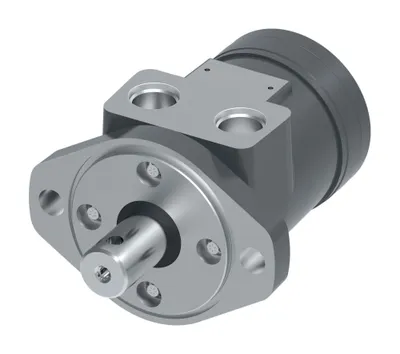

Danfoss 101-1800-009 – MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA07AA0000000000000AA00J
Danfoss
101-1800-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA07AA0000000000000AA00J

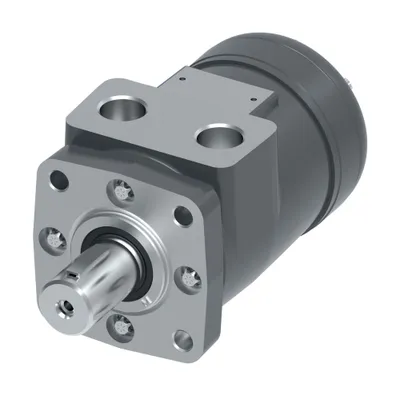

Danfoss 101-1794-009 – MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073FA24AF0200000000000AA00J
Danfoss
101-1794-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073FA24AF0200000000000AA00J

Compare Char-Lynn motors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNModel CodeMotor sizeGeometric displacement [cm3/r [in3/r]]Main port thread typeMain port dimension
103-3261-012MS0088AA02AA0100070000000AA00M145144 [8.8]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
103-3154-012MS0101BA01AA0100030000000AA00M165165 [10.1]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
103-2701-012MS0036BA08AB0000000000000AA00M6058 [3.6 ]NPT / NPTF1/2 - 14 NPTF
103-2690-012MS0101AA02AB0100000000AB0AA00M165165 [10.1]NPT / NPTF1/2 - 14 NPTF
103-2407-012MS0182BA01AB0100000000AB0AA00M300299 [18.2]NPT / NPTF1/2 - 14 NPTF
103-2086-012MS0137AA02AA0100000000000AA00M225224 [13.7]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
103-2085-012MS0114AA02AA0100000000000AA00M185186 [11.4]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
103-2082-012MS0046AA02AA0100000000000AA00M7576 [4.6 ]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
103-2066-012MS0046BA02AC0100000000000AA00M7576 [4.6 ]Manifold4 x 5/16 - 18 UNC-2B mounting threads
103-2063-012MS0182BA02AA0100000000000AA00M300299 [18.2]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
103-2039-012MS0182AA01AA0100000000000AA00M300299 [18.2]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
103-2038-012MS0137AA01AA0100000000000AA00M225224 [13.7]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
103-2036-012MS0101AA01AA0100000000000AA00M165165 [10.1]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
103-2034-012MS0046AA01AA0100000000000AA00M7576 [4.6 ]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
103-2032-012MS0227AA01AB0100000000000AA00M370371 [22.7]NPT / NPTF1/2 - 14 NPTF
103-2031-012MS0182AA01AB0100000000000AA00M300299 [18.2]NPT / NPTF1/2 - 14 NPTF
103-2029-012MS0114AA01AB0100000000000AA00M185186 [11.4]NPT / NPTF1/2 - 14 NPTF
103-2027-012MS0057AA01AB0100000000000AA00M9593 [5.7 ]NPT / NPTF1/2 - 14 NPTF
103-2022-012MS0137BA01AC0100000000000AA00M225224 [13.7]Manifold4 x 5/16 - 18 UNC-2B mounting threads
103-2018-012MS0046BA01AC0100000000000AA00M7576 [4.6 ]Manifold4 x 5/16 - 18 UNC-2B mounting threads
103-2016-012MS0227BA01AA0100000000000AA00M370371 [22.7]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
103-2010-012MS0046BA01AA0100000000000AA00M7576 [4.6 ]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
101-1800-009MH0059AA07AA0000000000000AA00J9596 [5.9]UN / UNF7/8 - 14 UNF-2B SAE O-Ring port
101-1794-009MH0073FA24AF0200000000000AA00J120120 [7.3]BSPG 1/2

Common to all listed parts

Valve systemSpool valve
Motor typeStandard
Main port styleSideport - aligned
Brake Release Port Dimensionn/a
PaintedYes
Paint informationPrimer, Black, Low gloss
Special Features AssemblyStandard
Dust sealStandard
