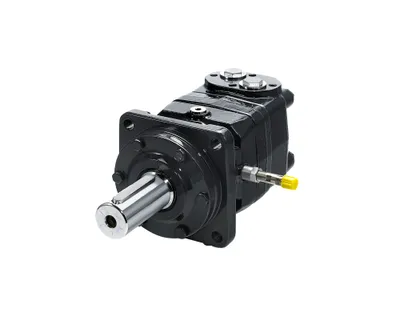

Danfoss orbital motor quick selector Parts
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor size | Geometric displacement [cm3/r [in3/r]] | Shaft type |
|---|---|---|---|
| 151B4010 | 315 | 326.3 [19.91] | Splined |
| 151B4009 | 250 | 251.8 [15.36] | Splined |
| 151B4008 | 200 | 201.4 [12.29] | Splined |
| 151B4005 | 500 | 523.6 [31.95] | Straight |
| 151B4004 | 400 | 410.9 [25.07] | Straight |
| 151B4002 | 250 | 251.8 [15.36] | Straight |
| 151B4001 | 200 | 201.4 [12.29] | Straight |
| 151B4000 | 160 | 161.1 [9.83] | Straight |
Common to all listed parts
| Motor Series | OMT Series |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Motor type | Motor - Brake |
| Motor function | Brake - Low release pressure |
| Mounting flange type | 4 Bolt - Square |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 125.0 x 12.0, 160.0, 14.0 [4.92 x 0.47, 6.30, 0.55] |
| Main port thread type | BSP |
