Danfoss orbital motor quick selector Parts

Danfoss

184-0148-002

MOTOR-ORBITAL,DELTA SERIES 200 [12.1], MDL121AB02AC0B0000001AJ00B

Danfoss

184-0146-002

MOTOR-ORBITAL,DELTA SERIES 200 [12.1], MDL121AB02AC0B0000000AB00B

Danfoss

184-0137-002

MOTOR-ORBITAL,DELTA SERIES 470 [28.7], MDL287AA01AA000000000AB00B

Danfoss

184-0131-002

MOTOR-ORBITAL,DELTA SERIES 470 [28.7], MDL287AB07AA000000000AB00B

Danfoss

184-0130-002

MOTOR-ORBITAL,DELTA SERIES 300 [18.3], MDL183AB07AA000000000AB00B

Danfoss

184-0127-002-JN

MDL212AA12AA0E0000000AB00B USE 184

Danfoss

184-0127-002

MOTOR-ORBITAL,DELTA SERIES 345 [21.2], MDL212AA12AA0E0000000AB00B

Danfoss

184-0122-002

MOTOR-ORBITAL,DELTA SERIES 250 [15.4], MDL154AA02AA000000000AB00B

Danfoss

184-0117-002

MOTOR-ORBITAL,DELTA SERIES 300 [18.3], MDL183AB07AA000000000AA00B

Danfoss

184-0097-002

MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AB07AA000000000AB00B

Danfoss

184-0096-002

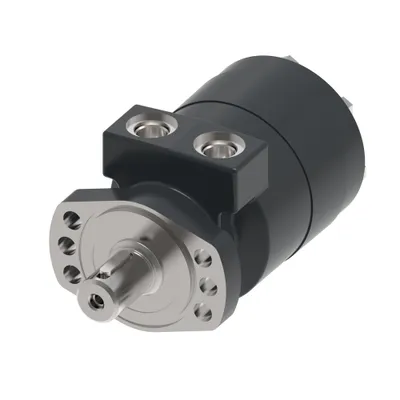

MOTOR-ORBITAL,DELTA SERIES 345 [21.2], MDL212AB07AA000000000AB00B

Danfoss

184-0095-002

MOTOR-ORBITAL,DELTA SERIES 250 [15.4], MDL154AB07AA000000000AB00B

Danfoss

184-0094-002

Delta Motor Black Paint, MDL143AB07AA000000000AB00B

Danfoss

184-0087-002

MOTOR-ORBITAL,DELTA SERIES 300 [18.3], MDL183AA07AA000000000AA00B

Danfoss

184-0086-002

MOTOR-ORBITAL,DELTA SERIES 300 [18.3], MDL183AB04AA000000000AA00B

Danfoss

184-0085-002

MOTOR-ORBITAL,DELTA SERIES 540 [33.1], MDL331AB10AA000000000AB00B

Danfoss

184-0066-002

MOTOR-ORBITAL,DELTA SERIES 235 [14.3], MDL143AA02AA000000000AB00B

Danfoss

184-0065-002

MOTOR-ORBITAL,DELTA SERIES 755 [46.0], MDL460AB07AA0C0000000AB00B

Danfoss

184-0027-002

MOTOR-ORBITAL,DELTA SERIES 200 [12.1], MDL121AA02AA000000001AA00B

Danfoss

184-0004-002

MOTOR-ORBITAL,DELTA SERIES 300 [18.3], MDL183AA02AA000000000AA00B

Danfoss

184-0002-002

MOTOR-ORBITAL,DELTA SERIES 200 [12.1], MDL121AA02AA000000000AA00B

Danfoss

183JM00191A

MOTOR-ORBITAL,H SERIES 50 [3.0]

Danfoss

183JM00186A

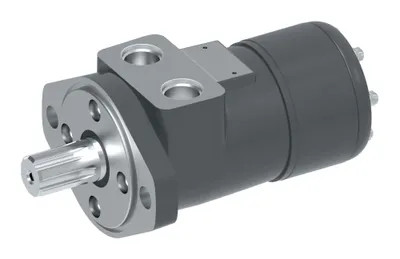

MOTOR-ORBITAL,H SERIES 40 [2.4]

Danfoss

183JM00185A

MOTOR-ORBITAL,H SERIES 70 [4.2]

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Paint information
184-0148-002	MDL121AB02AC0B0000001AJ00B	200	198 [12.1]	Square key, 5/16 x 1 inch	Primer, Grey
184-0146-002	MDL121AB02AC0B0000000AB00B	200	198 [12.1]	Square key, 5/16 x 1 inch	Primer, Black, Low gloss
184-0137-002	MDL287AA01AA000000000AB00B	470	470 [28.7]	Square key, 3/8 x 1 1/2 inch	Primer, Black, Low gloss
184-0131-002	MDL287AB07AA000000000AB00B	470	470 [28.7]	Rectangular key, 8 x 7 x 32 mm	Primer, Black, Low gloss
184-0130-002	MDL183AB07AA000000000AB00B	300	300 [18.3]	Rectangular key, 8 x 7 x 32 mm	Primer, Black, Low gloss
184-0127-002	MDL212AA12AA0E0000000AB00B	345	347 [21.2]	Square key, 6 x 20 mm	Primer, Black, Low gloss
184-0122-002	MDL154AA02AA000000000AB00B	250	252 [15.4]	Square key, 5/16 x 1 inch	Primer, Black, Low gloss
184-0117-002	MDL183AB07AA000000000AA00B	300	300 [18.3]	Rectangular key, 8 x 7 x 32 mm	n/a
184-0097-002	MDL241AB07AA000000000AB00B	395	395 [24.1]	Rectangular key, 8 x 7 x 32 mm	Primer, Black, Low gloss
184-0096-002	MDL212AB07AA000000000AB00B	345	347 [21.2]	Rectangular key, 8 x 7 x 32 mm	Primer, Black, Low gloss
184-0095-002	MDL154AB07AA000000000AB00B	250	252 [15.4]	Rectangular key, 8 x 7 x 32 mm	Primer, Black, Low gloss
184-0094-002	MDL143AB07AA000000000AB00B	235	234 [14.3]	Rectangular key, 8 x 7 x 32 mm	Primer, Black, Low gloss
184-0087-002	MDL183AA07AA000000000AA00B	300	300 [18.3]	Rectangular key, 8 x 7 x 32 mm	n/a
184-0086-002	MDL183AB04AA000000000AA00B	300	300 [18.3]	n/a	n/a
184-0085-002	MDL331AB10AA000000000AB00B	540	542 [33.1]	Rectangular key, 8 x 7 x 32 mm	Primer, Black, Low gloss
184-0066-002	MDL143AA02AA000000000AB00B	235	234 [14.3]	Square key, 5/16 x 1 inch	Primer, Black, Low gloss
184-0065-002	MDL460AB07AA0C0000000AB00B	755	754 [46.0]	Rectangular key, 8 x 7 x 32 mm	Primer, Black, Low gloss
184-0027-002	MDL121AA02AA000000001AA00B	200	198 [12.1]	Square key, 5/16 x 1 inch	n/a
184-0004-002	MDL183AA02AA000000000AA00B	300	300 [18.3]	Square key, 5/16 x 1 inch	n/a
184-0002-002	MDL121AA02AA000000000AA00B	200	198 [12.1]	Square key, 5/16 x 1 inch	n/a

Common to all listed parts

Motor Series	Delta Series
Valve system	Disc valve on the output shaft
Orbital gearwheel set type	Geroler
Motor function	Standard
Main port style	Sideport - aligned
Drain Port Dimension	None
Brake Release Port Dimension	n/a
Dust seal	Standard
