Danfoss orbital motor quick selector Parts

Danfoss

184JM00768A

MOTOR-ORBITAL,S SERIES 60 [3.6]

Danfoss

184JM00764A

MOTOR-ORBITAL,S SERIES 185 [11.3]

Danfoss

184JM00490A

MOTOR-ORBITAL,S SERIES 220 [13.4]

Danfoss

184JM00437A

MOTOR-ORBITAL,S SERIES 70 [4.2]

Danfoss

184-0656-002

MOTOR-ORBITAL,DELTA SERIES 650 [39.6], MDL396AB04AA0C0000001AB00B, MDL396AB04AA0C0000001AB00B

Danfoss

184-0631-002

MOTOR-ORBITAL,DELTA SERIES 250 [15.4], MDL154AA02AA000010000AB00B

Danfoss

184-0628-002

MOTOR-ORBITAL,DELTA SERIES 200 [12.1], MDL121AB07AC000010000AB00B

Danfoss

184-0626-002

MOTOR-ORBITAL,DELTA SERIES 345 [21.2], MDL212AA02AA0C4010000AB00B

Danfoss

184-0625-002

MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AA02AC0D0010000AB00B

Danfoss

184-0619-002

MOTOR-ORBITAL,DELTA SERIES 540 [33.1], MDL331AA01AA0C0030000AB00B, MDL331AA01AA0C0030000AB00B

Danfoss

184-0613-002

MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AA02AA0C0030001AQ00B, MDL241AA02AA0C0030001AQ00B

Danfoss

184-0612-002

MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AA02AA0C0030000AF00B, MDL241AA02AA0C0030000AF00B

Danfoss

184-0611-002

MOTOR-ORBITAL,DELTA SERIES 470 [28.7], MDL287AB04AA0C0010000AB00B

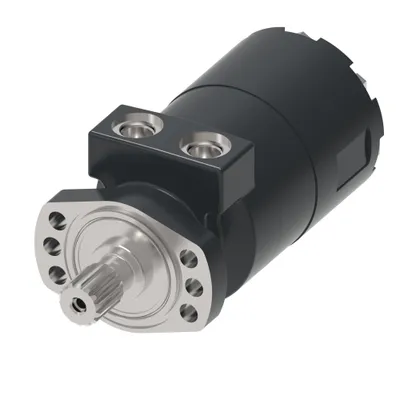

Danfoss

184-0608-002

MOTOR-ORBITAL,DELTA SERIES 345 [21.2], MDL212AA04AA0C0010001AA00B

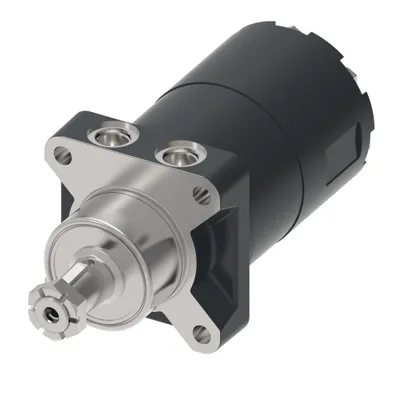

Danfoss

184-0607-002

MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AA04AA0C0030001AA00B, MDL241AA04AA0C0030001AA00B

Danfoss

184-0606-002

MOTOR-ORBITAL,DELTA SERIES 470 [28.7], MDL287AA02AA0C4030000AB09B, MDL287AA02AA0C4030000AB09B

Danfoss

184-0600-002

MOTOR-ORBITAL,DELTA SERIES 145 [8.9], MDL089AB07AC000000000AB00B

Danfoss

184-0598-002

MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AA02AC0C0010001AA00B

Danfoss

184-0597-002

MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AA02AC0C0010000AA00B

Danfoss

184-0593-002

MOTOR-ORBITAL,DELTA SERIES 470 [28.7], MDL287AA02AA0C0030000AB00B, MDL287AA02AA0C0030000AB00B

Danfoss

184-0592-002

MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AA02AA0C0010000AB00B

Danfoss

184-0590-002

MOTOR-ORBITAL,DELTA SERIES 345 [21.2], MDL212AA02AA0C0010000AA00B

Danfoss

184-0585-002

MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AA02AA0C0030000AA00B, MDL241AA02AA0C0030000AA00B

Danfoss

184-0584-002

MOTOR-ORBITAL,DELTA SERIES 395 [24.1], MDL241AA02AA0CA030001AA00B, MDL241AA02AA0CA030001AA00B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Paint information
184-0656-002	MDL396AB04AA0C0000001AB00B	650	649 [39.6]	n/a	Primer, Black, Low gloss
184-0631-002	MDL154AA02AA000010000AB00B	250	252 [15.4]	Square key, 5/16 x 1 inch	Primer, Black, Low gloss
184-0628-002	MDL121AB07AC000010000AB00B	200	198 [12.1]	Rectangular key, 8 x 7 x 32 mm	Primer, Black, Low gloss
184-0626-002	MDL212AA02AA0C4010000AB00B	345	347 [21.2]	Square key, 5/16 x 1 inch	Primer, Black, Low gloss
184-0625-002	MDL241AA02AC0D0010000AB00B	395	395 [24.1]	Square key, 5/16 x 1 inch	Primer, Black, Low gloss
184-0619-002	MDL331AA01AA0C0030000AB00B	540	542 [33.1]	Square key, 3/8 x 1 1/2 inch	Primer, Black, Low gloss
184-0613-002	MDL241AA02AA0C0030001AQ00B	395	395 [24.1]	Square key, 5/16 x 1 inch	Primer, Grey
184-0612-002	MDL241AA02AA0C0030000AF00B	395	395 [24.1]	Square key, 5/16 x 1 inch	Primer, Black, Low gloss
184-0611-002	MDL287AB04AA0C0010000AB00B	470	470 [28.7]	n/a	Primer, Black, Low gloss
184-0608-002	MDL212AA04AA0C0010001AA00B	345	347 [21.2]	n/a	n/a
184-0607-002	MDL241AA04AA0C0030001AA00B	395	395 [24.1]	n/a	n/a
184-0606-002	MDL287AA02AA0C4030000AB09B	470	470 [28.7]	Square key, 5/16 x 1 inch	Primer, Black, Low gloss
184-0600-002	MDL089AB07AC000000000AB00B	145	146 [8.9]	Rectangular key, 8 x 7 x 32 mm	Primer, Black, Low gloss
184-0598-002	MDL241AA02AC0C0010001AA00B	395	395 [24.1]	Square key, 5/16 x 1 inch	n/a
184-0597-002	MDL241AA02AC0C0010000AA00B	395	395 [24.1]	Square key, 5/16 x 1 inch	n/a
184-0593-002	MDL287AA02AA0C0030000AB00B	470	470 [28.7]	Square key, 5/16 x 1 inch	Primer, Black, Low gloss
184-0592-002	MDL241AA02AA0C0010000AB00B	395	395 [24.1]	Square key, 5/16 x 1 inch	Primer, Black, Low gloss
184-0590-002	MDL212AA02AA0C0010000AA00B	345	347 [21.2]	Square key, 5/16 x 1 inch	n/a
184-0585-002	MDL241AA02AA0C0030000AA00B	395	395 [24.1]	Square key, 5/16 x 1 inch	n/a
184-0584-002	MDL241AA02AA0CA030001AA00B	395	395 [24.1]	Square key, 5/16 x 1 inch	n/a

Common to all listed parts

Motor Series	Delta Series
Valve system	Disc valve on the output shaft
Orbital gearwheel set type	Geroler
Main port style	Sideport - aligned
Drain Port Dimension	None
Shaft Seal	NBR - Standard
Front bearing type	Needle roller bearing
Rear bearing type	Needle roller bearing
