Danfoss orbital motor quick selector Parts

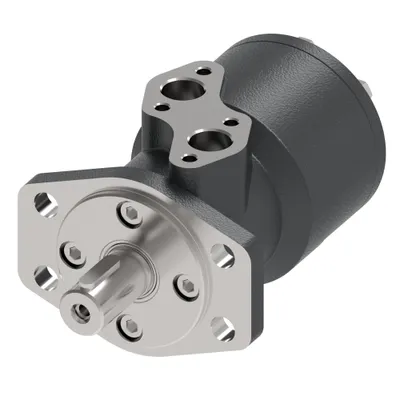

Danfoss

036-0420-002

MOTOR-ORBITAL,XLS SERIES 100 [6.2], MCS100AQ26AA110020A000C00B

Danfoss

036-0419-002

MOTOR-ORBITAL,XLS SERIES 80 [4.9], MCS080AQ26AA110020A000C00B

Danfoss

036-0418-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AQ26AA110020A000C00B

Danfoss

036-0416-002

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AA04AA111000A000B00B

Danfoss

036-0415-002

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AB01AA110000A000G00B

Danfoss

036-0414-002

MOTOR-ORBITAL,XLS SERIES 100 [6.2], MCS100AB01AA110000A000G00B

Danfoss

036-0413-002

MOTOR-ORBITAL,XLS SERIES 80 [4.9], MCS080AB01AA010000A000G00B

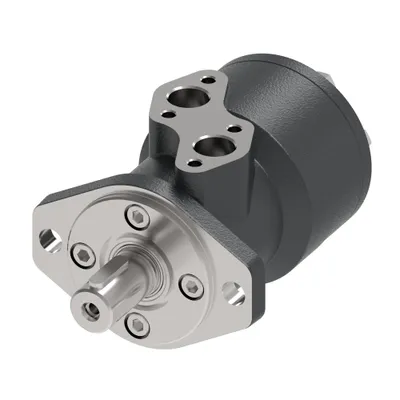

Danfoss

036-0412-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AB01AA010000A000G00B

Danfoss

036-0411-002

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AA02AA110020A000G00B

Danfoss

036-0410-002

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AA03AA010020A000B00B

Danfoss

036-0409-002

MOTOR-ORBITAL,XLS SERIES 80 [4.9], MCS080AA03AA010020A000B00B

Danfoss

036-0408-002

MOTOR-ORBITAL,XLS SERIES 305 [18.7], MCS305AA02AA110020A000D00B

Danfoss

036-0407-002

MOTOR-ORBITAL,XLS SERIES 245 [14.9], MCS245AA02AA110020A000D00B

Danfoss

036-0406-002

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AA02AA110020A000D00B

Danfoss

036-0404-002

MOTOR-ORBITAL,XLS SERIES 395 [24.0], MCS395AA02AA110020A000G00B

Danfoss

036-0402-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AA02AA110023A000B00B

Danfoss

036-0401-002

MOTOR-ORBITAL,XLS SERIES 195 [11.9], MCS195AQ26AA010000A000B00B

Danfoss

036-0400-002

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AQ26AA010000A000B00B

Danfoss

036-0399-002

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AA03AE010000A000C00B

Danfoss

036-0398-002

MOTOR-ORBITAL,XLS SERIES 305 [18.7], MCS305AB01AA110000A000COOB

Danfoss

036-0397-002

MOTOR-ORBITAL,XLS SERIES 195 [11.9], MCS195AA04AA110020A000B00B

Danfoss

036-0396-002

MOTOR-ORBITAL,XLS SERIES 395 [24.0], MCS395AC05AE310000A000C09B

Danfoss

036-0395-002

MOTOR-ORBITAL,XLS SERIES 245 [14.9], MCS245AC05AE310000A000C09B

Danfoss

036-0394-002

MOTOR-ORBITAL,XLS SERIES 305 [18.7], MCS305AD05AE310000A000C09B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Paint information
036-0420-002	MCS100AQ26AA110020A000C00B	100	101.3 [6.18]	Rectangular key, A10 x 8 x 45 mm	Painted, Black
036-0419-002	MCS080AQ26AA110020A000C00B	80	80.1 [4.89]	Rectangular key, A10 x 8 x 45 mm	Painted, Black
036-0418-002	MCS050AQ26AA110020A000C00B	50	50.4 [3.08]	Rectangular key, A10 x 8 x 45 mm	Painted, Black
036-0416-002	MCS160AA04AA111000A000B00B	160	157.7 [9.62]	n/a	Painted, Blue
036-0415-002	MCS160AB01AA110000A000G00B	160	157.7 [9.62]	Rectangular key, A8 x 7 x 32 mm	Painted, Grey - Spec. Component
036-0414-002	MCS100AB01AA110000A000G00B	100	101.3 [6.18]	Rectangular key, A8 x 7 x 32 mm	Painted, Grey - Spec. Component
036-0413-002	MCS080AB01AA010000A000G00B	80	80.1 [4.89]	Rectangular key, A8 x 7 x 32 mm	Painted, Grey - Spec. Component
036-0412-002	MCS050AB01AA010000A000G00B	50	50.4 [3.08]	Rectangular key, A8 x 7 x 32 mm	Painted, Grey - Spec. Component
036-0411-002	MCS160AA02AA110020A000G00B	160	157.7 [9.62]	Rectangular key, A8 x 7 x 32 mm	Painted, Grey - Spec. Component
036-0410-002	MCS160AA03AA010020A000B00B	160	157.7 [9.62]	Square key, 1/4 x 1 1/4 inch	Painted, Blue
036-0409-002	MCS080AA03AA010020A000B00B	80	80.1 [4.89]	Square key, 1/4 x 1 1/4 inch	Painted, Blue
036-0408-002	MCS305AA02AA110020A000D00B	305	305.7 [18.65]	Rectangular key, A8 x 7 x 32 mm	Painted, Black - Spec. Component
036-0407-002	MCS245AA02AA110020A000D00B	245	243.9 [14.88]	Rectangular key, A8 x 7 x 32 mm	Painted, Black - Spec. Component
036-0406-002	MCS160AA02AA110020A000D00B	160	157.7 [9.62]	Rectangular key, A8 x 7 x 32 mm	Painted, Black - Spec. Component
036-0404-002	MCS395AA02AA110020A000G00B	395	393.0 [23.98]	Rectangular key, A8 x 7 x 32 mm	Painted, Grey - Spec. Component
036-0402-002	MCS050AA02AA110023A000B00B	50	50.4 [3.08]	Rectangular key, A8 x 7 x 32 mm	Painted, Blue
036-0401-002	MCS195AQ26AA010000A000B00B	195	194.5 [11.87]	Rectangular key, A10 x 8 x 45 mm	Painted, Blue
036-0400-002	MCS160AQ26AA010000A000B00B	160	157.7 [9.62]	Rectangular key, A10 x 8 x 45 mm	Painted, Blue
036-0399-002	MCS160AA03AE010000A000C00B	160	157.7 [9.62]	Square key, 1/4 x 1 1/4 inch	Painted, Black
036-0398-002	MCS305AB01AA110000A000COOB	305	305.7 [18.65]	Rectangular key, A8 x 7 x 32 mm	Painted, Black
036-0397-002	MCS195AA04AA110020A000B00B	195	194.5 [11.87]	n/a	Painted, Blue
036-0396-002	MCS395AC05AE310000A000C09B	395	393.0 [23.98]	Square key, 1/4 x 1 1/4 inch	Painted, Black
036-0395-002	MCS245AC05AE310000A000C09B	245	243.9 [14.88]	Square key, 1/4 x 1 1/4 inch	Painted, Black
036-0394-002	MCS305AD05AE310000A000C09B	305	305.7 [18.65]	Square key, 1/4 x 1 1/4 inch	Painted, Black

Common to all listed parts

Motor Series	XLS Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Painted	Yes
