Danfoss orbital motor quick selector Parts

Danfoss

101-1020-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA01AC0000000000000AJ00J

Danfoss

101-1019-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA01AC0000000000000AA00J

Danfoss

101-1018-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA01AC0000000000000AA00J

Danfoss

101-1017-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA01AC0000000000000AA00J

Danfoss

101-1016-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226BA01AA0000000000000AA00J

Danfoss

101-1015-009

H MOTOR, MH0179BA01AA0000000000000AJ00J

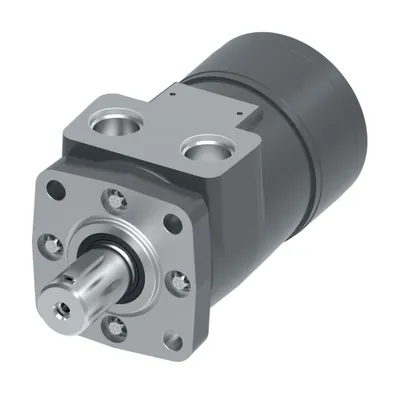

Danfoss

101-1014-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141BA01AA0000000000000AA00J

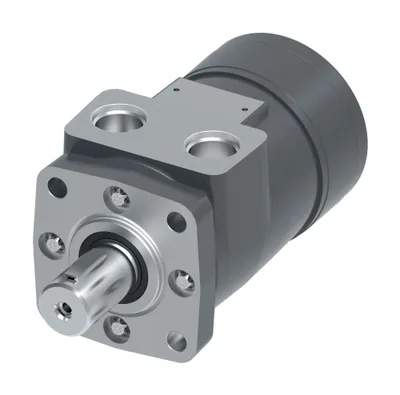

Danfoss

101-1013-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113BA01AA0000000000000AA00J

Danfoss

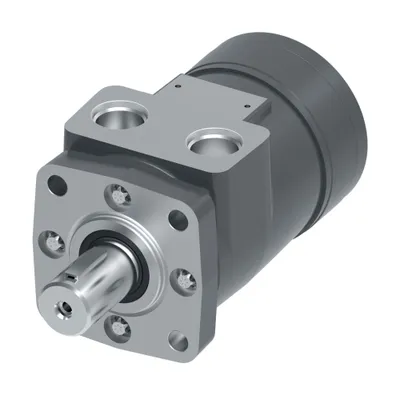

101-1012-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA01AA0000000000000AA00J

Danfoss

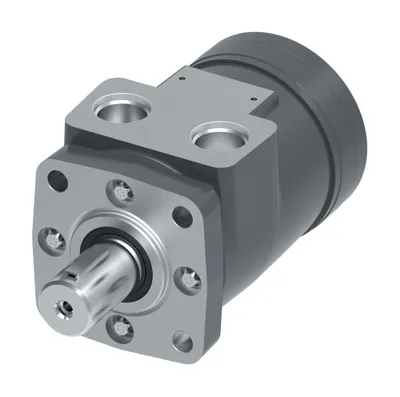

101-1011-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA01AA0000000000000AJ00J

Danfoss

101-1010-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA01AA0000000000000AA00J

Danfoss

101-1009-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA01AA0000000000000AA00J

Danfoss

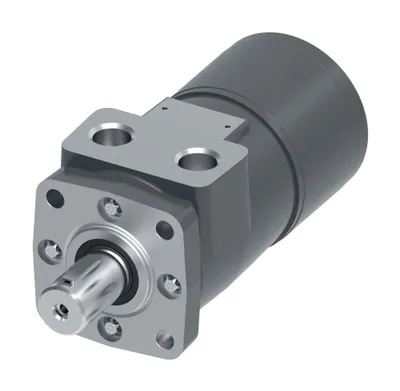

101-1008-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226BA01AB0000000000000AA00J

Danfoss

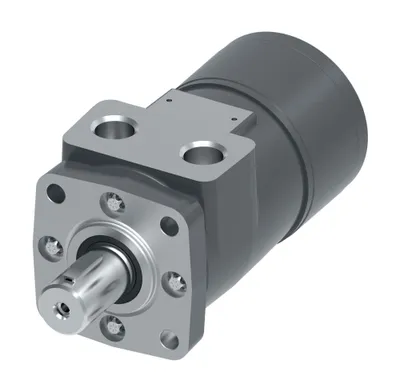

101-1007-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179BA01AB0000000000000AA00J

Danfoss

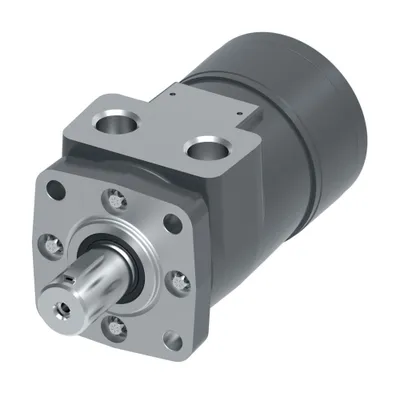

101-1006-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141BA01AB0000000000000AA00J

Danfoss

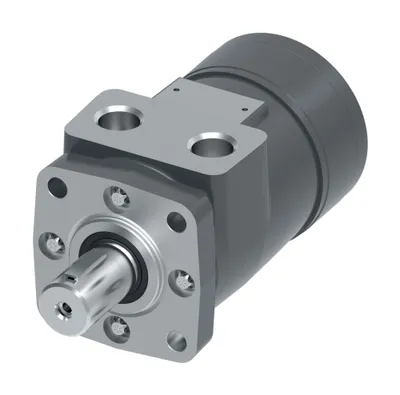

101-1005-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113BA01AB0000000000000AJ00J

Danfoss

101-1004-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA01AB0000000000000AJ00J

Danfoss

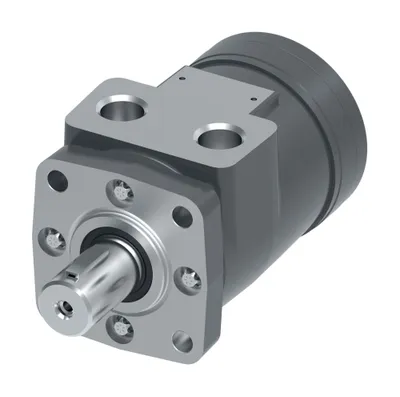

101-1003-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA01AB0000000000000AA00J

Danfoss

101-1002-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA01AB0000000000000AA00J

Danfoss

101-1001-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA01AB0000000000000AA00J

Danfoss

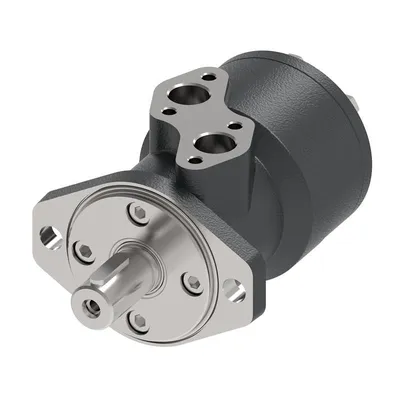

036-0542-002

MOTOR-ORBITAL,XLS SERIES 395 [24.0], MCS395AV04AA110020A000C00B

Danfoss

036-0534-002

MOTOR-ORBITAL,XLS SERIES 80 [4.9], MCS080AV02AA010020A000C00B

Danfoss

036-0533-002

MOTOR-ORBITAL,XLS SERIES 80 [4.9], MCS080AV02AA010020A000A00B

Danfoss

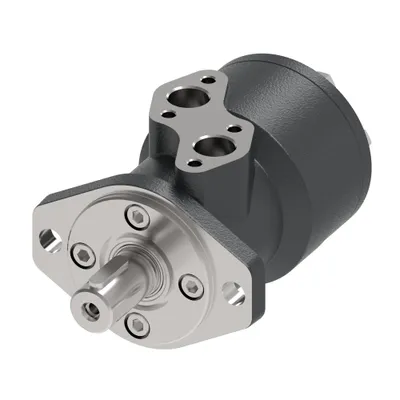

036-0532-003

MOTOR-ORBITAL,XLS SERIES 395 [24.0], MCS395AA10AA111000A000C00C

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Main port thread type
101-1020-009	MH0097BA01AC0000000000000AJ00J	160	159 [9.7]	Woodruff key	Manifold
101-1019-009	MH0059BA01AC0000000000000AA00J	95	96 [5.9]	Woodruff key	Manifold
101-1018-009	MH0045BA01AC0000000000000AA00J	75	74 [4.5]	Woodruff key	Manifold
101-1017-009	MH0028BA01AC0000000000000AA00J	45	46 [2.8]	Woodruff key	Manifold
101-1016-009	MH0226BA01AA0000000000000AA00J	370	370 [22.6]	Woodruff key	UN / UNF
101-1015-009	MH0179BA01AA0000000000000AJ00J	295	294 [17.9]	Woodruff key	UN / UNF
101-1014-009	MH0141BA01AA0000000000000AA00J	230	231 [14.1]	Woodruff key	UN / UNF
101-1013-009	MH0113BA01AA0000000000000AA00J	185	185 [11.3]	Woodruff key	UN / UNF
101-1012-009	MH0097BA01AA0000000000000AA00J	160	159 [9.7]	Woodruff key	UN / UNF
101-1011-009	MH0059BA01AA0000000000000AJ00J	95	96 [5.9]	Woodruff key	UN / UNF
101-1010-009	MH0045BA01AA0000000000000AA00J	75	74 [4.5]	Woodruff key	UN / UNF
101-1009-009	MH0028BA01AA0000000000000AA00J	45	46 [2.8]	Woodruff key	UN / UNF
101-1008-009	MH0226BA01AB0000000000000AA00J	370	370 [22.6]	Woodruff key	NPT / NPTF
101-1007-009	MH0179BA01AB0000000000000AA00J	295	294 [17.9]	Woodruff key	NPT / NPTF
101-1006-009	MH0141BA01AB0000000000000AA00J	230	231 [14.1]	Woodruff key	NPT / NPTF
101-1005-009	MH0113BA01AB0000000000000AJ00J	185	185 [11.3]	Woodruff key	NPT / NPTF
101-1004-009	MH0097BA01AB0000000000000AJ00J	160	159 [9.7]	Woodruff key	NPT / NPTF
101-1003-009	MH0059BA01AB0000000000000AA00J	95	96 [5.9]	Woodruff key	NPT / NPTF
101-1002-009	MH0045BA01AB0000000000000AA00J	75	74 [4.5]	Woodruff key	NPT / NPTF
101-1001-009	MH0028BA01AB0000000000000AA00J	45	46 [2.8]	Woodruff key	NPT / NPTF
036-0542-002	MCS395AV04AA110020A000C00B	395	393.0 [23.98]	n/a	BSP
036-0534-002	MCS080AV02AA010020A000C00B	80	80.1 [4.89]	Rectangular key, A8 x 7 x 32 mm	BSP
036-0533-002	MCS080AV02AA010020A000A00B	80	80.1 [4.89]	Rectangular key, A8 x 7 x 32 mm	BSP
036-0532-003	MCS395AA10AA111000A000C00C	395	393.0 [23.98]	Rectangular key, A8 x 7 x 32 mm	BSP

Common to all listed parts

Valve system	Spool valve
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Dust seal	Standard
Front bearing type	Journal bearing
Rear bearing type	Journal bearing
