Danfoss orbital motor quick selector Parts

Danfoss

101-1093-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113AA02AC0000000000000AA00J

Danfoss

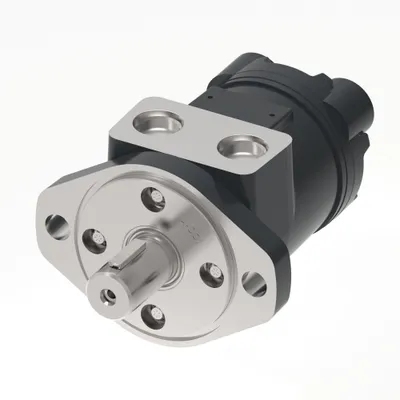

101-1092-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA02AC0000000000000AA00J

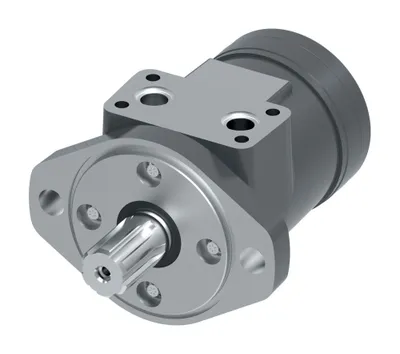

Danfoss

101-1091-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA02AC0000000000000AA00J

Danfoss

101-1090-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045AA02AC0000000000000AA00J

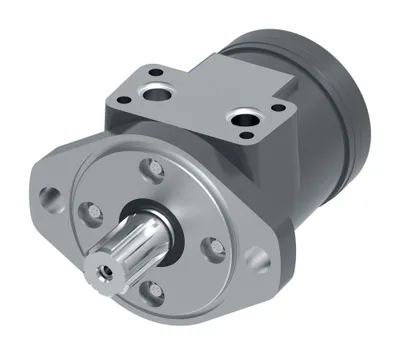

Danfoss

101-1089-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA02AC0000000000000AA00J

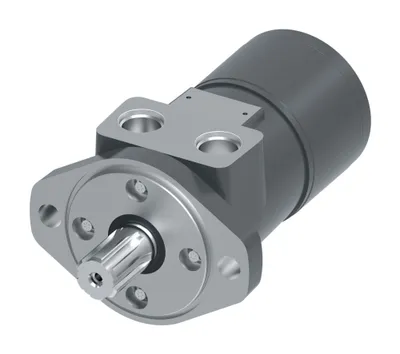

Danfoss

101-1088-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226AA02AA0000000000000AA00J

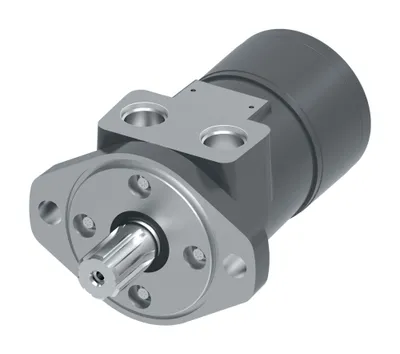

Danfoss

101-1087-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179AA02AA0000000000000AA00J

Danfoss

101-1086-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141AA02AA0000000000000AJ00J

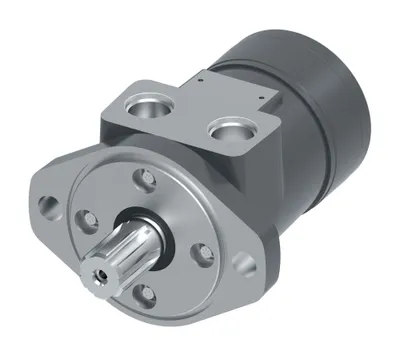

Danfoss

101-1085-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113AA02AA0000000000000AA00J

Danfoss

101-1084-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA02AA0000000000000AA00J

Danfoss

101-1083-009

H MOTOR SS, MH0059AA02AA0000000000000AA00J

Danfoss

101-1082-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045AA02AA0000000000000AA00J

Danfoss

101-1081-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA02AA0000000000000AA00J

Danfoss

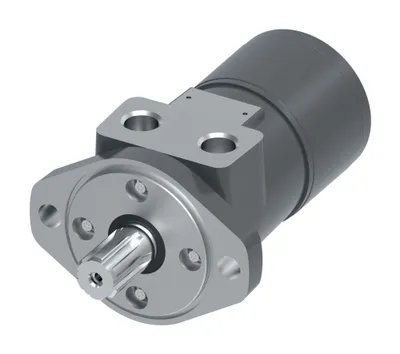

101-1080-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226AA02AB0000000000000AA00J

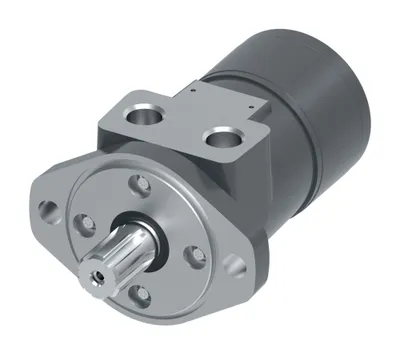

Danfoss

101-1079-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179AA02AB0000000000000AA00J

Danfoss

101-1078-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141AA02AB0000000000000AA00J

Danfoss

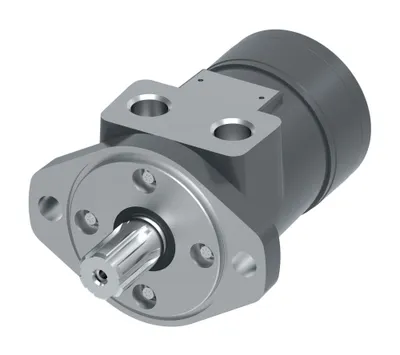

101-1077-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113AA02AB0000000000000AA00J

Danfoss

101-1076-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA02AB0000000000000AA00J

Danfoss

101-1075-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA02AB0000000000000AA00J

Danfoss

101-1074-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045AA02AB0000000000000AA00J

Danfoss

101-1073-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA02AB0000000000000AA00J

Danfoss

101-1072-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226BA02AC0000000000000AA00J

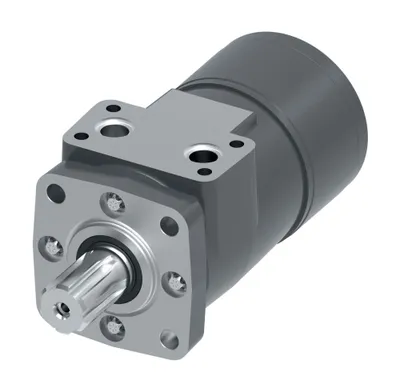

Danfoss

101-1071-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179BA02AC0000000000000AA00J

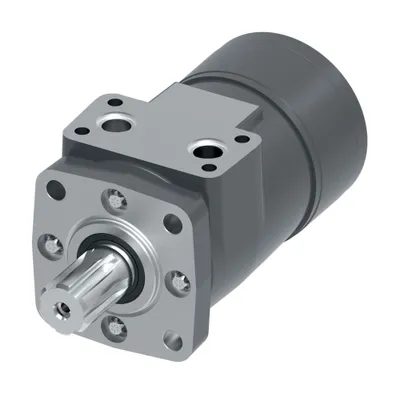

Danfoss

101-1070-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141BA02AC0000000000000AA00J

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Main port thread type
101-1093-009	MH0113AA02AC0000000000000AA00J	185	185 [11.3]	2 Bolt - A	Manifold
101-1092-009	MH0097AA02AC0000000000000AA00J	160	159 [9.7]	2 Bolt - A	Manifold
101-1091-009	MH0059AA02AC0000000000000AA00J	95	96 [5.9]	2 Bolt - A	Manifold
101-1090-009	MH0045AA02AC0000000000000AA00J	75	74 [4.5]	2 Bolt - A	Manifold
101-1089-009	MH0028AA02AC0000000000000AA00J	45	46 [2.8]	2 Bolt - A	Manifold
101-1088-009	MH0226AA02AA0000000000000AA00J	370	370 [22.6]	2 Bolt - A	UN / UNF
101-1087-009	MH0179AA02AA0000000000000AA00J	295	294 [17.9]	2 Bolt - A	UN / UNF
101-1086-009	MH0141AA02AA0000000000000AJ00J	230	231 [14.1]	2 Bolt - A	UN / UNF
101-1085-009	MH0113AA02AA0000000000000AA00J	185	185 [11.3]	2 Bolt - A	UN / UNF
101-1084-009	MH0097AA02AA0000000000000AA00J	160	159 [9.7]	2 Bolt - A	UN / UNF
101-1083-009	MH0059AA02AA0000000000000AA00J	95	96 [5.9]	2 Bolt - A	UN / UNF
101-1082-009	MH0045AA02AA0000000000000AA00J	75	74 [4.5]	2 Bolt - A	UN / UNF
101-1081-009	MH0028AA02AA0000000000000AA00J	45	46 [2.8]	2 Bolt - A	UN / UNF
101-1080-009	MH0226AA02AB0000000000000AA00J	370	370 [22.6]	2 Bolt - A	NPT / NPTF
101-1079-009	MH0179AA02AB0000000000000AA00J	295	294 [17.9]	2 Bolt - A	NPT / NPTF
101-1078-009	MH0141AA02AB0000000000000AA00J	230	231 [14.1]	2 Bolt - A	NPT / NPTF
101-1077-009	MH0113AA02AB0000000000000AA00J	185	185 [11.3]	2 Bolt - A	NPT / NPTF
101-1076-009	MH0097AA02AB0000000000000AA00J	160	159 [9.7]	2 Bolt - A	NPT / NPTF
101-1075-009	MH0059AA02AB0000000000000AA00J	95	96 [5.9]	2 Bolt - A	NPT / NPTF
101-1074-009	MH0045AA02AB0000000000000AA00J	75	74 [4.5]	2 Bolt - A	NPT / NPTF
101-1073-009	MH0028AA02AB0000000000000AA00J	45	46 [2.8]	2 Bolt - A	NPT / NPTF
101-1072-009	MH0226BA02AC0000000000000AA00J	370	370 [22.6]	4 Bolt - Square	Manifold
101-1071-009	MH0179BA02AC0000000000000AA00J	295	294 [17.9]	4 Bolt - Square	Manifold
101-1070-009	MH0141BA02AC0000000000000AA00J	230	231 [14.1]	4 Bolt - Square	Manifold

Common to all listed parts

Motor Series	H Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Shaft type	Splined
Shaft dimension	Dia. 1 inch, SAE 6B, 1/4 - 20 UNC-2B thread in shaft end
Shaft Key	n/a
