Danfoss orbital motor quick selector Parts

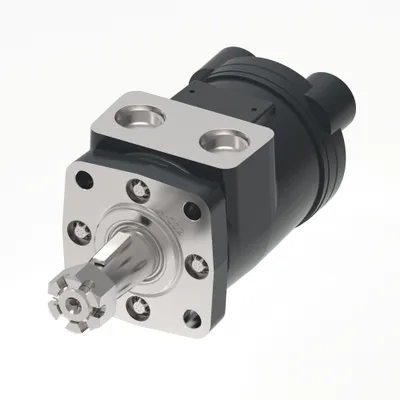

Danfoss

101-2968-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA05EB0000000000000AA00J

Danfoss

101-2962-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028MA18AF020N020000000AA00J

Danfoss

101-2961-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022MA18AF02AN020000000AA00J

Danfoss

101-2960-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028MA18AF16AN02AA00000AA00J

Danfoss

101-2957-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA02AA01A0000000000AA00J

Danfoss

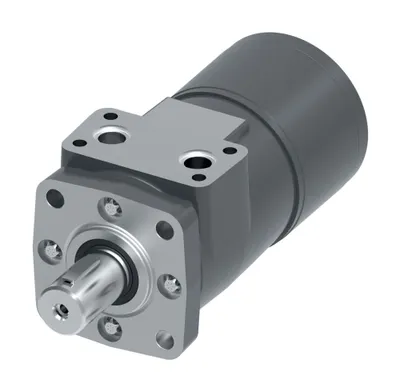

101-2953-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226BA01AC0000070000000AA00J

Danfoss

101-2937-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179FA01AA0000000000000AA00J

Danfoss

101-2935-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045AA01AA01A0000000000AA00J

Danfoss

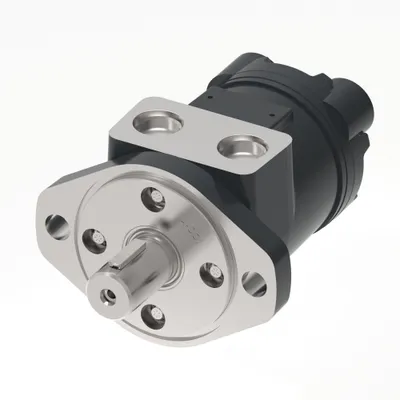

101-2932-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179EA02AA0000000000000AA00J

Danfoss

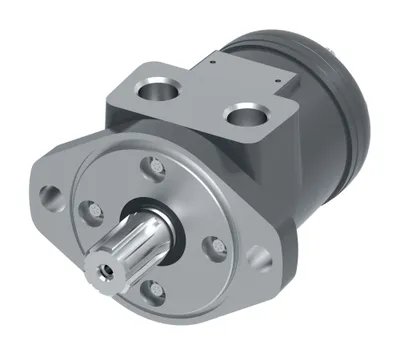

101-2925-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA02AB0100000000000AA00J

Danfoss

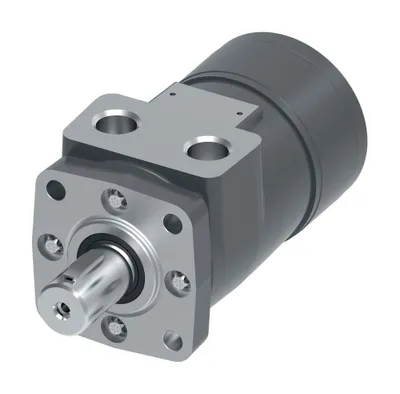

101-2923-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141BA01AB0000070000000AA00J

Danfoss

101-2921-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA01AB0000000000000AA00J

Danfoss

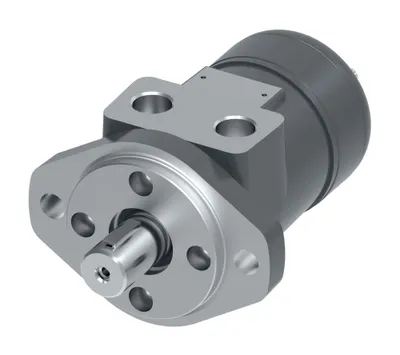

101-2907-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113MA39AF0200070000000AA00J

Danfoss

101-2906-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097MA39AF0200070000000AA00J

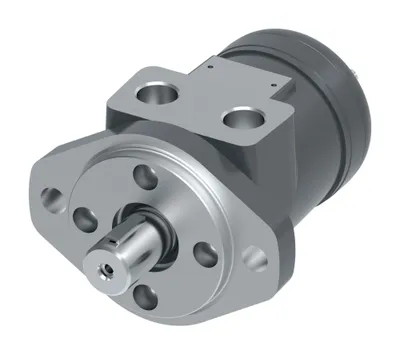

Danfoss

101-2904-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059MA39AF0200070000000AA00J

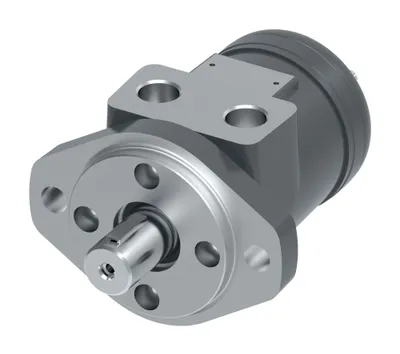

Danfoss

101-2903-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045MA39AF0200070000000AA00J

Danfoss

101-2902-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028MA39AF0200070000000AA00J

Danfoss

101-2886-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022BA01AC03A0070000000AA00J

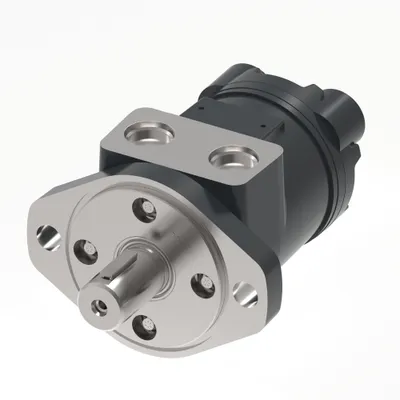

Danfoss

101-2882-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA01EB01A0030000000AA00J

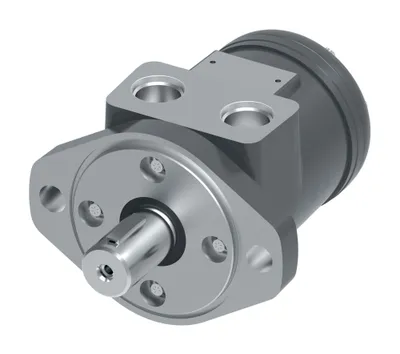

Danfoss

101-2879-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA24AA01A0000000000AA00J

Danfoss

101-2848-009

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035AA24AA01A0000000000AA00J

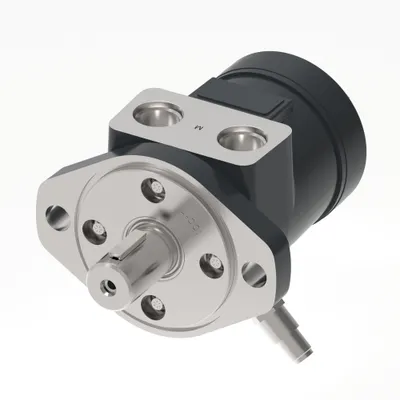

Danfoss

101-2842-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022MA18AF16AN02AA00000AA00J

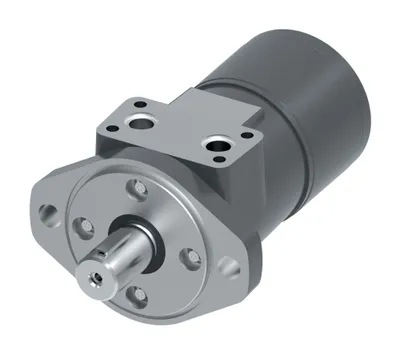

Danfoss

101-2839-009

MOTOR-ORBITAL,H SERIES 740 [45.1], MH0451AA01AH00A00000AB000AA00J

Danfoss

101-2837-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA01AA0100070000000AA00J

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Drain Port Dimension	Seal Kit
101-2968-009	MH0059BA05EB0000000000000AA00J	95	96 [5.9]	None	60540-000
101-2962-009	MH0028MA18AF020N020000000AA00J	45	46 [2.8]	G 1/4	60573-000
101-2961-009	MH0022MA18AF02AN020000000AA00J	35	36 [2.2]	G 1/4	60573-000
101-2960-009	MH0028MA18AF16AN02AA00000AA00J	45	46 [2.8]	G 1/4 - Spec. Component	60573-000
101-2957-009	MH0022AA02AA01A0000000000AA00J	35	36 [2.2]	7/16 - 20 UNF-2B SAE O-Ring port	60540-000
101-2953-009	MH0226BA01AC0000070000000AA00J	370	370 [22.6]	None	60572-000
101-2937-009	MH0179FA01AA0000000000000AA00J	295	294 [17.9]	None	60540-000
101-2935-009	MH0045AA01AA01A0000000000AA00J	75	74 [4.5]	7/16 - 20 UNF-2B SAE O-Ring port	60540-000
101-2932-009	MH0179EA02AA0000000000000AA00J	295	294 [17.9]	None	60540-000
101-2925-009	MH0028AA02AB0100000000000AA00J	45	46 [2.8]	7/16 - 20 UNF-2B SAE O-Ring port	60540-000
101-2923-009	MH0141BA01AB0000070000000AA00J	230	231 [14.1]	None	60572-000
101-2921-009	MH0097AA01AB0000000000000AA00J	160	159 [9.7]	None	60540-000
101-2907-009	MH0113MA39AF0200070000000AA00J	185	185 [11.3]	G 1/4	9900976-000
101-2906-009	MH0097MA39AF0200070000000AA00J	160	159 [9.7]	G 1/4	9900976-000
101-2904-009	MH0059MA39AF0200070000000AA00J	95	96 [5.9]	G 1/4	9900976-000
101-2903-009	MH0045MA39AF0200070000000AA00J	75	74 [4.5]	G 1/4	9900976-000
101-2902-009	MH0028MA39AF0200070000000AA00J	45	46 [2.8]	G 1/4	9900976-000
101-2886-009	MH0022BA01AC03A0070000000AA00J	35	36 [2.2]	Manifold	60572-000
101-2882-009	MH0022AA01EB01A0030000000AA00J	35	36 [2.2]	7/16 - 20 UNF-2B SAE O-Ring port	No data available
101-2879-009	MH0022AA24AA01A0000000000AA00J	35	36 [2.2]	7/16 - 20 UNF-2B SAE O-Ring port	60540-000
101-2848-009	MH0035AA24AA01A0000000000AA00J	60	58 [3.5]	7/16 - 20 UNF-2B SAE O-Ring port	60540-000
101-2842-009	MH0022MA18AF16AN02AA00000AA00J	35	36 [2.2]	G 1/4 - Spec. Component	60573-000
101-2839-009	MH0451AA01AH00A00000AB000AA00J	740	739 [45.1]	None	9901031-000
101-2837-009	MH0097AA01AA0100070000000AA00J	160	159 [9.7]	7/16 - 20 UNF-2B SAE O-Ring port	60572-000

Common to all listed parts

Motor Series	H Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
