Home / Motors / Mobile motors / Low-speed high-torque motors / Orbital motors / Danfoss orbital motor quick selector

Danfoss orbital motor quick selector Parts

Showing 4,537–4,560 of 11,614 parts

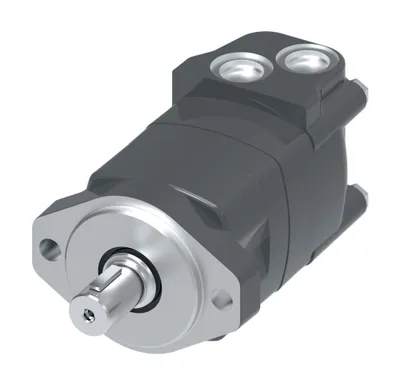

Danfoss 104-1001-006 – MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC01AA0100010000000AAAAF
Danfoss
104-1001-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC01AA0100010000000AAAAF

Danfoss 103-6190-012 – MOTOR-ORBITAL,S SERIES 130 [7.9]
Danfoss
103-6190-012

MOTOR-ORBITAL,S SERIES 130 [7.9]

Danfoss 103-6189-012 – MOTOR-ORBITAL,S SERIES 190 [11.6]
Danfoss
103-6189-012

MOTOR-ORBITAL,S SERIES 190 [11.6]

Danfoss 103-6188-012 – MOTOR-ORBITAL,S SERIES 190 [11.6]
Danfoss
103-6188-012

MOTOR-ORBITAL,S SERIES 190 [11.6]

Danfoss 103-6187-012 – MOTOR-ORBITAL,S SERIES 100 [6.1]
Danfoss
103-6187-012

MOTOR-ORBITAL,S SERIES 100 [6.1]

Danfoss 103-6186-012 – MOTOR-ORBITAL,S SERIES 140 [8.5]
Danfoss
103-6186-012

MOTOR-ORBITAL,S SERIES 140 [8.5]

Danfoss 103-6185-012 – MOTOR-ORBITAL,S SERIES 100 [6.1]
Danfoss
103-6185-012

MOTOR-ORBITAL,S SERIES 100 [6.1]

Danfoss 103-6184-012 – MOTOR-ORBITAL,S SERIES 300 [18.3]
Danfoss
103-6184-012

MOTOR-ORBITAL,S SERIES 300 [18.3]

Danfoss 103-6183-012 – MOTOR-ORBITAL,S SERIES 140 [8.5]
Danfoss
103-6183-012

MOTOR-ORBITAL,S SERIES 140 [8.5]

Danfoss 103-6182-012 – MOTOR-ORBITAL,S SERIES 70 [4.2]
Danfoss
103-6182-012

MOTOR-ORBITAL,S SERIES 70 [4.2]

Danfoss 103-6095-012 – MOTOR-ORBITAL,S SERIES 70 [4.2]
Danfoss
103-6095-012

MOTOR-ORBITAL,S SERIES 70 [4.2]

Danfoss 103-5288-012 – MOTOR-ORBITAL,S SERIES 280 [17.1]
Danfoss
103-5288-012

MOTOR-ORBITAL,S SERIES 280 [17.1]

Danfoss 103-4898-012 – MOTOR-ORBITAL,S SERIES 50 [3.0]
Danfoss
103-4898-012

MOTOR-ORBITAL,S SERIES 50 [3.0]

Danfoss 103-4897-012 – MOTOR-ORBITAL,S SERIES 380 [23.1]
Danfoss
103-4897-012

MOTOR-ORBITAL,S SERIES 380 [23.1]

Danfoss 103-4784-012 – MOTOR-ORBITAL,S SERIES 50 [3.0]
Danfoss
103-4784-012

MOTOR-ORBITAL,S SERIES 50 [3.0]

Danfoss 103-4434-012 – MOTOR-ORBITAL,S SERIES 300 [18.3]
Danfoss
103-4434-012

MOTOR-ORBITAL,S SERIES 300 [18.3]

Danfoss 103-4431-012 – MOTOR-ORBITAL,S SERIES 300 [18.3]
Danfoss
103-4431-012

MOTOR-ORBITAL,S SERIES 300 [18.3]

Danfoss 103-4373-012 – MOTOR-ORBITAL,S SERIES 220 [13.4]
Danfoss
103-4373-012

MOTOR-ORBITAL,S SERIES 220 [13.4]

Danfoss 103-4331-012 – MOTOR-ORBITAL,S SERIES 190 [11.6]
Danfoss
103-4331-012

MOTOR-ORBITAL,S SERIES 190 [11.6]

Danfoss 103-4289-012 – MOTOR-ORBITAL,S SERIES 160 [9.8]
Danfoss
103-4289-012

MOTOR-ORBITAL,S SERIES 160 [9.8]

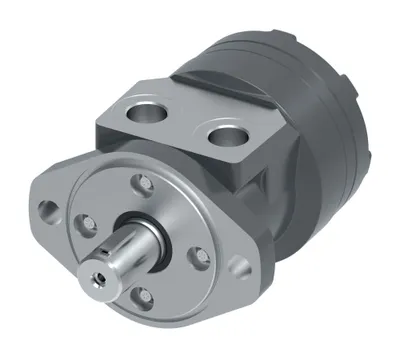

Danfoss 103-4281-012 – MOTOR-ORBITAL,S SERIES 160 [9.8]
Danfoss
103-4281-012

MOTOR-ORBITAL,S SERIES 160 [9.8]

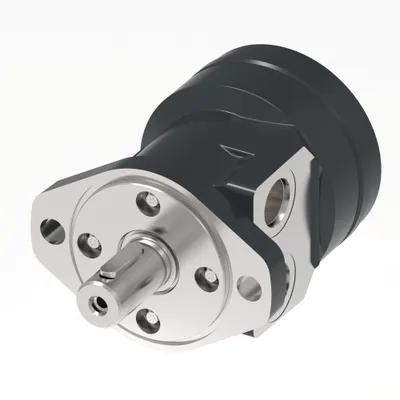

Danfoss 103-4123-012 – MOTOR-ORBITAL,S SERIES 100 [6.1]
Danfoss
103-4123-012

MOTOR-ORBITAL,S SERIES 100 [6.1]

Danfoss 103-4119-012 – MOTOR-ORBITAL,S SERIES 100 [6.1]
Danfoss
103-4119-012

MOTOR-ORBITAL,S SERIES 100 [6.1]

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNDesign codePort TypeDisplacementFlangeOutput shaft type
104-1001-00606————
103-5288-012TwelfthG1/2 O-ring port280 cm3/r (17.0866 in3/r)2 bolt flange27MM Straight key 7x7x31.7
103-4898-012TwelfthRc1/2 port51 cm3/r (3.1122 in3/r)4 bolt (equal interval)27MM Straight key 7x7x31.7
103-4897-012TwelfthG1/2 O-ring port371 cm3/r (22.6398 in3/r)4 bolt (equal interval)27MM Straight key 7x7x31.7
103-4784-012TwelfthMan port51 cm3/r (3.1122 in3/r)2 bolt flange27MM Straight key 8x7x31.7
103-4434-012TwelfthRc1/2 port299 cm3/r (18.2461 in3/r)2 bolt flange27MM Straight key 8x7x31.7
103-4431-012TwelfthRc1/2 port299 cm3/r (18.2461 in3/r)2 bolt flange27MM Straight key 7x7x31.7
103-4373-012Twelfth1/2 NPTF port224 cm3/r (13.4252 in3/r)2 bolt flange1" Straight W-key
103-4289-012TwelfthRc1/2 port165 cm3/r (10.0689 in3/r)4 bolt (equal interval)27MM Straight key 8x7x31.7
103-4284-012TwelfthRc1/2 port165 cm3/r (10.0689 in3/r)2 bolt flange27MM Straight key 8x7x31.7
103-4281-012TwelfthRc1/2 port165 cm3/r (10.0689 in3/r)2 bolt flange27MM Straight key 7x7x31.7
103-4123-012Twelfth1/2 NPTF port96 cm3/r (5.8583 in3/r)2 bolt flange1" Straight W-key
103-4119-012TwelfthMan port96 cm3/r (5.8583 in3/r)4 bolt (equal interval)27MM Straight key 8x7x31.7

Common to all listed parts

Sub brandChar-Lynn
