Danfoss orbital motor quick selector Parts

Danfoss

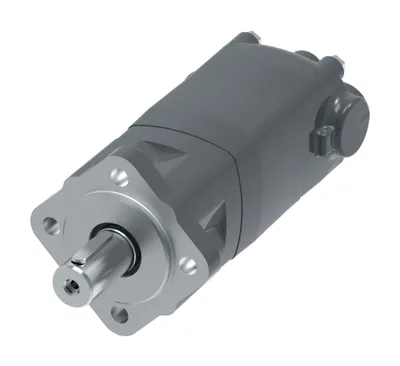

104-3071-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AH16AD0100010000000ABAAF

Danfoss

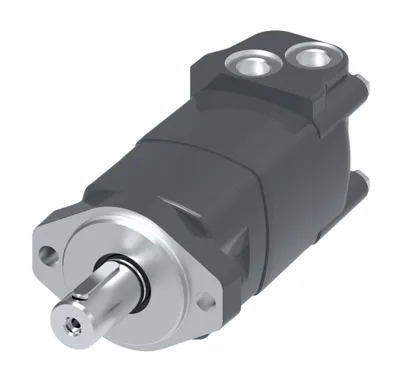

104-3068-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AC16AG0200010000000ABAAF

Danfoss

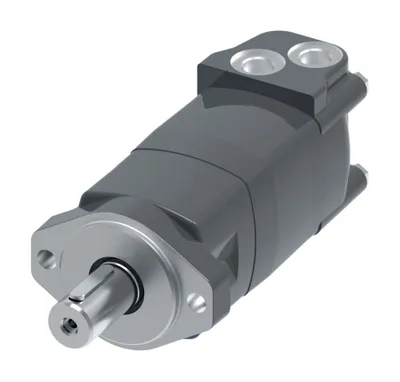

104-3067-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC16AG0200010000000ABAAF

Danfoss

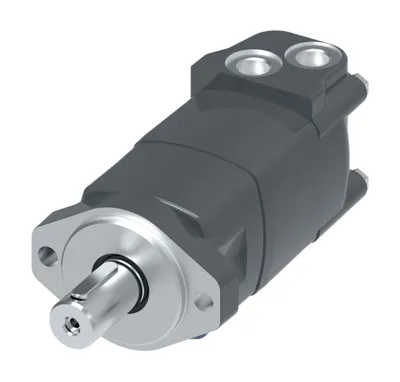

104-3066-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC16AG0200010000000ABAAF

Danfoss

104-3065-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC16AG0200010000000ABAAF

Danfoss

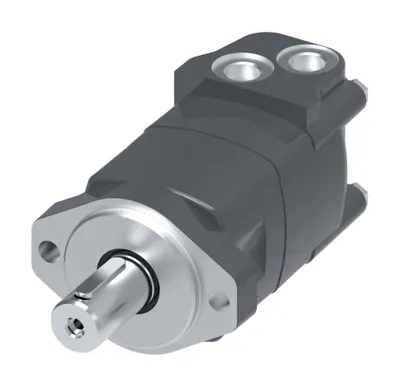

104-3062-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC16AG0200010000000ABAAF

Danfoss

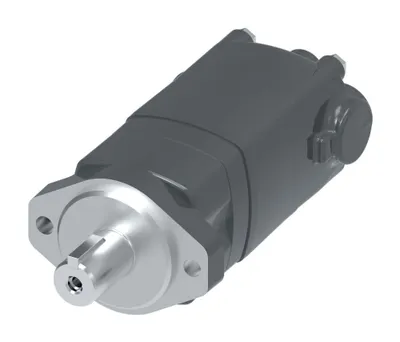

104-3060-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298BA32AD0100010000000ABAAF

Danfoss

104-3057-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC02AA0100010AA0000AAAAF

Danfoss

104-3056-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC02AA0100010AA0000AAAAF

Danfoss

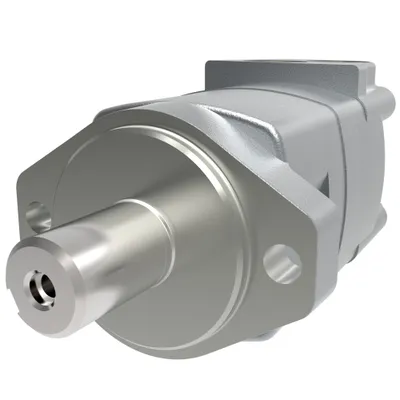

104-3054-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC02AA0100010AA0000AAAAF

Danfoss

104-3053-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC02AA0100010AA0000AAAAF

Danfoss

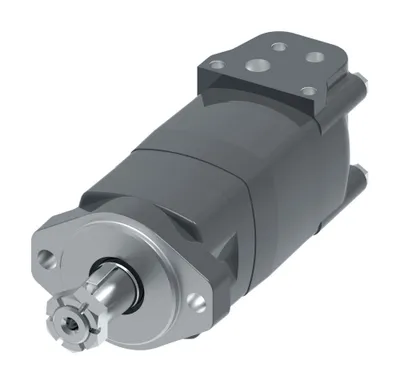

104-3051-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC03AA0102410000000AAAAF

Danfoss

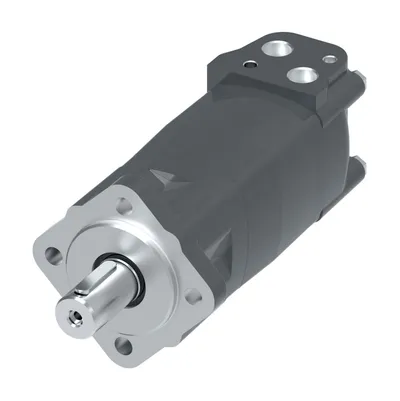

104-3046-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AH16AS0200010000000ABAAF

Danfoss

104-3045-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AH16AS0200010000000ABAAF

Danfoss

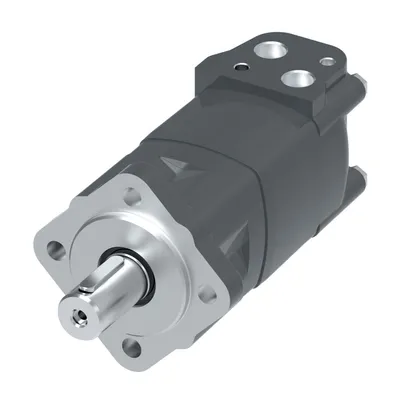

104-3044-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AH16AS0200010000000ABAAF

Danfoss

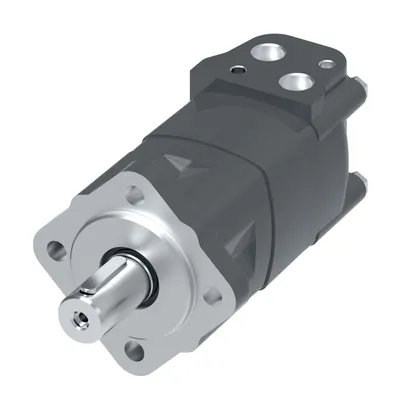

104-3043-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AH16AS0200010000000ABAAF

Danfoss

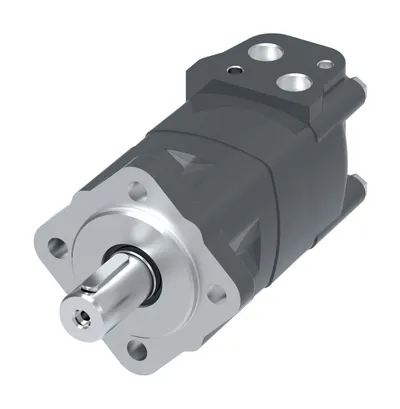

104-3042-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AH16AS0200010000000ABAAF

Danfoss

104-3041-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AH16AS0200010000000ABAAF

Danfoss

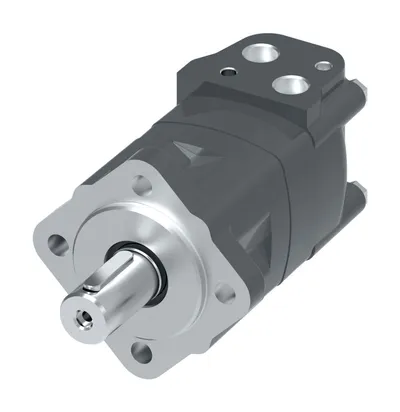

104-3039-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AH16AS0200010000000ABAAF

Danfoss

104-3038-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC17AA0100010000000AAAAF

Danfoss

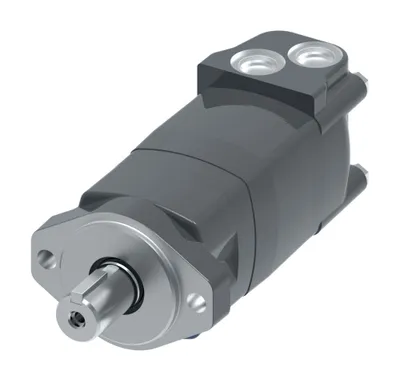

104-3036-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC17AA0100010000000AAAAF

Danfoss

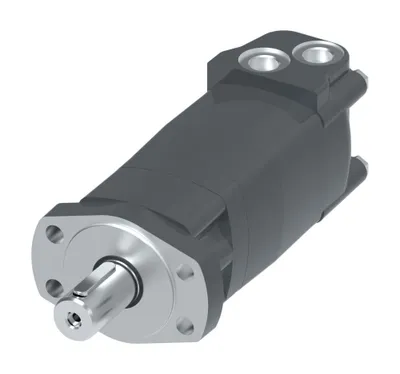

104-3035-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AJ16AG0200010000000ABAAF

Danfoss

104-3028-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC04AA0100011000000AAAAF

Danfoss

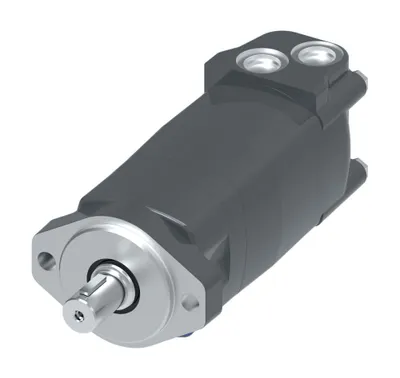

104-3026-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC01AA0100011000000AAAAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
104-3071-006	M02187AH16AD0100010000000ABAAF	305	306.6 [18.71]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-3068-006	M02298AC16AG0200010000000ABAAF	490	489.0 [29.84]	2 Bolt - A	Rectangular key, 10 x 8 x 45 mm
104-3067-006	M02187AC16AG0200010000000ABAAF	305	306.6 [18.71]	2 Bolt - A	Rectangular key, 10 x 8 x 45 mm
104-3066-006	M02149AC16AG0200010000000ABAAF	245	244.3 [14.91]	2 Bolt - A	Rectangular key, 10 x 8 x 45 mm
104-3065-006	M02119AC16AG0200010000000ABAAF	195	194.8 [11.89]	2 Bolt - A	Rectangular key, 10 x 8 x 45 mm
104-3062-006	M02062AC16AG0200010000000ABAAF	100	101.6 [6.20]	2 Bolt - A	Rectangular key, 10 x 8 x 45 mm
104-3060-006	M02298BA32AD0100010000000ABAAF	490	489.0 [29.84]	2 Bolt - A	Square key, 1/4 x 1/4 x 1 1/4 inch
104-3057-006	M02149AC02AA0100010AA0000AAAAF	245	244.3 [14.91]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-3056-006	M02119AC02AA0100010AA0000AAAAF	195	194.8 [11.89]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-3054-006	M02062AC02AA0100010AA0000AAAAF	100	101.6 [6.20]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-3053-006	M02049AC02AA0100010AA0000AAAAF	80	80.6 [4.92]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-3051-006	M02187AC03AA0102410000000AAAAF	305	306.6 [18.71]	2 Bolt - A	Square key, 5/16 x 1 inch
104-3046-006	M02240AH16AS0200010000000ABAAF	395	393.8 [24.03]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-3045-006	M02187AH16AS0200010000000ABAAF	305	306.6 [18.71]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-3044-006	M02149AH16AS0200010000000ABAAF	245	244.3 [14.91]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-3043-006	M02119AH16AS0200010000000ABAAF	195	194.8 [11.89]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-3042-006	M02096AH16AS0200010000000ABAAF	160	158.1 [9.65]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-3041-006	M02080AH16AS0200010000000ABAAF	130	130.6 [7.97]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-3039-006	M02049AH16AS0200010000000ABAAF	80	80.6 [4.92]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
104-3038-006	M02119AC17AA0100010000000AAAAF	195	194.8 [11.89]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-3036-006	M02187AC17AA0100010000000AAAAF	305	306.6 [18.71]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-3035-006	M02240AJ16AG0200010000000ABAAF	395	393.8 [24.03]	4 Bolt - Magneto	Rectangular key, 10 x 8 x 45 mm
104-3028-006	M02119AC04AA0100011000000AAAAF	195	194.8 [11.89]	2 Bolt - A	n/a
104-3026-006	M02240AC01AA0100011000000AAAAF	395	393.8 [24.03]	2 Bolt - A	Woodruff key, 1/4 x 1 inch

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Dust seal	Standard
