Danfoss orbital motor quick selector Parts

Danfoss

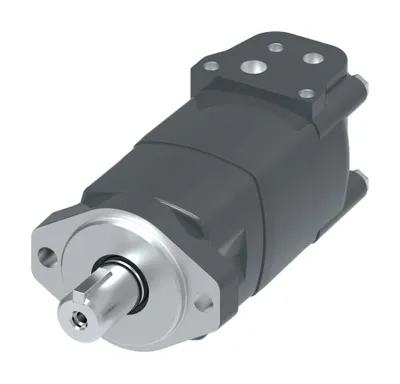

104-4506-006

MOTOR-ORBITAL,2000 SERIES 90 [5.5], M02055AC02AB01000100000AAACAAF

Danfoss

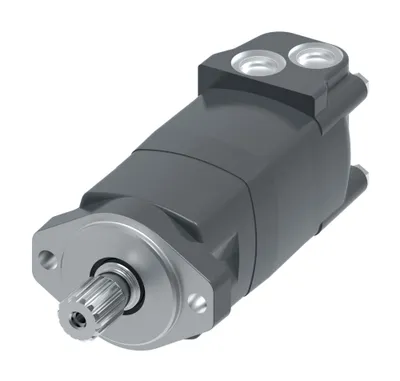

104-4502-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC04AA0100016000000ABAAF

Danfoss

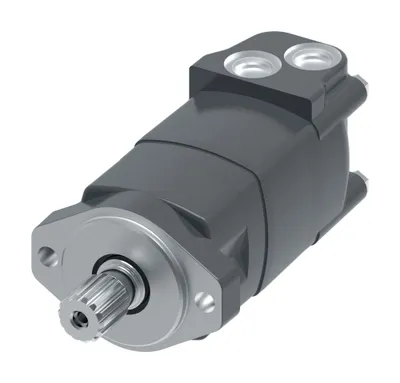

104-4497-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AC04AA0100018001900AAAAF

Danfoss

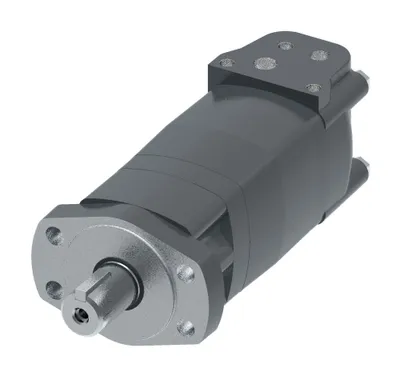

104-4492-006

MOTOR-ORBITAL,2000 SERIES 395 [24], M02240AJ02AB0100010000000AAAAF

Danfoss

104-4484-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC05AG0200010000300ABAAF

Danfoss

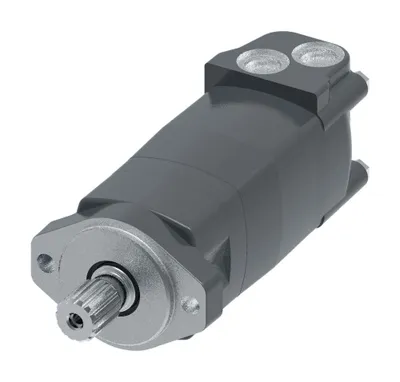

104-4481-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC04AA0100018001900AAAAF

Danfoss

104-4480-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC04AA0100018001900AAAAF

Danfoss

104-4477-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AC04AA0100018000000AAAAF

Danfoss

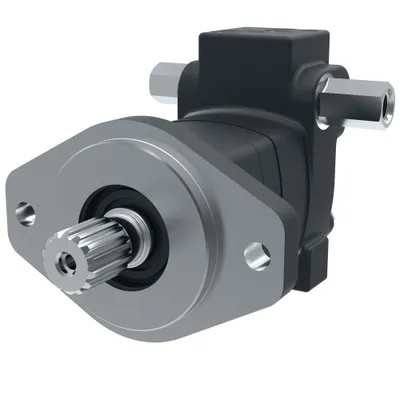

104-4456-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AF04AA0105823000800ABAAF

Danfoss

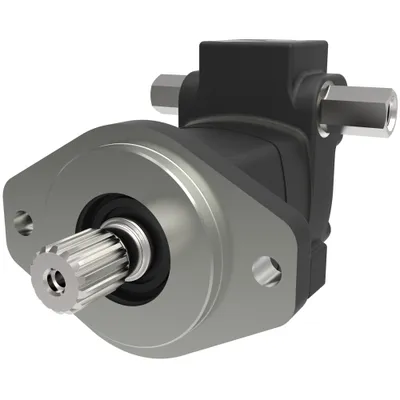

104-4455-006

MOTOR-ORBITAL,2000 SERIES 90 [5.5], M02055AF04AA0105823000800ABAAF

Danfoss

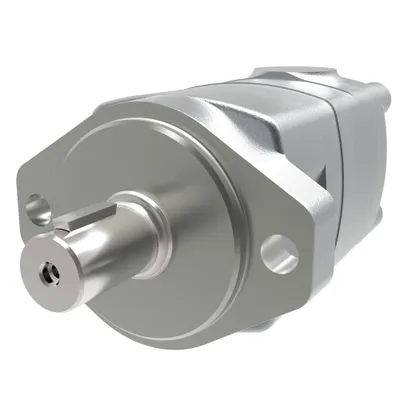

104-4442-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AC01AR0100010000000AAAAF

Danfoss

104-4441-006

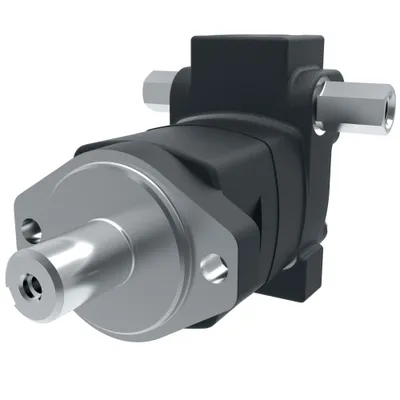

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC02AA0104110000000ABAAF

Danfoss

104-4434-006

MOTOR-ORBITAL,2000 SERIES 160 (9.7), M02096AJ19AA0100010000000AAAAF

Danfoss

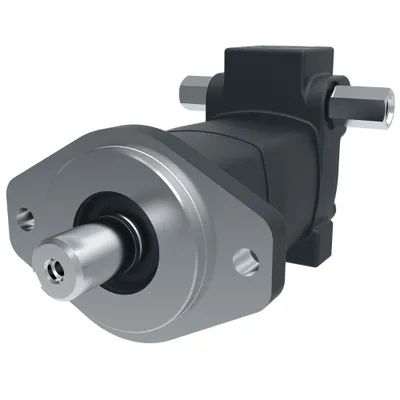

104-4420-006

MOTOR-ORBITAL,2000 SERIES 395 [24], M02240AF02AA0104110000000ABAAF

Danfoss

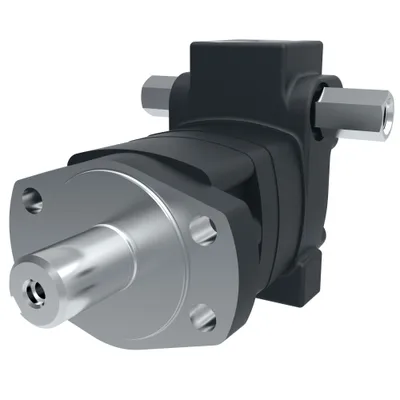

104-4407-006

MOTOR-ORBITAL,2000 SERIES 90 [5.5], M02055AJ02AA0104110000000ABAAF

Danfoss

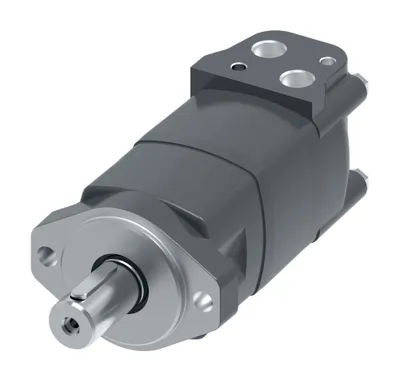

104-4402-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC16AS0200013000000AAAAF

Danfoss

104-4400-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC19AS0200013000000AAAAF

Danfoss

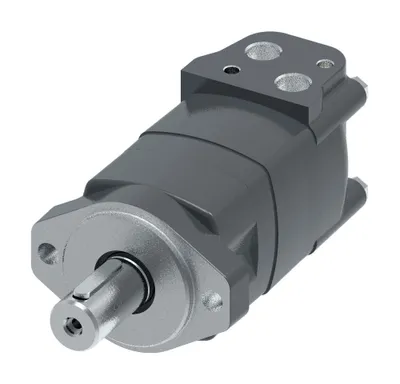

104-4399-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC16AS0200013000000AAAAF

Danfoss

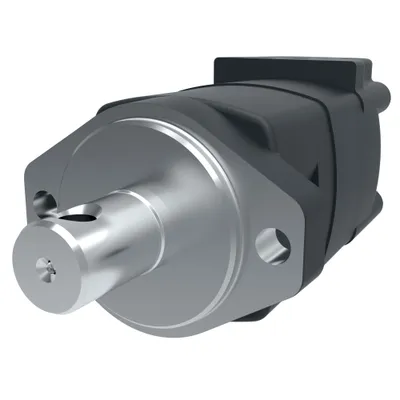

104-4398-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC25AA0100015000000AFAAF

Danfoss

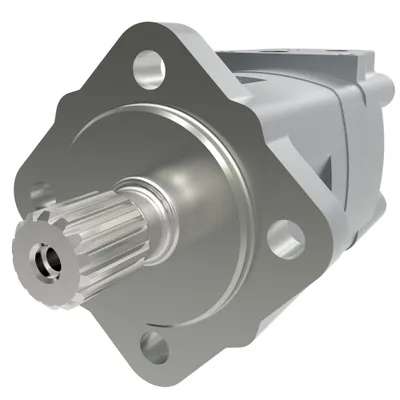

104-4397-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AH04AB0100010000000AAAAF

Danfoss

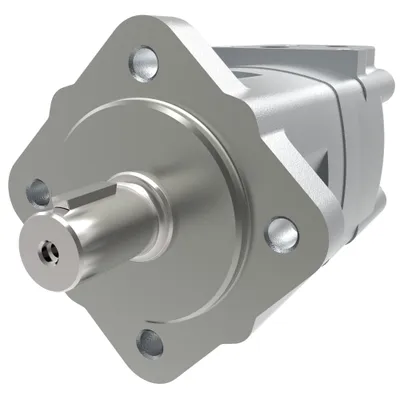

104-4394-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AS01AB0100010000000AAAAF

Danfoss

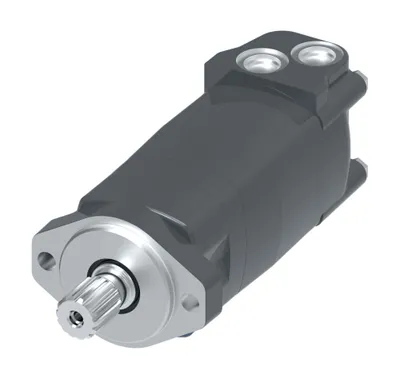

104-4385-006

MOTOR-ORBITAL,2000 SERIES 395 [24], M02240AC04AA0100013001900ATAAF

Danfoss

104-4384-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC04AA0100013001900ATAAF

Danfoss

104-4371-006

MOTOR-ORBITAL,2000 SERIES 395 [24], M02240AH03AA0100016000000ABAAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Seal Kit
104-4506-006	M02055AC02AB01000100000AAACAAF	90	90.6 [5.53]	Square key, 5/16 x 5/16 x 1 1/4 inch	61258-000
104-4502-006	M02187AC04AA0100016000000ABAAF	305	306.6 [18.71]	n/a	61329-000
104-4497-006	M02298AC04AA0100018001900AAAAF	490	489.0 [29.84]	n/a	61329-000
104-4492-006	M02240AJ02AB0100010000000AAAAF	395	393.8 [24.03]	Square key, 5/16 x 5/16 x 1 1/4 inch	61258-000
104-4484-006	M02062AC05AG0200010000300ABAAF	100	101.6 [6.20]	n/a	9900684-000
104-4481-006	M02240AC04AA0100018001900AAAAF	395	393.8 [24.03]	n/a	61329-000
104-4480-006	M02187AC04AA0100018001900AAAAF	305	306.6 [18.71]	n/a	61329-000
104-4477-006	M02298AC04AA0100018000000AAAAF	490	489.0 [29.84]	n/a	61329-000
104-4456-006	M02062AF04AA0105823000800ABAAF	100	101.6 [6.20]	n/a	9900716-000
104-4455-006	M02055AF04AA0105823000800ABAAF	90	90.6 [5.53]	n/a	9900716-000
104-4442-006	M02049AC01AR0100010000000AAAAF	80	80.6 [4.92]	Woodruff key, 1/4 x 1 inch	No data available
104-4441-006	M02062AC02AA0104110000000ABAAF	100	101.6 [6.20]	Square key, 5/16 x 5/16 x 1 1/4 inch	9900404-000
104-4434-006	M02096AJ19AA0100010000000AAAAF	160	158.1 [9.65]	Rectangular key, 8 x 7 x 32 mm	61258-000
104-4420-006	M02240AF02AA0104110000000ABAAF	395	393.8 [24.03]	Square key, 5/16 x 5/16 x 1 1/4 inch	9900404-000
104-4407-006	M02055AJ02AA0104110000000ABAAF	90	90.6 [5.53]	Square key, 5/16 x 5/16 x 1 1/4 inch	9900404-000
104-4402-006	M02149AC16AS0200013000000AAAAF	245	244.3 [14.91]	Rectangular key, 10 x 8 x 45 mm	9900876-000
104-4400-006	M02119AC19AS0200013000000AAAAF	195	194.8 [11.89]	Rectangular key, 8 x 7 x 32 mm	9900876-000
104-4399-006	M02096AC16AS0200013000000AAAAF	160	158.1 [9.65]	Rectangular key, 10 x 8 x 45 mm	9900876-000
104-4398-006	M02119AC25AA0100015000000AFAAF	195	194.8 [11.89]	n/a	9900395-000
104-4397-006	M02049AH04AB0100010000000AAAAF	80	80.6 [4.92]	n/a	61258-000
104-4394-006	M02062AS01AB0100010000000AAAAF	100	101.6 [6.20]	Woodruff key, 1/4 x 1 inch	61258-000
104-4385-006	M02240AC04AA0100013001900ATAAF	395	393.8 [24.03]	n/a	9900352-000
104-4384-006	M02187AC04AA0100013001900ATAAF	305	306.6 [18.71]	n/a	9900352-000
104-4371-006	M02240AH03AA0100016000000ABAAF	395	393.8 [24.03]	Square key, 5/16 x 1 inch	61329-000

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Brake Release Port Dimension	n/a
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Check valve function	Yes
