Danfoss orbital motor quick selector Parts

Danfoss

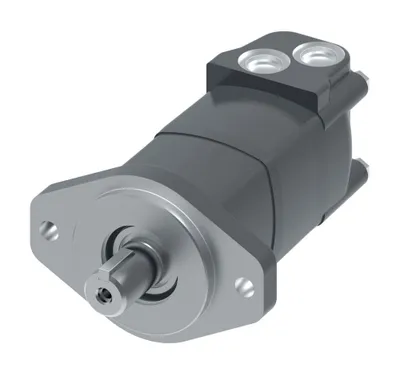

104-4970-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AF02AA01000100000AAAAAAF

Danfoss

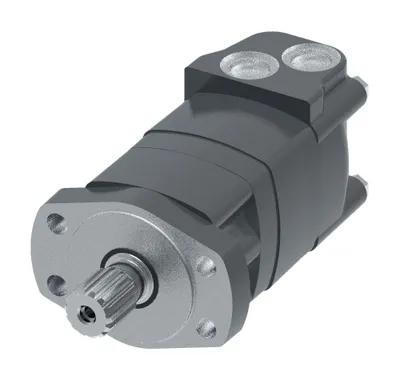

104-4968-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AJ04AA01000100000AAABAAF

Danfoss

104-4966-006

MOTOR-ORBITAL,2000 SERIES 65 [4], M02040AC05AA0100010000000ABAAF

Danfoss

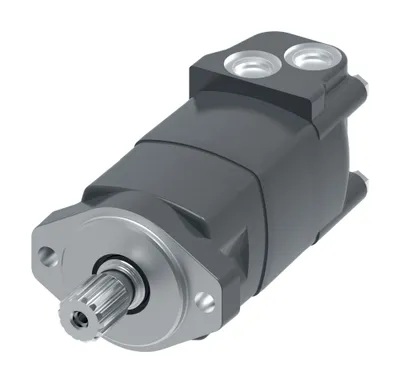

104-4960-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AC04AA0100016000000ABAAF

Danfoss

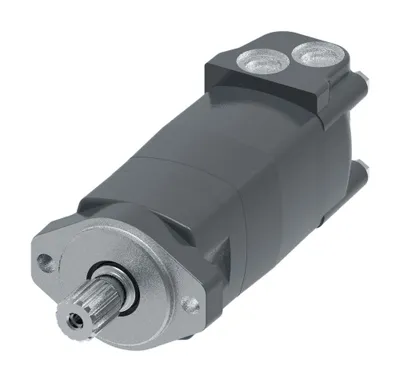

104-4959-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AC04AA0100016000000ABAAF

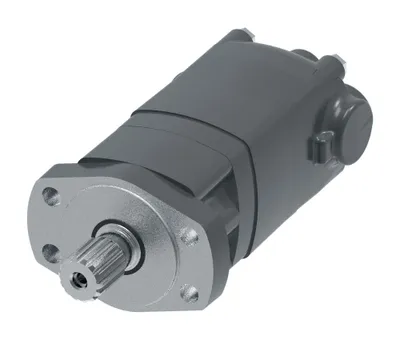

Danfoss

104-4954-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AJ04AD01000100000AAAAAAF

Danfoss

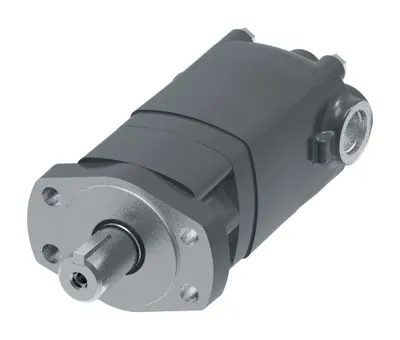

104-4952-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AJ02AF0100010AH0800AAAAF

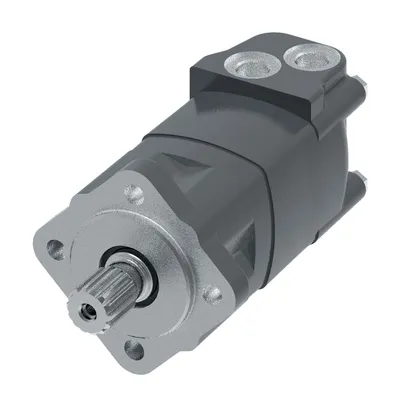

Danfoss

104-4946-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AH04AG0200013000000ABAAF

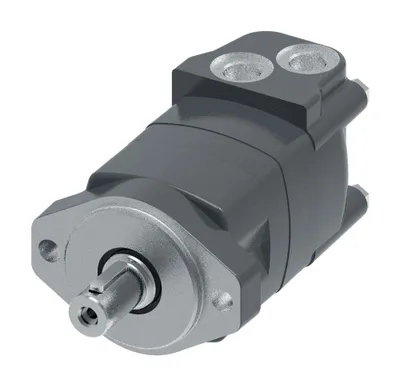

Danfoss

104-4927-006

MOTOR-ORBITAL,2000 SERIES 65 (4.1), M02040AC19AG0200010000000ABAAF

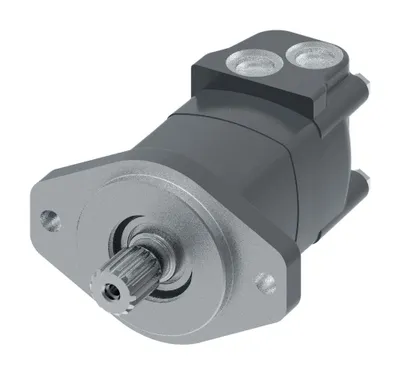

Danfoss

104-4911-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF04AA0106213000000AAAAF

Danfoss

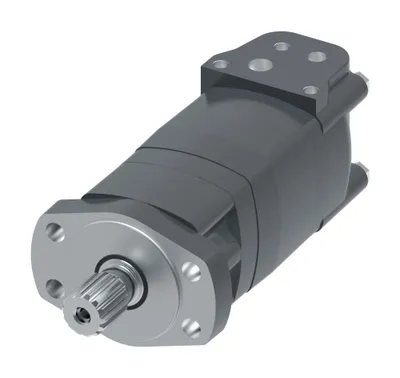

104-4909-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AJ04AB0100013000000ABAAF

Danfoss

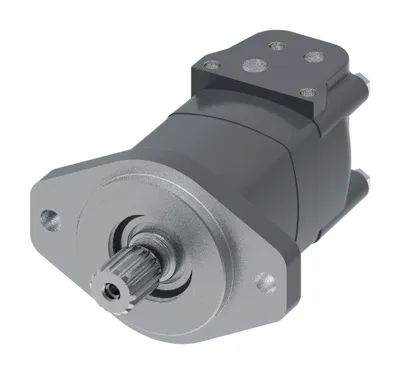

104-4899-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF04AB0100010000000ABAAF

Danfoss

104-4893-006

MOTOR-ORBITAL,2000 SERIES 40 [2.5], M02025AC19AG0200013000000ABAAF

Danfoss

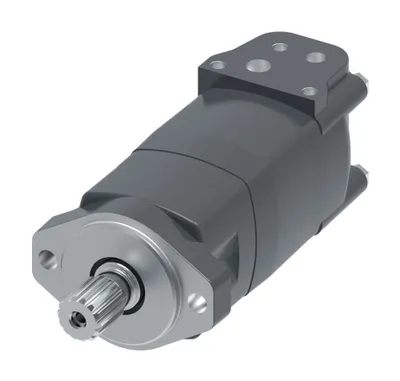

104-4887-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC04AB0100010000000ABAAF

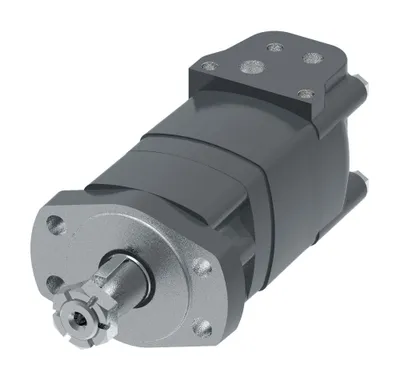

Danfoss

104-4879-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AJ03AB0100010AB0000AFAAF

Danfoss

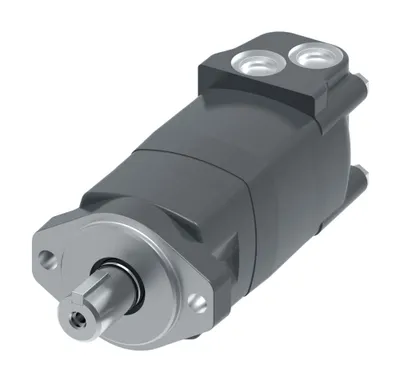

104-4878-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC02AA0100010AD0000ABAAF

Danfoss

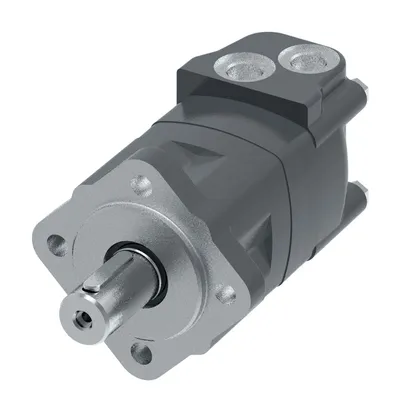

104-4861-006

MOTOR-ORBITAL,2000 SERIES 65 [4], M02040AH16AG0200010000000ABAAF

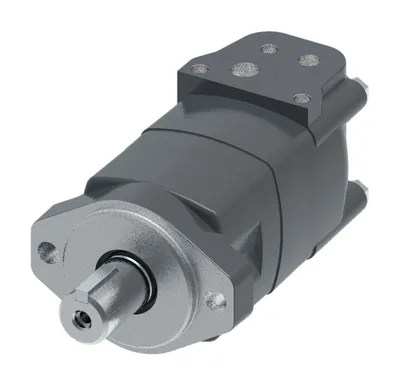

Danfoss

104-4857-006

MOTOR-ORBITAL,2000 SERIES 130 [8], M02080AC02AB0100013000000ABAAF

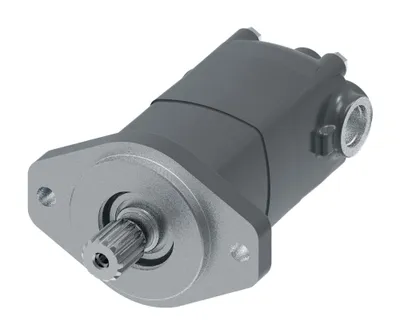

Danfoss

104-4840-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AF04AF0100013000000ABAAF

Danfoss

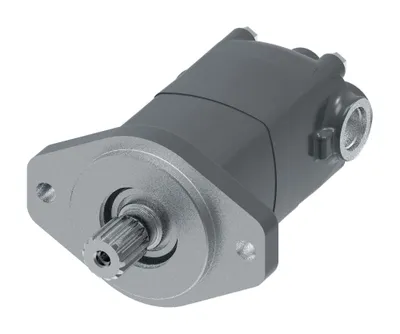

104-4839-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AF04AF0100013000000ABAAF

Danfoss

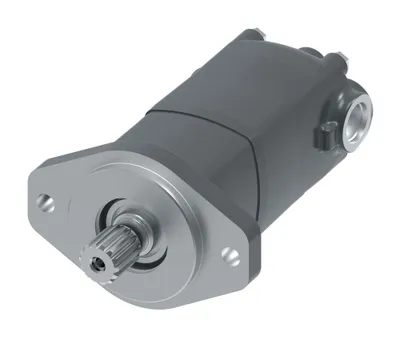

104-4838-006

MOTOR-ORBITAL,2000 SERIES 90 [5.5], M02055AF04AF0100013000000ABAAF

Danfoss

104-4833-006

MOTOR-ORBITAL,2000 SERIES 65 [4], M02040AJ03AA0100013000000AAAAF

Danfoss

104-4828-006

MOTOR-ORBITAL,2000 SERIES 90 [5.5], M02055AH16AG0200010000000ABAAF

Danfoss

104-4816-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AJ16AD0100013000000AAABF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Seal Kit
104-4970-006	M02149AF02AA01000100000AAAAAAF	245	244.3 [14.91]	Square key, 5/16 x 5/16 x 1 1/4 inch	61258-000
104-4968-006	M02096AJ04AA01000100000AAABAAF	160	158.1 [9.65]	n/a	61258-000
104-4966-006	M02040AC05AA0100010000000ABAAF	65	66.5 [4.06]	n/a	61258-000
104-4960-006	M02298AC04AA0100016000000ABAAF	490	489.0 [29.84]	n/a	61329-000
104-4959-006	M02240AC04AA0100016000000ABAAF	395	393.8 [24.03]	n/a	61329-000
104-4954-006	M02119AJ04AD01000100000AAAAAAF	195	194.8 [11.89]	n/a	61258-000
104-4952-006	M02119AJ02AF0100010AH0800AAAAF	195	194.8 [11.89]	Square key, 5/16 x 5/16 x 1 1/4 inch	61258-000
104-4946-006	M02119AH04AG0200013000000ABAAF	195	194.8 [11.89]	n/a	9900876-000
104-4927-006	M02040AC19AG0200010000000ABAAF	65	66.5 [4.06]	Rectangular key, 8 x 7 x 32 mm	9900684-000
104-4911-006	M02049AF04AA0106213000000AAAAF	80	80.6 [4.92]	n/a	No data available
104-4909-006	M02187AJ04AB0100013000000ABAAF	305	306.6 [18.71]	n/a	61258-000
104-4899-006	M02049AF04AB0100010000000ABAAF	80	80.6 [4.92]	n/a	61258-000
104-4893-006	M02025AC19AG0200013000000ABAAF	40	40.8 [2.49]	Rectangular key, 8 x 7 x 32 mm	9900876-000
104-4887-006	M02187AC04AB0100010000000ABAAF	305	306.6 [18.71]	n/a	61258-000
104-4879-006	M02119AJ03AB0100010AB0000AFAAF	195	194.8 [11.89]	Square key, 5/16 x 1 inch	61258-000
104-4878-006	M02187AC02AA0100010AD0000ABAAF	305	306.6 [18.71]	Square key, 5/16 x 5/16 x 1 1/4 inch	61258-000
104-4861-006	M02040AH16AG0200010000000ABAAF	65	66.5 [4.06]	Rectangular key, 10 x 8 x 45 mm	9900684-000
104-4857-006	M02080AC02AB0100013000000ABAAF	130	130.6 [7.97]	Square key, 5/16 x 5/16 x 1 1/4 inch	9900352-000
104-4840-006	M02096AF04AF0100013000000ABAAF	160	158.1 [9.65]	n/a	9900352-000
104-4839-006	M02062AF04AF0100013000000ABAAF	100	101.6 [6.20]	n/a	9900352-000
104-4838-006	M02055AF04AF0100013000000ABAAF	90	90.6 [5.53]	n/a	9900352-000
104-4833-006	M02040AJ03AA0100013000000AAAAF	65	66.5 [4.06]	Square key, 5/16 x 1 inch	9900352-000
104-4828-006	M02055AH16AG0200010000000ABAAF	90	90.6 [5.53]	Rectangular key, 10 x 8 x 45 mm	9900684-000
104-4816-006	M02298AJ16AD0100013000000AAABF	490	489.0 [29.84]	Rectangular key, 10 x 8 x 45 mm	9900352-000

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Brake Release Port Dimension	n/a
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
