Danfoss orbital motor quick selector Parts

Danfoss

105-1055-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AB02AF0100010000000AAAAF

Danfoss

105-1052-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AB02AF0100010000000AAAAF

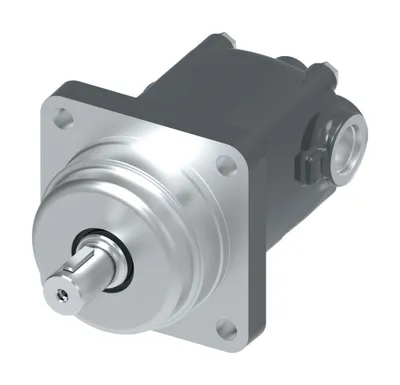

Danfoss

105-1037-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AB01AF0100010000000AAAAF

Danfoss

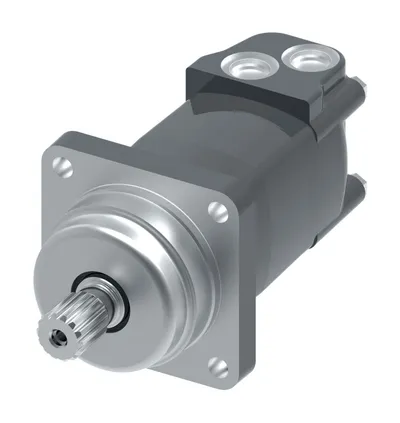

105-1035-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AB04AA0100010000000AAAAF

Danfoss

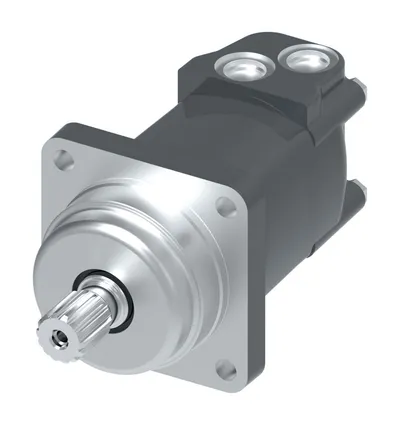

105-1034-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AB04AA0100010000000AAAAF

Danfoss

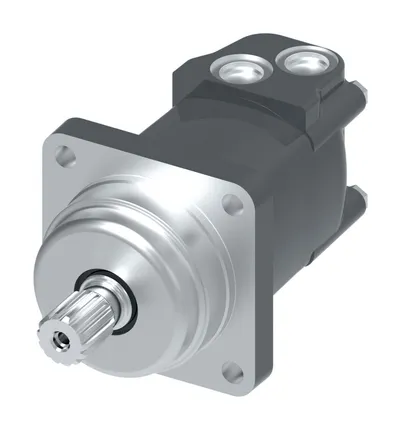

105-1033-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AB04AA0100010000000AAAAF

Danfoss

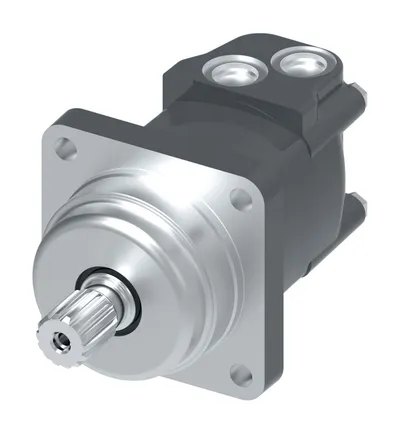

105-1031-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AB04AA0100010000000AAAAF

Danfoss

105-1029-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AB04AA0100010000000AAAAF

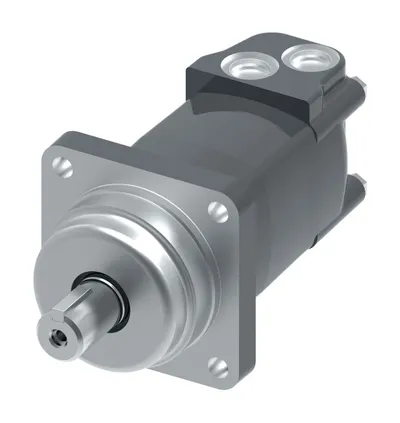

Danfoss

105-1028-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AB02AA0100010000000AAAAF

Danfoss

105-1027-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AB02AA0100010000000AAAAF

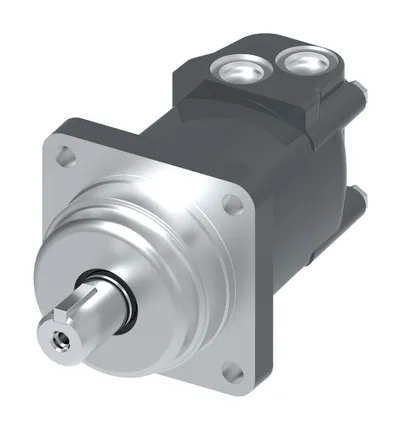

Danfoss

105-1026-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AB02AA0100010000000AAAAF

Danfoss

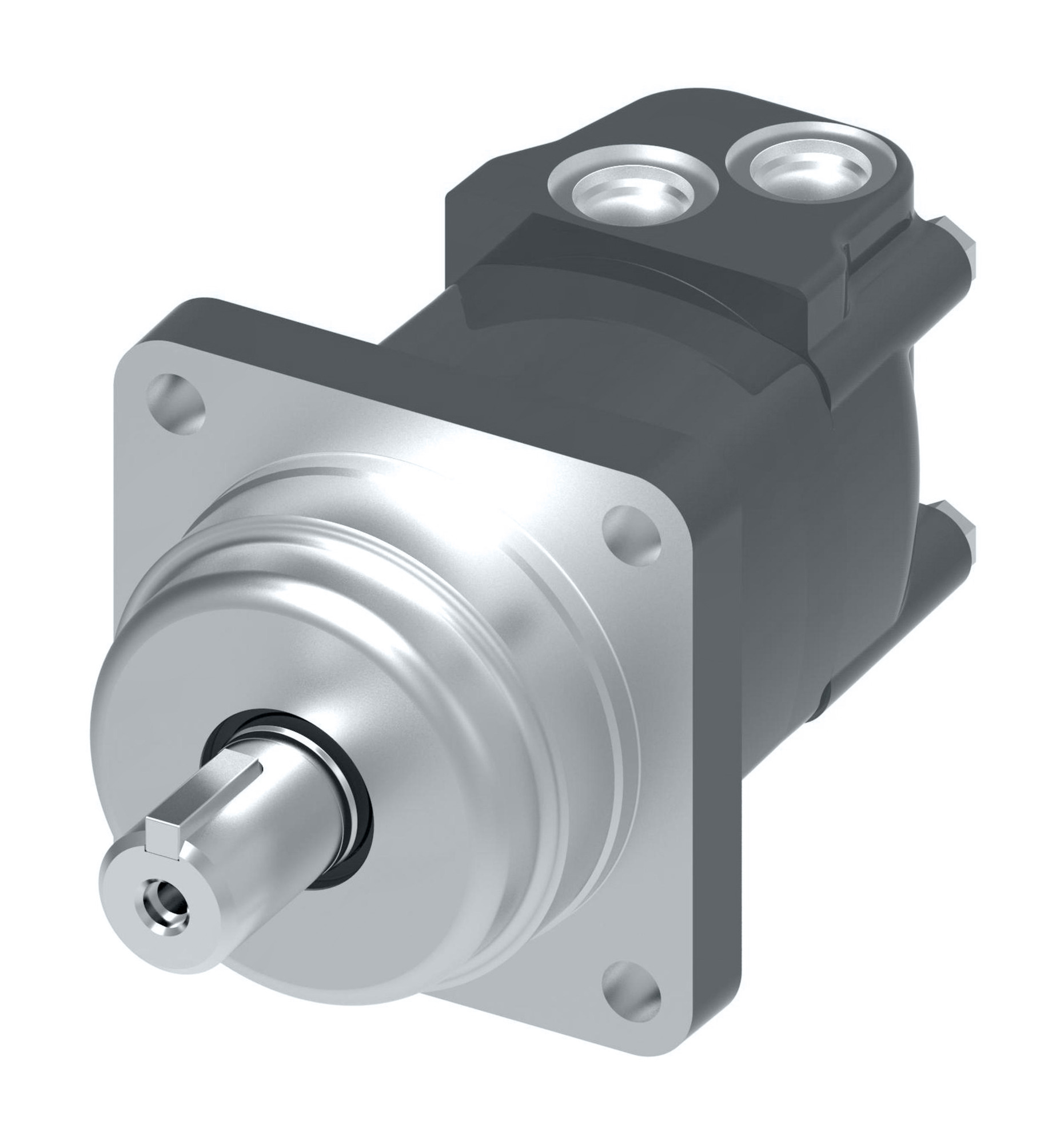

105-1025-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AB02AA0100010000000AAAAF

Danfoss

105-1024-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AB02AA0100010000000AAAAF

Danfoss

105-1023-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AB02AA0100010000000AAAAF

Danfoss

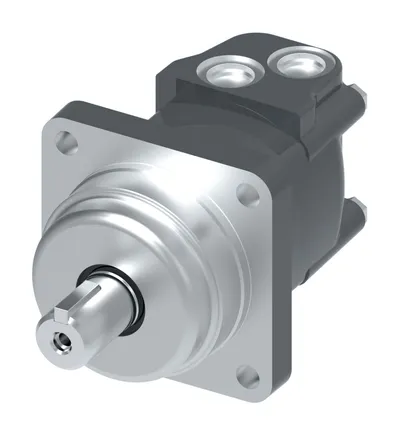

105-1022-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AB02AA0100010000000AAAAF

Danfoss

105-1015-006

MOTOR 2K, M02049AB05AA0100010000000AAAAF

Danfoss

105-1009-006

MOTOR 2K, M02062AB01AA0100010000000AAAAF

Danfoss

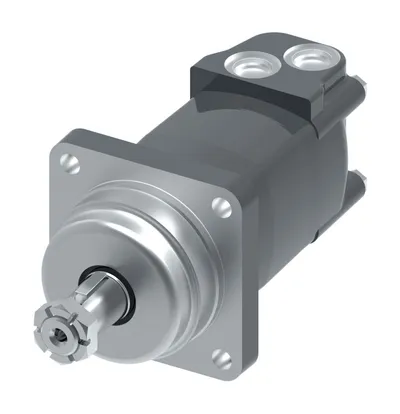

105-1007-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AB03AA0100010000000AAAAF

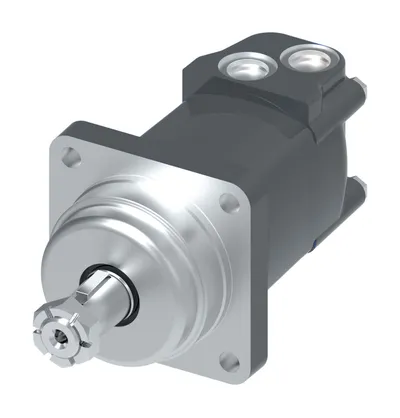

Danfoss

105-1006-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AB03AA0100010000000AAAAF

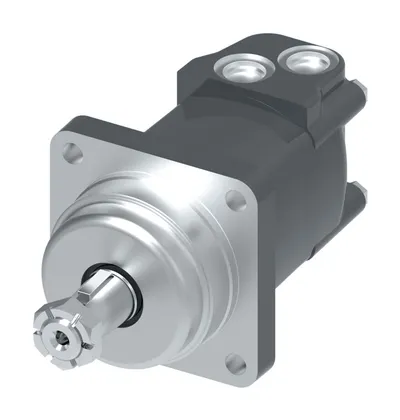

Danfoss

105-1005-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AB03AA0100010000000AAAAF

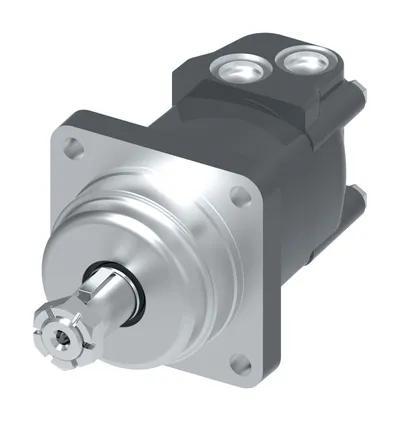

Danfoss

105-1004-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AB03AA0100010000000AAAAF

Danfoss

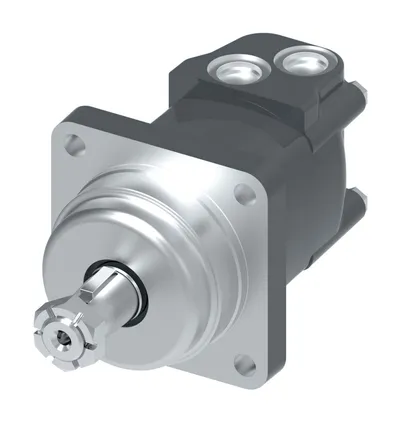

105-1003-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AB03AA0100010000000AAAAF

Danfoss

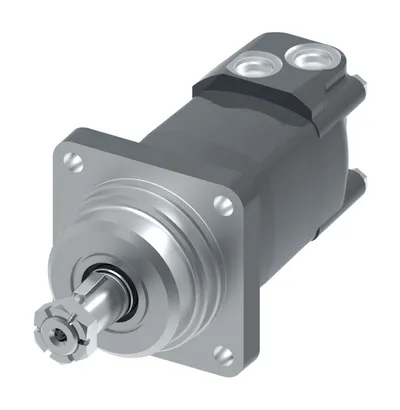

105-1002-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AB03AA0100010000000AAAAF

Danfoss

105-1001-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AB03AA0100010000000AAAAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft type	Shaft Key
105-1055-006	M02096AB02AF0100010000000AAAAF	160	158.1 [9.65]	Straight	Square key, 5/16 x 5/16 x 1 1/4 inch
105-1052-006	M02049AB02AF0100010000000AAAAF	80	80.6 [4.92]	Straight	Square key, 5/16 x 5/16 x 1 1/4 inch
105-1037-006	M02062AB01AF0100010000000AAAAF	100	101.6 [6.20]	Straight	Woodruff key, 1/4 x 1 inch
105-1035-006	M02187AB04AA0100010000000AAAAF	305	306.6 [18.71]	Splined	n/a
105-1034-006	M02149AB04AA0100010000000AAAAF	245	244.3 [14.91]	Splined	n/a
105-1033-006	M02119AB04AA0100010000000AAAAF	195	194.8 [11.89]	Splined	n/a
105-1031-006	M02080AB04AA0100010000000AAAAF	130	130.6 [7.97]	Splined	n/a
105-1029-006	M02049AB04AA0100010000000AAAAF	80	80.6 [4.92]	Splined	n/a
105-1028-006	M02187AB02AA0100010000000AAAAF	305	306.6 [18.71]	Straight	Square key, 5/16 x 5/16 x 1 1/4 inch
105-1027-006	M02149AB02AA0100010000000AAAAF	245	244.3 [14.91]	Straight	Square key, 5/16 x 5/16 x 1 1/4 inch
105-1026-006	M02119AB02AA0100010000000AAAAF	195	194.8 [11.89]	Straight	Square key, 5/16 x 5/16 x 1 1/4 inch
105-1025-006	M02096AB02AA0100010000000AAAAF	160	158.1 [9.65]	Straight	Square key, 5/16 x 5/16 x 1 1/4 inch
105-1024-006	M02080AB02AA0100010000000AAAAF	130	130.6 [7.97]	Straight	Square key, 5/16 x 5/16 x 1 1/4 inch
105-1023-006	M02062AB02AA0100010000000AAAAF	100	101.6 [6.20]	Straight	Square key, 5/16 x 5/16 x 1 1/4 inch
105-1022-006	M02049AB02AA0100010000000AAAAF	80	80.6 [4.92]	Straight	Square key, 5/16 x 5/16 x 1 1/4 inch
105-1015-006	M02049AB05AA0100010000000AAAAF	80	80.6 [4.92]	Splined	n/a
105-1009-006	M02062AB01AA0100010000000AAAAF	100	101.6 [6.20]	Straight	Woodruff key, 1/4 x 1 inch
105-1007-006	M02187AB03AA0100010000000AAAAF	305	306.6 [18.71]	TAPERED	Square key, 5/16 x 1 inch
105-1006-006	M02149AB03AA0100010000000AAAAF	245	244.3 [14.91]	TAPERED	Square key, 5/16 x 1 inch
105-1005-006	M02119AB03AA0100010000000AAAAF	195	194.8 [11.89]	TAPERED	Square key, 5/16 x 1 inch
105-1004-006	M02096AB03AA0100010000000AAAAF	160	158.1 [9.65]	TAPERED	Square key, 5/16 x 1 inch
105-1003-006	M02080AB03AA0100010000000AAAAF	130	130.6 [7.97]	TAPERED	Square key, 5/16 x 1 inch
105-1002-006	M02062AB03AA0100010000000AAAAF	100	101.6 [6.20]	TAPERED	Square key, 5/16 x 1 inch
105-1001-006	M02049AB03AA0100010000000AAAAF	80	80.6 [4.92]	TAPERED	Square key, 5/16 x 1 inch

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Wheel
Motor function	Standard
Mounting flange type	4 Bolt - Wheel
Main port thread type	UN / UNF
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
