Danfoss orbital motor quick selector Parts

Danfoss

114-1141-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AA00AG1000630002500AE00F

Danfoss

114-1131-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AA00AA0600001003000AP00F

Danfoss

114-1130-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AA00AG1000630002800AM00F

Danfoss

114-1122-006

MOTOR-ORBITAL,6000 SERIES 735 [45], M06450AA00AA02000000000000000F, M06450AA00AA02000000000000000F

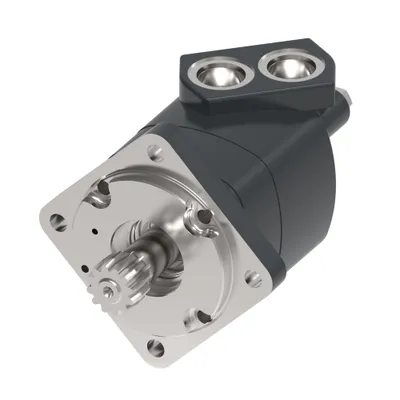

Danfoss

114-1090-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AA00AA0200000AB00000000F

Danfoss

114-1086-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AA00AB0700020000500AE00F

Danfoss

114-1084-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AA00AA11000000003000000F

Danfoss

114-1080-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AA00AA0600000003100AG00F

Danfoss

114-1079-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AA00AA0600000003000AG00F

Danfoss

114-1069-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AA00AA06000000000000000F

Danfoss

114-1065-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AA00AD04000000002000000F

Danfoss

114-1064-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AA00AA04000000002000000F

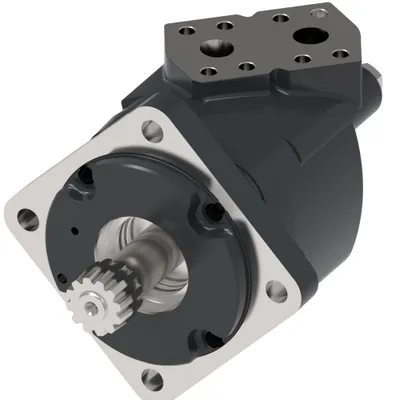

Danfoss

114-1056-006

MOTOR-ORBITAL,6000 SERIES 625 [38.1], M06381AA00AB02000000000000000F

Danfoss

114-1055-006

MOTOR-ORBITAL,6000 SERIES 625 [38.1], M06381AA00AA02000000000000000F

Danfoss

114-1047-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AA00AC0300000000000AA00F, M06300AA00AC0300000000000AA00F

Danfoss

114-1046-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AA00AC0300000000000AA00F

Danfoss

114-1037-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AA00AB02000000000000000F, M06120AA00AB02000000000000000F

Danfoss

114-1036-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AA00AA02000000000000000F

Danfoss

114-1035-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AA00AA02000000000000000F

Danfoss

114-1034-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AA00AA02000000000000000F

Danfoss

114-1033-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AA00AA02000000000000000F, M06190AA00AA02000000000000000F

Danfoss

114-1032-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AA00AA02000000000000000F

Danfoss

114-1031-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AA00AA02000000000000000F

Danfoss

114-1020-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AA00AA060000000010000AAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Main port dimension
114-1141-006	M06300AA00AG1000630002500AE00F	490	491.4 [29.99]	UN / UNF	3/4 - 16 UNF-2B SAE O-Ring port
114-1131-006	M06120AA00AA0600001003000AP00F	195	195.8 [11.95]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1130-006	M06300AA00AG1000630002800AM00F	490	491.4 [29.99]	UN / UNF	3/4 - 16 UNF-2B SAE O-Ring port
114-1122-006	M06450AA00AA02000000000000000F	735	737.4 [45.00]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1090-006	M06190AA00AA0200000AB00000000F	310	312.0 [19.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1086-006	M06300AA00AB0700020000500AE00F	490	491.4 [29.99]	Manifold	0.750 inch drilled hole
114-1084-006	M06300AA00AA11000000003000000F	490	491.4 [29.99]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1080-006	M06190AA00AA0600000003100AG00F	310	312.0 [19.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1079-006	M06120AA00AA0600000003000AG00F	195	195.8 [11.95]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1069-006	M06150AA00AA06000000000000000F	245	246.5 [15.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1065-006	M06239AA00AD04000000002000000F	390	391.7 [23.90]	UN / UNF	1 1/16 - 12 UNF-2B SAE O-Ring port
114-1064-006	M06120AA00AA04000000002000000F	195	195.8 [11.95]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1056-006	M06381AA00AB02000000000000000F	625	624.2 [38.09]	Manifold	0.750 inch drilled hole
114-1055-006	M06381AA00AA02000000000000000F	625	624.2 [38.09]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1047-006	M06300AA00AC0300000000000AA00F	490	491.4 [29.99]	BSP	G 1
114-1046-006	M06239AA00AC0300000000000AA00F	390	391.7 [23.90]	BSP	G 1
114-1037-006	M06120AA00AB02000000000000000F	195	195.8 [11.95]	Manifold	0.750 inch drilled hole
114-1036-006	M06600AA00AA02000000000000000F	985	982.7 [59.97]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1035-006	M06300AA00AA02000000000000000F	490	491.4 [29.99]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1034-006	M06239AA00AA02000000000000000F	390	391.7 [23.90]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1033-006	M06190AA00AA02000000000000000F	310	312.0 [19.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1032-006	M06150AA00AA02000000000000000F	245	246.5 [15.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1031-006	M06120AA00AA02000000000000000F	195	195.8 [11.95]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port
114-1020-006	M06150AA00AA060000000010000AAF	245	246.5 [15.04]	UN / UNF	1 5/16 - 12 UN-2B SAE O-Ring port

Common to all listed parts

Motor Series	6000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Short
Mounting flange type	4 Bolt - Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	127.0 x 12.5, 162.0, 14.4 [5.00 x 0.49, 6.38, 0.57]
Shaft type	None
Shaft dimension	n/a
