AC Servo Systems Parts
Compare AC Servo Systems
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Name | Model Code | Model | General specifications - Applicable servo amplifier | General specifications - Rated output |
|---|---|---|---|---|---|

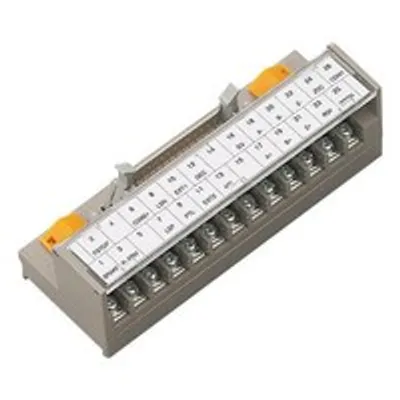

| OP-84411 | I/O Connector Terminal Block (26-pin) | OP-84411 | OP-84411 | — | — |
| SV2-LA5A | MECHATROLINK-III Conversion cable 0.5m | SV2-LA5A | SV2-LA5A | — | — |

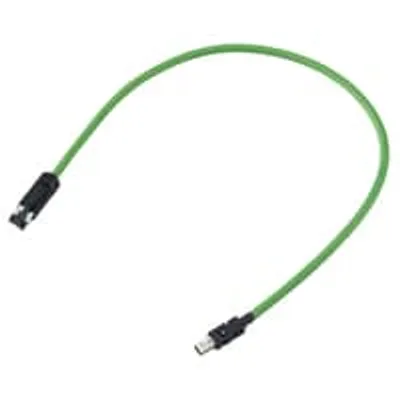

| SV2-L5A | MECHATROLINK-Ⅲ Conversion cable 5m | SV2-L5A | SV2-L5A | — | — |
| SV2-L3A | MECHATROLINK-Ⅲ Conversion cable 3m | SV2-L3A | SV2-L3A | — | — |
| SV2-L20A | MECHATROLINK-Ⅲ Conversion cable 20m | SV2-L20A | SV2-L20A | — | — |
| SV2-L1A | MECHATROLINK-Ⅲ Conversion cable 1m | SV2-L1A | SV2-L1A | — | — |
| SV2-L10A | MECHATROLINK-Ⅲ Conversion cable 10m | SV2-L10A | SV2-L10A | — | — |

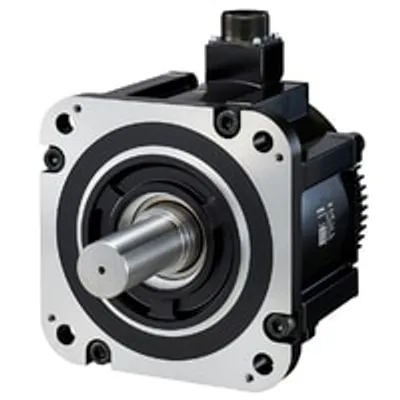

| SV2-B500AS | Straight axis Absolute 5kW | SV2-B500AS | SV2-B500AS | SV2-500L2 | 4.4 kW |
| SV2-B500AK | Axis with keyway Absolute 5kW | SV2-B500AK | SV2-B500AK | SV2-500L2 | 4.4 kW |
| SV2-B300AS | Straight axis Absolute 3kW | SV2-B300AS | SV2-B300AS | SV2-300L2, SV2-500L2 | SV2-300L2: 2.4 kW, SV2-500L2: 2.9 kW |
| SV2-B300AK | Axis with keyway Absolute 3kW | SV2-B300AK | SV2-B300AK | SV2-300L2, SV2-500L2 | SV2-300L2: 2.4 kW, SV2-500L2: 2.9 kW |

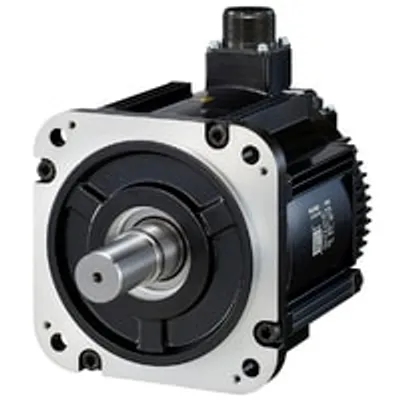

| SV2-B200AS | Straight axis Absolute 2kW | SV2-B200AS | SV2-B200AS | SV2-200L2 | 1.8 kW |
| SV2-B200AK | Axis with keyway Absolute 2kW | SV2-B200AK | SV2-B200AK | SV2-200L2 | 1.8 kW |
| SV2-B150AS | Straight axis Absolute 1.5kW | SV2-B150AS | SV2-B150AS | SV2-150L2 | 1.3 kW |

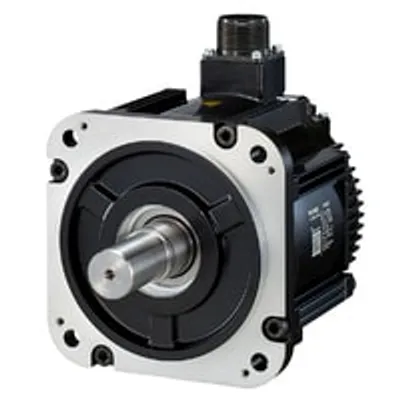

| SV2-B150AK | Axis with keyway Absolute 1.5kW | SV2-B150AK | SV2-B150AK | SV2-150L2 | 1.3 kW |

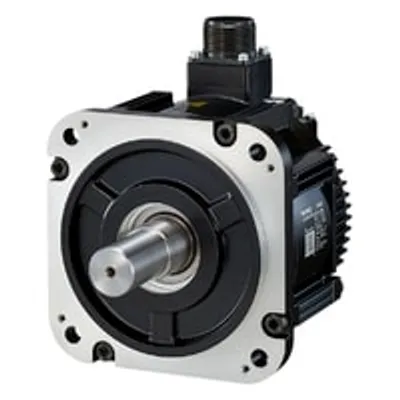

| SV2-B100AS | Straight axis Absolute 1kW | SV2-B100AS | SV2-B100AS | SV2-100L2 | 0.85 kW |
| SV2-B100AK | Axis with keyway Absolute 1kW | SV2-B100AK | SV2-B100AK | SV2-100L2 | 0.85 kW |
| SV2-B075AS | Straight axis Absolute 750W | SV2-B075AS | SV2-B075AS | SV2-075L2 | 750 W |
| SV2-B075AK | Axis with keyway Absolute 750W | SV2-B075AK | SV2-B075AK | SV2-075L2 | 750 W |
| SV2-B040AS | Straight axis Absolute 400W | SV2-B040AS | SV2-B040AS | SV2-040L2 | 400 W |

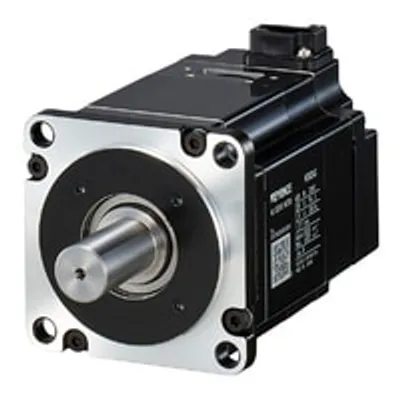

| SV2-B040AK | Axis with keyway Absolute 400W | SV2-B040AK | SV2-B040AK | SV2-040L2 | 400 W |
| SV2-B020AS | Straight axis Absolute 200W | SV2-B020AS | SV2-B020AS | SV2-020L2 | 200 W |

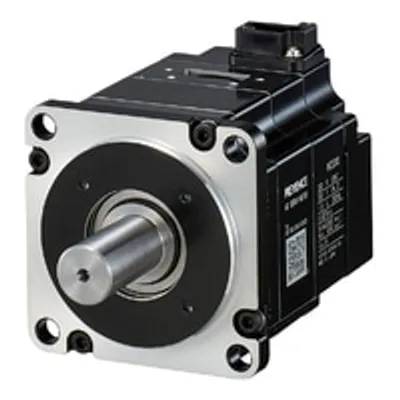

| SV2-B020AK | Axis with keyway Absolute 200W | SV2-B020AK | SV2-B020AK | SV2-020L2 | 200 W |
| SV2-B010AS | Straight axis Absolute 100W | SV2-B010AS | SV2-B010AS | SV2-010L2 | 100 W |
Common to all listed parts
| Series Title | AC Servo Systems |
| Series Code | SV2 series |
