Keyence
ER-M05NCInductive Proximity Sensor Parts
Compare Inductive Proximity Sensor
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code | Model | Detecting distance | Response frequency | Weight |
|---|---|---|---|---|---|
| ER-M05NC | ER-M05NC | ER-M05NC | 1.5 mm 0.06" ±10% *2 | 170 Hz *3 *4 | Approx. 25 g0.88 oz |
| ER-M05N | ER-M05N | ER-M05N | 1.5 mm 0.06" ±10% *2 | 170 Hz *3 *4 | Approx. 70 g2.47 oz |
| ER-M045PC | ER-M045PC | ER-M045PC *1 | 1.5 mm 0.06" ±10% *3 | 170 Hz *4 *5 | Approx. 20 g0.71 oz |
| ER-M045P | ER-M045P | ER-M045P | 1.5 mm 0.06" ±10% *2 | 170 Hz *3 *4 | Approx. 65 g2.29 oz |
| ER-M045NC | ER-M045NC | ER-M045NC | 1.5 mm 0.06" ±10% *2 | 170 Hz *3 *4 | Approx. 20 g0.71 oz |
| ER-M045N | ER-M045N | ER-M045N | 1.5 mm 0.06" ±10% *2 | 170 Hz *3 *4 | Approx. 65 g2.29 oz |
| ER-GW18PC | ER-GW18PC | ER-GW18PC *1 | — | 2 Hz *4 *5 | Approx. 70 g 2.47 oz |
| ER-GW18P | ER-GW18P | ER-GW18P | — | 2 Hz *3 *4 | Approx. 110 g 3.88 oz |
| ER-GW18N | ER-GW18N | ER-GW18N | — | 2 Hz *3 *4 | Approx. 110 g 3.88 oz |

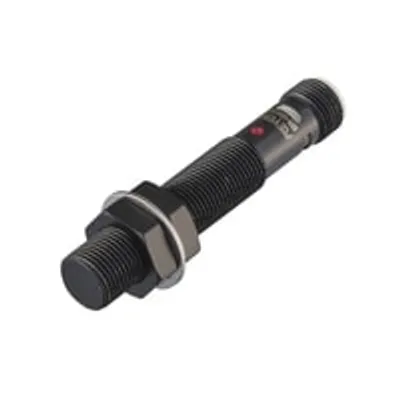

| ER-GW12PC | ER-GW12PC | ER-GW12PC *1 | — | 2 Hz *4 *5 | Approx. 35 g 1.24 oz |
| ER-GW12P | ER-GW12P | ER-GW12P | — | 2 Hz *3 *4 | Approx. 75 g 2.65 oz |
| ER-GW12N | ER-GW12N | ER-GW12N | — | 2 Hz *3 *4 | Approx. 75 g 2.65 oz |
| ER-GW08PC | ER-GW08PC | ER-GW08PC *1 | — | 2 Hz *4 *5 | Approx. 20 g 0.71 oz |
| ER-GW08P | ER-GW08P | ER-GW08P | — | 2 Hz *3 *4 | Approx. 65 g 2.29 oz |
| ER-GW08N | ER-GW08N | ER-GW08N | — | 2 Hz *3 *4 | Approx. 65 g 2.29 oz |
| ER-GS12PC | ER-GS12PC | ER-GS12PC | 2 mm 0.08" ±10% *2 | 150 Hz *3 *4 | Approx. 35 g 1.24 oz |
| ER-GS12P03C | ER-GS12P03C | ER-GS12P03C | 2 mm 0.08" ±10% *2 | 150 Hz *3 *4 | Approx. 50 g 1.77 oz |
| ER-GS12P | ER-GS12P | ER-GS12P | 2 mm 0.08" ±10% *2 | 150 Hz *3 *4 | Approx. 75 g 2.65 oz |
| ER-GS12N03C | ER-GS12N03C | ER-GS12N03C | 2 mm 0.08" ±10% *2 | 150 Hz *3 *4 | Approx. 50 g 1.77 oz |
| ER-GS12N | ER-GS12N | ER-GS12N | 2 mm 0.08" ±10% *2 | 150 Hz *3 *4 | Approx. 75 g 2.65 oz |
| ER-GR18PC | ER-GR18PC | ER-GR18PC *1 | 10 mm 0.39" ±10% *3 | 50 Hz *4 *5 | Approx. 70 g 2.47 oz |
| ER-GR18P | ER-GR18P | ER-GR18P | 10 mm 0.39" ±10% *2 | 50 Hz *3 *4 | Approx. 110 g 3.88 oz |
| ER-GR18N | ER-GR18N | ER-GR18N | 10 mm 0.39" ±10% *2 | 50 Hz *3 *4 | Approx. 110 g 3.88 oz |
| ER-GR12PC | ER-GR12PC | ER-GR12PC *1 | 7 mm 0.28" ±10% *3 | 100 Hz *4 *5 | Approx. 35 g 1.24 oz |
Common to all listed parts
| Series Title | Inductive Proximity Sensor |
| Series Code | ER series |
| Hysteresis distance | 15% or less of detecting distance |
| Power supply - Power voltage | 16 to 30 VDC (including 10% or less ripple (P-P)), Class 2 |
| Environmental resistance - Relative humidity | Up to 95% RH (no condensation) |
