ACOPOSinverter P66 - 3-phase 525 to 600 V Parts
Compare ACOPOSinverter P66 - 3-phase 525 to 600 V
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Specified on nameplate | Apparent power (at 600 VAC) | Power dissipation at nominal load and nominal clock frequency | Min. resistance value (external) | Weight |
|---|---|---|---|---|---|
| 8I66T600075.00-000 | 0.75 kW (1 HP) | 1.2 kVA | 31 W | 96 Ω | 1.3 kg |
| 8I66T600150.00-000 | 1.5 kW (2 HP) | 2.2 kVA | 40 W | 64 Ω | 1.3 kg |
| 8I66T600220.00-000 | 2.2 kW (3 HP) | 3 kVA | 50 W | 64 Ω | 2 kg |
| 8I66T600400.00-000 | 4 kW (5 HP) | 5.7 kVA | 72 W | 44 Ω | 2.5 kg |
| 8I66T600550.00-000 | 5.5 kW (7.5 HP) | 7.4 kVA | 114 W | 34 Ω | 3.5 kg |
| 8I66T600750.00-000 | 7.5 kW (10 HP) | 10.6 kVA | 136 W | 23 Ω | 3.5 kg |

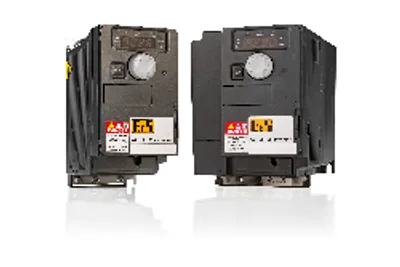

| 8I66T601100.00-000 | 11 kW (15 HP) | 14.5 kVA | 197 W | 24 Ω | 6.5 kg |
| 8I66T601500.00-000 | 15 kW (20 HP) | 20.8 kVA | 228 W | 24 Ω | 6.5 kg |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Mains input voltage | 3x 525 VAC -15% to 600 VAC +10% |
| Frequency | 50 to 60 Hz ±5% |
| Max. assumed short-circuit current (Isc); (short-circuit current at connection point) | 22 kA |
| Integrated EMC filter | No |
