Standard shuttles Parts
Compare Standard shuttles
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum propulsion force | Repeat accuracy of several shuttles without compensation – Interface on top | Repeat accuracy of several shuttles without compensation – Interface on side | Dimensions – Depth | Weight |
|---|---|---|---|---|---|

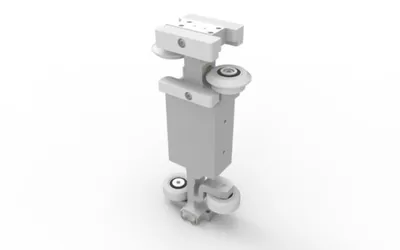

| 8F1SC.100.100000-1 | 85 N | ±200 µm (note: Reference: Dowel hole) | ±120 µm (note: Reference: Dowel pin) | 44 mm | 0.7 kg |
| 8F1SC.201.100000-1 | 170 N | ±200 µm (note: Reference: Dowel hole) | ±120 µm (note: Reference: Dowel pin) | 47.3 mm | 1.2 kg |

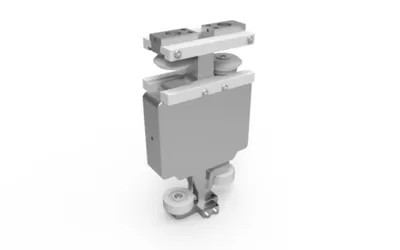

| 8F1SC.203.100000-1 | 170 N | ±200 µm (note: Reference: Dowel hole) | ±120 µm (note: Reference: Dowel pin) | 40.2 mm | 0.8 kg |

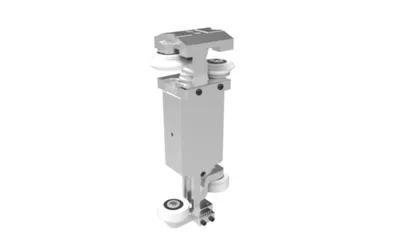

| 8F1SA.100.10000I-1 | 85 N | ±310 µm (note: Reference: Dowel hole) | ±180 µm (note: Reference: Dowel pin) | 47.3 mm | 0.7 kg |
| 8F1SA.201.10000I-1 | 170 N | ±310 µm (note: Reference: Dowel hole) | ±180 µm (note: Reference: Dowel pin) | 47.3 mm | 1.2 kg |
| 8F1SC.102.100000-1 | 85 N | ±200 µm (note: Reference: Dowel hole) | ±120 µm (note: Reference: Dowel pin) | 38.5 mm | 0.5 kg |
Common to all listed parts
| Repeat accuracy of single shuttle – Interface on top | ±10 µm |
| Repeat accuracy of single shuttle – Interface on side | ±10 µm |
| Repeat accuracy of single shuttle – Interface on bottom | ±10 µm |
| Max. magnet temperature | 60°C |
| Temperature – Nominal | 5°C to 40°C |
| Temperature – Storage | -25°C to 55°C |
| Temperature – Transport | -25°C to 60°C |
| Relative humidity – Operation | 5 to 85%, non-condensing |
