Cold plate or feed-through mounting Parts
Compare Cold plate or feed-through mounting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Certifications – CRA (Cyber Resilience Act) | DC bus capacitance | Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level | Energy efficiency (IE classification) – Nominal losses in standby mode | Weight |
|---|---|---|---|---|---|
| 8BVI0014HCD0.000-1 | Evaluation ongoing | 165 µF | 0.19 A eff per 1000 m | 8.8 W | Approx. 2.3 kg |
| 8BVI0028HCD0.000-1 | Evaluation ongoing | 165 µF | 0.38 A eff per 1000 m | 8.8 W | Approx. 2.3 kg |
| 8BVI0055HCD0.000-1 | Evaluation ongoing | 330 µF | 0.76 A eff per 1000 m | 8.8 W | Approx. 2.3 kg |

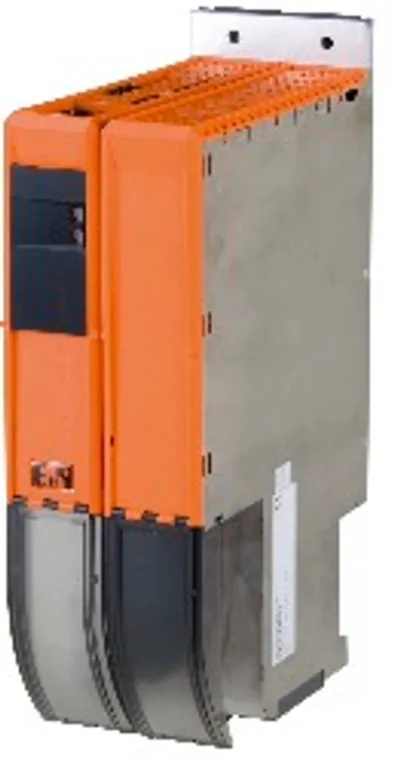

| 8BVI0110HCD0.000-1 | Evaluation ongoing | 660 µF | 1.51 A eff per 1000 m | 10 W | Approx. 4.1 kg |
| 8BVI0220HCD0.000-1 | Evaluation ongoing | 1320 µF | 2.2 A eff per 1000 m | 10 W | Approx. 4.4 kg |
| 8BVI0014HCD0.000-3 | In preparation | 165 µF | 0.19 A eff per 1000 m | 9.8 W | Approx. 2.3 kg |

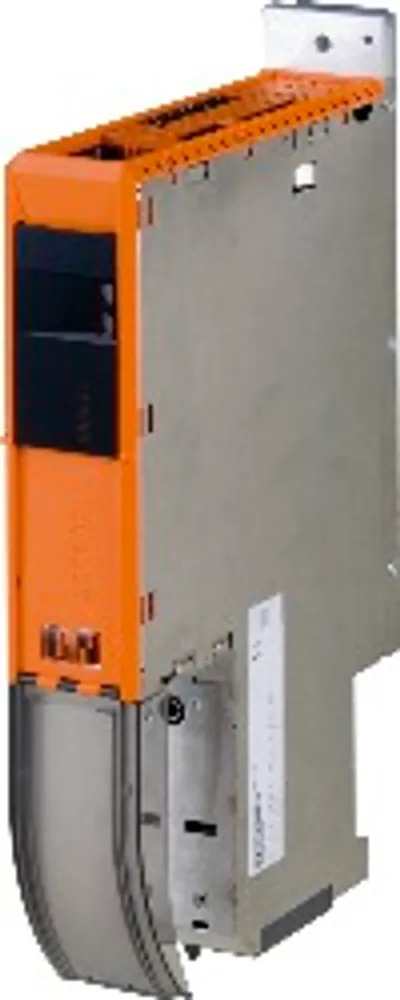

| 8BVI0028HCD0.000-3 | In preparation | 165 µF | 0.38 A eff per 1000 m | 9.8 W | Approx. 2.3 kg |
| 8BVI0110HCD0.000-3 | In preparation | 660 µF | 1.51 A eff per 1000 m | 11 W | Approx. 4.1 kg |
| 8BVI0055HCD0.000-3 | In preparation | 330 µF | 0.76 A eff per 1000 m | 9.8 W | Approx. 2.3 kg |
| 8BVI0220HCD0.000-3 | In preparation | 1320 µF | 2.2 A eff per 1000 m | 11.3 W | Approx. 4.4 kg |
Common to all listed parts
| Support – Dynamic node allocation (DNA) | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – Functional safety | Yes |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cooling and mounting type | Cold plate or pass-through mounting |
| Slots for plug-in modules | 2 |
| Voltage – Nominal | 750 VDC |
