SIRIUS 3RB electronic overload relays Parts
























Compare SIRIUS 3RB electronic overload relays
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | thermal current | Net Weight | adjustable current response value current of the current-dependent overload release | operational current rated value | design of the fuse link — for short-circuit protection of the main circuit — with type of coordination 1 required |
|---|---|---|---|---|---|
| 3RB2066-2GC2 | 250 A | 1.64 kg | 55 ... 250 A | 250 A | gG: 500 A, Class L: 700 A |

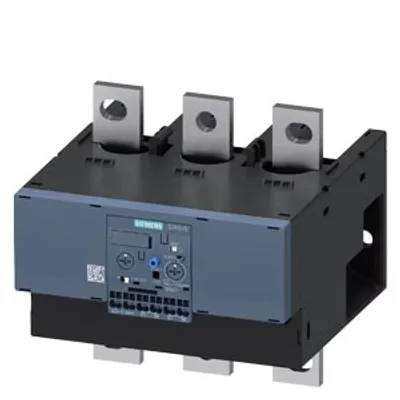

| 3RB2163-4GF2 | 250 A | 1.613 kg | 55 ... 250 A | 250 A | gG: 500 A, Class L: 700 A |
| 3RB3026-2SB0 | 12 A | 0.246 kg | 3 ... 12 A | 12 A | gG: 63 A, RK5: 45 A |
| 3RB3026-2RE0 | 0.4 A | 0.282 kg | 0.1 ... 0.4 A | 0.4 A | gG: 35 A, RK5: 3 A |
| 3RB3026-2RB0 | 0.4 A | 0.3 kg | 0.1 ... 0.4 A | 0.4 A | gG: 35 A, RK5: 3 A |
| 3RB3026-2QE0 | 25 A | 0.294 kg | 6 ... 25 A | 25 A | gG: 125 A, RK5: 100 A |
| 3RB3026-2QB0 | 25 A | 0.263 kg | 6 ... 25 A | 25 A | gG: 125 A, RK5: 100 A |
| 3RB3143-4UD0 | 50 A | 600 g | 12.5 ... 50 A | 50 A | gG: 200 A |
| 3RB3143-4UB0 | 50 A | 532.38 g | 12.5 ... 50 A | 50 A | gG: 200 A |

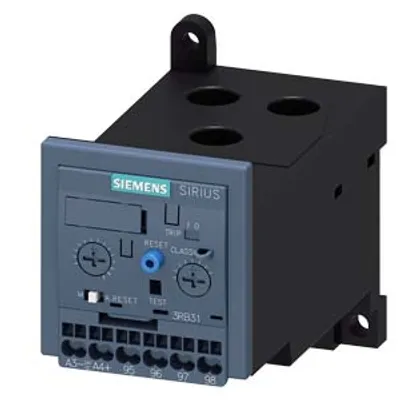

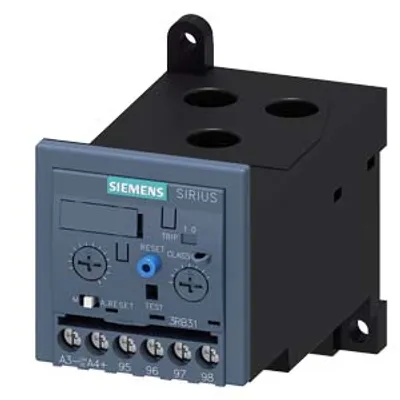

| 3RB3133-4WX1 | 80 A | 282.83 g | 20 ... 80 A | 80 A | gG: 250 A, RK5: 300 A |
| 3RB3133-4WW1 | 80 A | 0.262 kg | 20 ... 80 A | 80 A | gG: 250 A, RK5: 300 A |

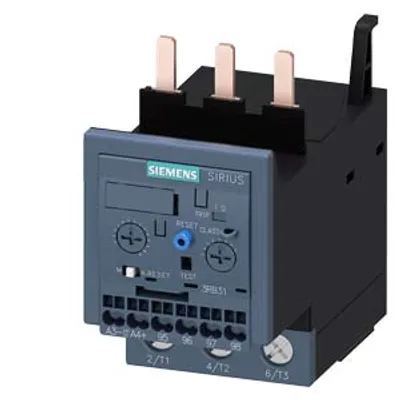

| 3RB3133-4WD0 | 80 A | 0.372 kg | 20 ... 80 A | 80 A | gG: 250 A, RK5: 300 A |

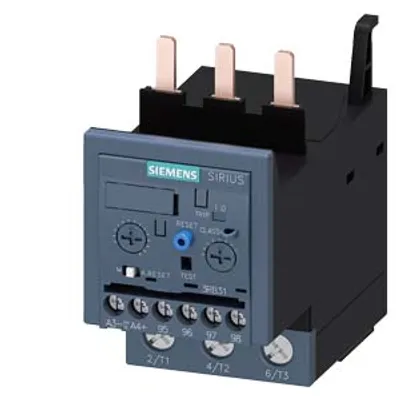

| 3RB3133-4WB0 | 80 A | 0.406 kg | 20 ... 80 A | 80 A | gG: 250 A, RK5: 300 A |
| 3RB3133-4UX1 | 50 A | 0.259 kg | 12.5 ... 50 A | 50 A | gG: 250 A |
| 3RB3046-2XB0 | 115 A | 527.38 g | 32 ... 115 A | 115 A | gG: 315 A |
| 3RB3046-2UX1 | 50 A | 0.297 kg | 12.5 ... 50 A | 50 A | gG: 200 A |
| 3RB3046-2UW1 | 50 A | 0.302 kg | 12.5 ... 50 A | 50 A | gG: 200 A |
| 3RB3046-2UD0 | 50 A | 187.38 g | 12.5 ... 50 A | 50 A | gG: 200 A |

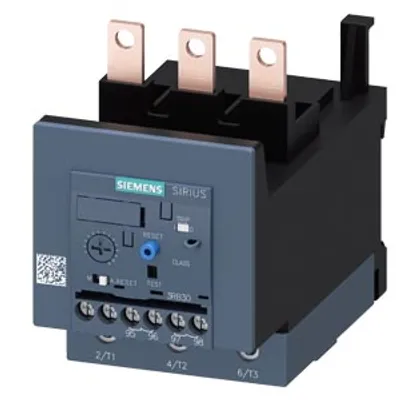

| 3RB3046-2UB0 | 50 A | 527.38 g | 12.5 ... 50 A | 50 A | gG: 200 A |

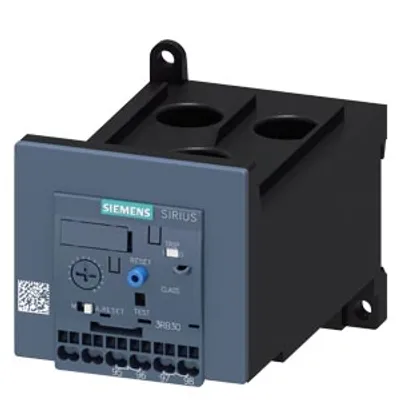

| 3RB3046-1XX1 | 115 A | 299.88 g | 32 ... 115 A | 115 A | gG: 315 A |

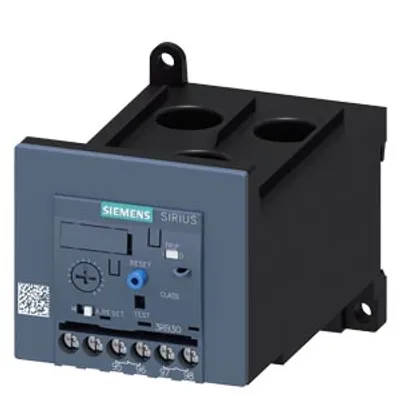

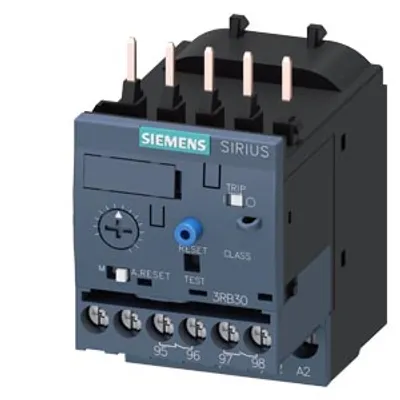

| 3RB3046-1XW1 | 115 A | 300.88 g | 32 ... 115 A | 115 A | gG: 315 A |
| 3RB3016-2PB0 | 4 A | 0.22 kg | 1 ... 4 A | 4 A | gG: 35 A, RK5: 15 A |

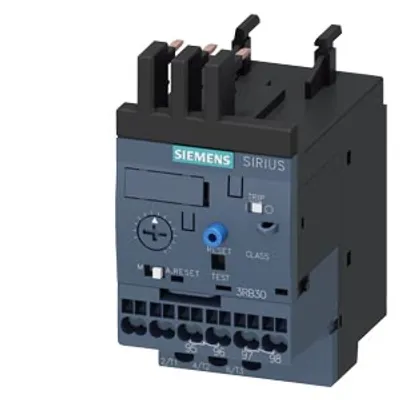

| 3RB3016-2NE0 | 1.25 A | 0.202 kg | 0.3 ... 1.25 A | 1.25 A | gG: 35 A, RK5: 6 A |
| 3RB3016-2NB0 | 1.25 A | 0.204 kg | 0.3 ... 1.25 A | 1.25 A | gG: 35 A, RK5: 6 A |
Common to all listed parts
| product designation | solid-state overload relay |
| type of calculation of power loss current-dependent | quadratic |
| maximum permissible voltage for protective separation — in networks with ungrounded star point between auxiliary and auxiliary circuit | 300 V |
| maximum permissible voltage for protective separation — in networks with grounded star point between auxiliary and auxiliary circuit | 300 V |
| maximum permissible voltage for protective separation — in networks with ungrounded star point between main and auxiliary circuit | 600 V |
| maximum permissible voltage for protective separation — in networks with grounded star point between main and auxiliary circuit | 690 V |
| vibration resistance | 1 … 6 Hz, 15 mm; 6 … 500 Hz, 20 m/s²; 10 cycles |
| recovery time after overload trip — with automatic reset typical | 3 min |
