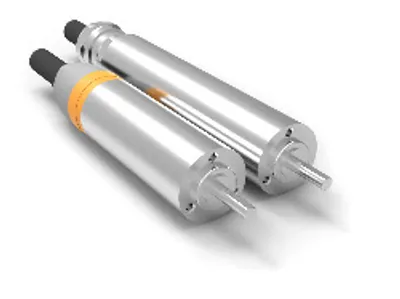

8WSB1 (size 1; IP54 and IP66/67; direct mounted gearbox) Parts
Compare 8WSB1 (size 1; IP54 and IP66/67; direct mounted gearbox)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Stall torque M 0 [Nm] | Maximum speed n max [rpm] | Moment of inertia J [kgcm 2] | Number of gear stages | Gear ratio i |
|---|---|---|---|---|---|
| 8WSB11.ee004jjQop0 | 0.008 | 9000 | 0.0055 | 1 | 4 |
| 8WSB11.ee021jjQop0 | 0.007 | 8925 | 0.0021 | 2 | 21 |
| 8WSB11.ee064jjQop0 | 0.006 | 8960 | 0.0017 | 3 | 64 |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Number of pole pairs | 4 |
| Nominal current I N [A] | 0.32 |
| Stall current I 0 [A] | 0.37 |
| Torque constant K T [Nm/A] | 0.023 |
| Voltage constant K E [V/1000 rpm] | 1.48 |
