8WSB2 (size 2; IP54 and IP66/67; direct mounted gearbox) Parts
Available on requestB&R 8WSB21.ee004jjQop0 – Synchronous motor 8WSB21 with direct gearbox mountingMPN: 8WSB21.ee004jjQop0 · B&R
Price on request
Request a quote
Available on requestB&R 8WSB21.ee016jjQop0 – Synchronous motor 8WSB21 with direct gearbox mountingMPN: 8WSB21.ee016jjQop0 · B&R
Price on request
Request a quote

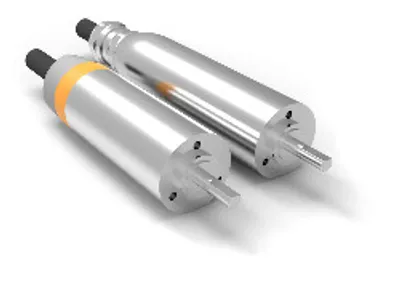

Available on requestB&R 8WSB21.ee064jjQop0 – Synchronous motor 8WSB21 with direct gearbox mountingMPN: 8WSB21.ee064jjQop0 · B&R
Price on request
Request a quoteCompare 8WSB2 (size 2; IP54 and IP66/67; direct mounted gearbox)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal torque M n [Nm] | Stall torque M 0 [Nm] | Stall current I 0 [A] | Maximum torque M max [Nm] | Maximum current I max [A] |
|---|---|---|---|---|---|
| 8WSB21.ee004jjQop0 | 0.025 | 0.025 | 0.74 | 0.05 | 1.6 |
| 8WSB21.ee016jjQop0 | 0.024 | 0.027 | 0.84 | 0.06 | 1.9 |
| 8WSB21.ee064jjQop0 | 0.019 | 0.019 | 0.87 | 0.04 | 1.2 |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Number of pole pairs | 4 |
| Torque constant K T [Nm/A] | 0.037 |
| Voltage constant K E [V/1000 rpm] | 2.37 |
| Stator resistance R 2ph [Ω] | 5.23 |
| Stator inductance L 2ph [mH] | 2.22 |
