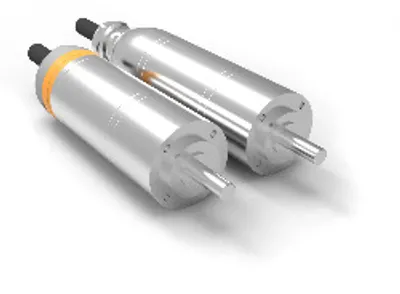

8WSB3 (size 3; IP54 and IP66/67; direct mounted gearbox) Parts
Compare 8WSB3 (size 3; IP54 and IP66/67; direct mounted gearbox)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal torque M n [Nm] | Maximum torque M max [Nm] | Maximum current I max [A] | Moment of inertia J [kgcm 2] | Number of gear stages |
|---|---|---|---|---|---|
| 8WSB32.ee004jjQop0 | 0.093 | 0.2 | 4.1 | 0.0207 | 1 |
| 8WSB32.ee016jjQop0 | 0.088 | 0.25 | 5.6 | 0.0177 | 2 |
| 8WSB32.ee064jjQop0 | 0.063 | 0.09 | 2.1 | 0.0167 | 3 |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Number of pole pairs | 4 |
| Maximum speed n max [rpm] | 8000 |
| Torque constant K T [Nm/A] | 0.056 |
| Voltage constant K E [V/1000 rpm] | 3.55 |
| Stator resistance R 2ph [Ω] | 1.3 |
