Hygiene (IP69K) Parts
Compare Hygiene (IP69K)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal torque M n [Nm] | Stall torque M 0 [Nm] | Stall current I 0 [A] | Maximum torque M max [Nm] | Maximum current I max [A] |
|---|---|---|---|---|---|
| 8WSB43.ee004S5Kop0 | 0.225 | 0.275 | 3.1 | 0.8 | 10 |
| 8WSB43.ee016S5Kop0 | 0.231 | 0.263 | 3 | 0.53 | 6.2 |

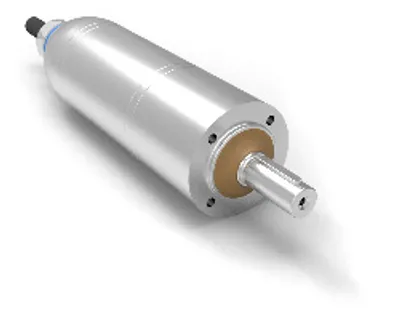

| 8WSB43.ee050S5Kop0 | 0.084 | 0.084 | 1.1 | 0.17 | 2 |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Number of pole pairs | 4 |
| Torque constant K T [Nm/A] | 0.095 |
| Voltage constant K E [V/1000 rpm] | 6.07 |
| Stator resistance R 2ph [Ω] | 0.72 |
| Stator inductance L 2ph [mH] | 1.34 |
