Cylindrical Fuse Links and Cylindrical Fuse Holders Parts
Compare Cylindrical Fuse Links and Cylindrical Fuse Holders
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | power loss [W] | power loss [W] for rated value of the current at AC in hot operating state per pole | operational current rated value | Net Weight |
|---|---|---|---|---|---|
| 3NW8101-1 | Cylindrical fuse link | 0.6 W | 1 W | 6 A | 21 g |
| 3NW8012-1 | Cylindrical fuse link | 1.8 W | 2 W | 32 A | 8 g |
| 3NW8011-1 | Cylindrical fuse link | 0.1 W | 0 W | 1 A | 7.7 g |

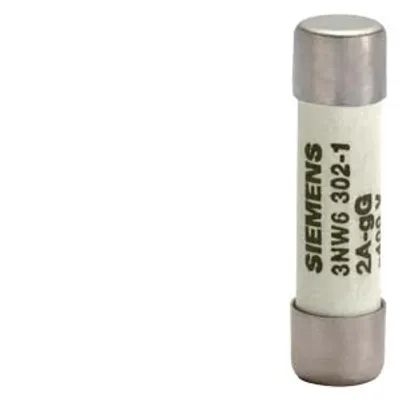

| 3NW6307-1 | Cylindrical fuse link | 1.7 W | 2 W | 20 A | 4 g |

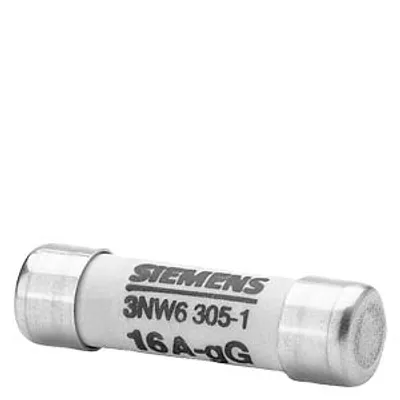

| 3NW6305-1 | Cylindrical fuse link | 1.1 W | 1 W | 16 A | 4 g |
| 3NW6224-1 | Cylindrical fuse link | 7.5 W | 8 W | 80 A | 56 g |

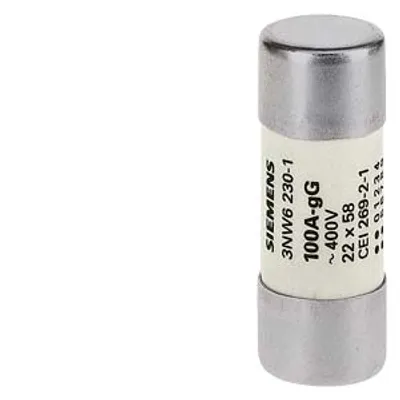

| 3NW6222-1 | Cylindrical fuse link | 6.8 W | 7 W | 63 A | 56 g |
| 3NW6220-1 | Cylindrical fuse link | 6.5 W | 6 W | 50 A | 54.5 g |
| 3NW6217-1 | Cylindrical fuse link | 4.5 W | 5 W | 40 A | 56 g |

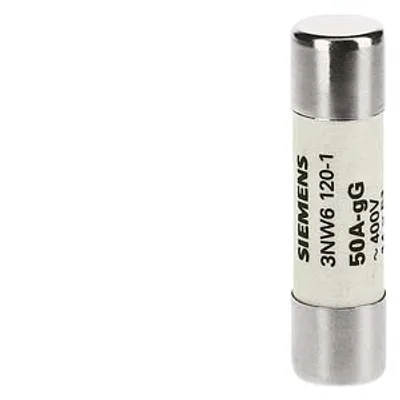

| 3NW6105-1 | Cylindrical fuse link | 2.1 W | 2 W | 16 A | 22.1 g |
| 3NW6104-1 | Cylindrical fuse link | 1.7 W | 2 W | 4 A | 21 g |
| 3NW6008-1 | Cylindrical fuse link | 1.1 W | 1 W | 8 A | 9 g |

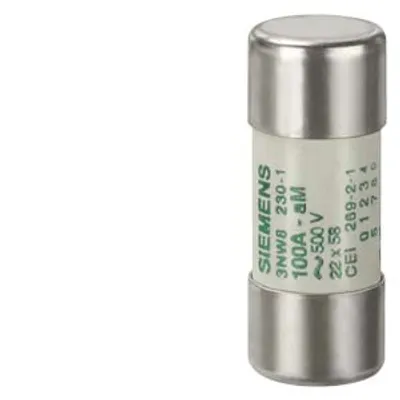

| 3NW8230-1 | Cylindrical fuse link | 5.6 W | 6 W | 100 A | 56.8 g |

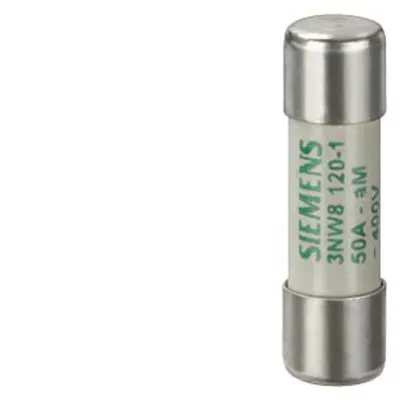

| 3NW8120-1 | Cylindrical fuse link | 3.7 W | 4 W | 50 A | 21 g |
| 3NW8117-1 | Cylindrical fuse link | 2 W | 2 W | 40 A | 21 g |
| 3NW8105-1 | Cylindrical fuse link | 1.1 W | 1 W | 16 A | 21 g |

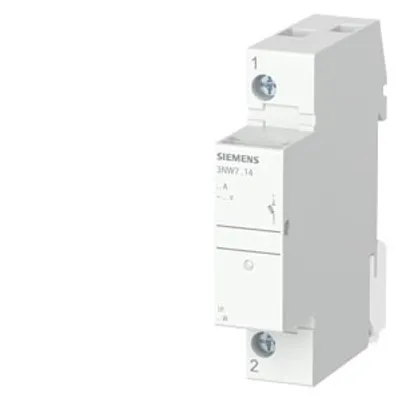

| 3NW7014 | Cylindrical fuse holder | — | — | — | 0.065 kg |
| 3NW6303-1 | Cylindrical fuse link | 0.7 W | 1 W | 10 A | 4 g |
| 3NW6212-1 | Cylindrical fuse link | 4.1 W | 4 W | 32 A | 54.5 g |
| 3NW6210-1 | Cylindrical fuse link | 2.9 W | 3 W | 25 A | 52 g |
| 3NW6207-1 | Cylindrical fuse link | 2.5 W | 3 W | 20 A | 52 g |
| 3NW6205-1 | Cylindrical fuse link | 2.4 W | 2 W | 16 A | 50 g |
| 3NW8000-1 | Cylindrical fuse link | 0.1 W | 0 W | 1 A | 8 g |

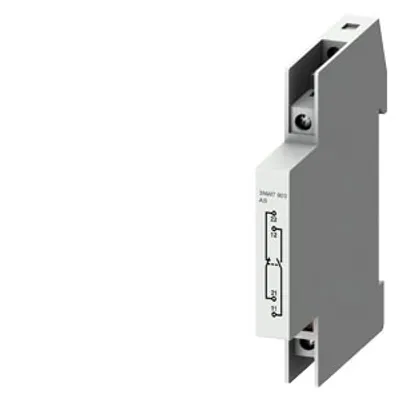

| 3NW7903 | auxiliary switches | — | — | — | 50 g |
