Cold plate or feed-through mounting Parts
Compare Cold plate or feed-through mounting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Installed load | Inrush current | Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level | Peak current per motor connection | Peak power output |
|---|---|---|---|---|---|
| 8EI013HCS10.XXXX-1 | Max. 13.5 kVA | Max. 50 A | 1.3 A eff per 1000 m | 32.5 A eff | 16.25 kW |
| 8EI017HCS10.XXXX-1 | Max. 18 kVA | Max. 50 A | 1.7 A eff per 1000 m | 42.5 A eff | 21.25 kW |
| 8EI024HCS10.XXXX-1 | Max. 18.7 kVA | Max. 100 A | 2.4 A eff per 1000 m | 60 A eff | 25 kW |
| 8EI034HCS10.XXXX-1 | Max. 26.4 kVA | Max. 100 A | 3.4 A eff per 1000 m | 85 A eff | 35 kW |
| 8EI044HCS10.XXXX-1 | Max. 30.5 kVA | Max. 100 A | 4.4 A eff per 1000 m | 110 A eff | 45 kW |
| 8EI1X6HCS10.XXXX-1 | Max. 1.75 kVA | Max. 45 A | 0.16 A eff per 1000 m | 4.5 A eff | 1.75 kW |
| 8EI1X6MCS10.XXXX-1 | Max. 1 kVA | Max. 22 A | 0.16 A eff per 1000 m | 4.5 A eff | 1 kW |

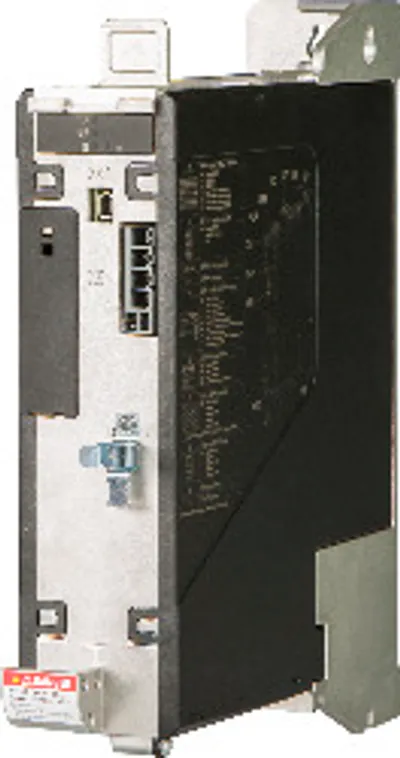

| 8EI2X2HCS10.XXXX-1 | Max. 2.5 kVA | Max. 45 A | — | 6 A eff | 2.5 kW |
| 8EI2X2MCS10.XXXX-1 | Max. 1.25 kVA | Max. 22 A | 0.22 A eff per 1000 m | 6 A eff | 1.25 kW |
| 8EI4X5HCS10.XXXX-1 | Max. 5 kVA | Max. 45 A | 0.45 A eff per 1000 m | 12.25 A eff | 5 kW |
| 8EI4X5MCS10.XXXX-1 | Max. 2.5 kVA | Max. 22 A | 0.45 A eff per 1000 m | 12.25 A eff | 2.5 kW |
| 8EI8X8HCS10.XXXX-1 | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24 A eff | 10 kW |
| 8EI8X8MCS10.XXXX-1 | Max. 5 kVA | Max. 22 A | 0.88 A eff per 1000 m | 24 A eff | 5 kW |
Common to all listed parts
| Support – Dynamic node allocation (DNA) | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Slots for plug-in modules | 1 |
| Network configurations | TT, TN, TN-S, TN-C-S, IT |
| Frequency | 50 / 60 Hz ±4% |
