Cold-Plate oder Durchsteckmontage Parts

B&R

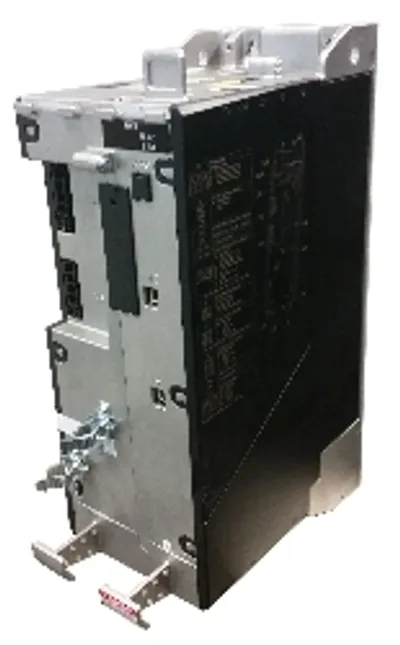

ACOPOS P3 servo drive, 3x 200-480 VAC, 2x 17 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 2x 22 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 1x 110-230 VAC, 3x 200-230 VAC

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 2x 4.5 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 1x 110-230 VAC, 3x 200-230 VAC

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 2x 8.8 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 1x 110-230 VAC, 3x 200-230 VAC

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 2x 2.2 A, SafeMOTION

Compare Cold-Plate oder Durchsteckmontage

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Installed load	Inrush current	DC bus capacitance	Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level	Peak current per motor connection
8EI017HCDS0.XXXX-1	Max. 26.4 kVA	100 A	1680 µF	1.7 A eff per 1000 m	42.5 / 42.5 A eff
8EI022HCDS0.XXXX-1	Max. 30.5 kVA	100 A	1680 µF	2.2 A eff per 1000 m	55 / 55 A eff
8EI2X2MCDS0.XXXX-1	Max. 2.5 kVA	Max. 22 A	1880 µF	0.22 A eff per 1000 m	6 / 6 A eff
8EI4X5HCDS0.XXXX-1	Max. 10 kVA	Max. 45 A	470 µF	0.45 A eff per 1000 m	12.25 / 12.25 A eff
8EI4X5MCDS0.XXXX-1	Max. 5 kVA	Max. 22 A	1880 µF	0.45 A eff per 1000 m	12.25 / 12.25 A eff
8EI8X8HCDS0.XXXX-1	Max. 10 kVA	Max. 45 A	470 µF	0.88 A eff per 1000 m	24 / 24 A eff
8EI8X8MCDS0.XXXX-1	Max. 5 kVA	Max. 22 A	1880 µF	0.88 A eff per 1000 m	24 / 24 A eff
8EI2X2HCDS0.XXXX-1	Max. 5 kVA	Max. 45 A	470 µF	0.22 A eff per 1000 m	6 / 6 A eff

Support – Dynamic node allocation (DNA)	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	In preparation
Slots for plug-in modules	1
Network configurations	TT, TN, TN-S, TN-C-S, IT
