Sensor cables Parts
Compare Sensor cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Accessories | Dimensions – Length |
|---|---|---|
| X67CA0D40.0020 | M8 sensor cable, 3-pin, straight, 2 m | 2 m |
| X67CA0D40.0050 | M8 sensor cable, 3-pin, straight, 5 m | 5 m |
| X67CA0D40.0100 | M8 sensor cable, 3-pin, straight, 10 m | 10 m |
| X67CA0D40.0150 | M8 sensor cable, 3-pin, straight, 15 m | 15 m |
| X67CA0D40.0200 | M8 sensor cable, 3-pin, straight, 20 m | 20 m |

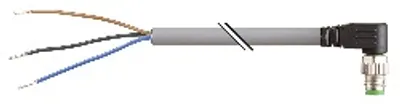

| X67CA0D50.0020 | M8 sensor cable, 3-pin, angled, 2 m | 2 m |
| X67CA0D50.0050 | M8 sensor cable, 3-pin, angled, 5 m | 5 m |
| X67CA0D50.0100 | M8 sensor cable, 3-pin, angled, 10 m | 10 m |
| X67CA0D50.0150 | M8 sensor cable, 3-pin, angled, 15 m | 15 m |
| X67CA0D50.0200 | M8 sensor cable, 3-pin, angled, 20 m | 20 m |
Common to all listed parts
| Cable cross section – AWG | 3x 22 AWG |
| Cable cross section – mm² | 3x 0.34 mm² |
| Note | PVC- and silicone-free; PWIS- and halogen-free |
| Durability | Good chemical and oil resistance; Flame-retardant; Good UV and ozone resistance |
| Outer jacket – Material | Polyurethane (PUR) |
| Outer jacket – Color | Gray |
| Wires – Wire insulation | Polypropylene (PP) 9Y |
| Wires – Wire colors | Brown, black, blue |
