Compare Basic Type 4 light curtain, body protection
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product ID (Pilz order number) | Height of protected field | Height dimension | Net weight | GTIN |
|---|
| 632124 | 632124 | 1200 | 1204 mm | 3426 g | 4046548090253 |
| 632125 | 632125 | 1500 | 1504 mm | 4232 g | 4046548090260 |
| 632133 | 632133 | 900 | 904 mm | 2618 g | 4046548090307 |
| 632123 | 632123 | 900 | 904 mm | 2621 g | 4046548090246 |

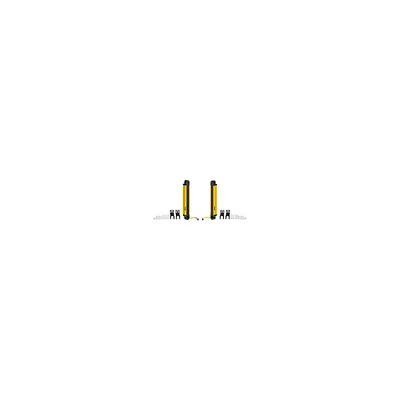

| 632122 | 632122 | 750 | 754 mm | 2218 g | 4046548090239 |
| 632120 | 632120 | 450 | 454 mm | 1413 g | 4046548090215 |
| 632134 | 632134 | 1200 | 1204 mm | 3420 g | 4046548090314 |
| 632121 | 632121 | 600 | 604 mm | 1815 g | 4046548090222 |
| 632135 | 632135 | 1500 | 1504 mm | 4221 g | 4046548090321 |
| 632130 | 632130 | 450 | 454 mm | 1415 g | 4046548090277 |
| 632131 | 632131 | 600 | 604 mm | 1816 g | 4046548090284 |
| 632132 | 632132 | 750 | 754 mm | 2217 g | 4046548090291 |
Common to all listed parts
| Approval | CE, UKCA, cULus Listed, KCs, TÜV, EAC (Eurasian) |
| ESPE type | 4 |
| Sensor principle | Infrarot |
| Resolution protection type | Körper |
| Lifecycle | Active (current Pilz product) |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Used wavelength range | 850 nm |
