Siemens 1FW3285-2AG74-5DY2-Z S32 – SIMOTICS T Complete torque motor 1FW3 270rpm, 138.5kW
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1047 kg |
Shipping & availability
When can 1FW3285-2AG74-5DY2-Z S32 be shipped?
1FW3285-2AG74-5DY2-Z S32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1FW3285-2AG74-5DY2-Z S32 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1FW3285-2AG74-5DY2-Z S32 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1FW3285-2AG74-5DY2-Z S32, subject to availability and destination.
SIMOTICS T Complete torque motor 1FW3 270rpm, 138.5kW, 4900Nm, 241A 437V; Water cooling; incl. regreasing system (opt. K40) Incremental encoder sin/cos 1 VPP 2048 S/R with C and D track (encoder IC2048S/R) Encoder mounting via belt; IMB 35 Terminal box transverse right on the top; Water connection on the left Design as extruder motor with screw intake and integrated thrust bearing S32: max. axial force in KN: 200 Screw diameter in mm: 60; Screw intake: N 55x 3x 30 X17x 9H DIN5480 utilizable length 87mm; Cylinder fl. (centr.): 60 Axial bearing type FAG: 29428E
More Siemens parts

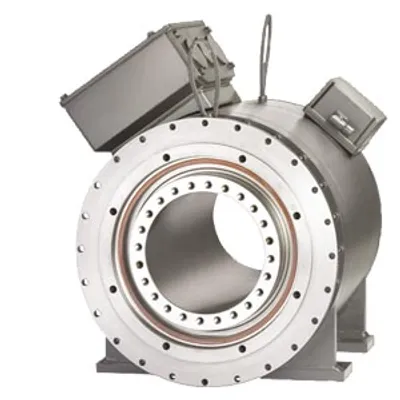

Available on requestSiemens 1FW3206-3.P..-.... – SIMOTICS T complete torque motor 1FW3 710rpm, 103kW 1380Nm
Available on requestSiemens 1FW3208-1.E..-.... – SIMOTICS T Complete torque motor 1FW3 140rpm, 29.3kW 2000Nm
Available on requestSiemens 1FW3283-2.G..-.... – SIMOTICS T Complete torque motor 1FW3 220rpm, 79.5kW 3450Nm

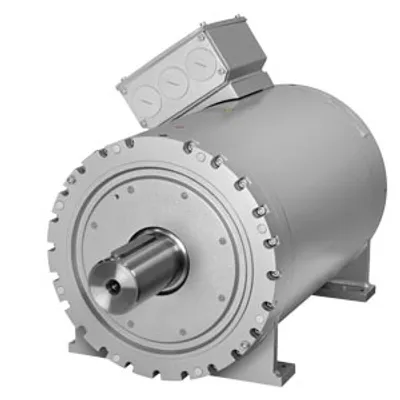

Available on requestSiemens 1FW3283-3.J..-.... – SIMOTICS T Complete torque motor 1FW3 350rpm
Available on requestSiemens 1FW3285-2.E..-.... – SIMOTICS T Complete torque motor 1FW3 140rpm, 73.3kW 5000Nm
Available on requestSiemens 1FW3287-2.E..-.... – SIMOTICS T Complete torque motor 1FW3 140rpm
Available on requestSiemens 1FW3287-3.J..-.... – SIMOTICS T Complete torque motor 1FW3 350rpm

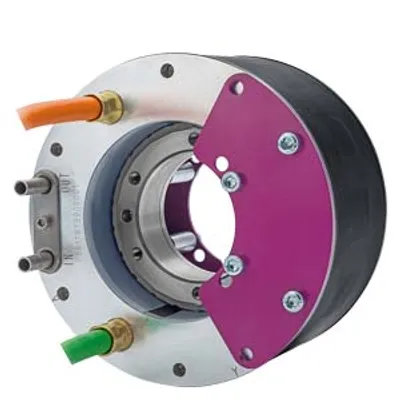

Available on requestSiemens 1FW6050-0TB03-0FC3 – SIMOTICS T torque motor; components 3-phase synchronous…
