Extension Box, 2-channel communication interface, serial, RS422/RS485, M12
Angebot anfordern
Kurzübersicht
| Verfügbarkeit | Bestätigung auf Anfrage |
| Kategorie | Kommunikation IE6xxx |
| Lebenszyklus | active |
| Garantie | 12 Monate (neu) · 3 Monate (gebraucht/aufbereitet) |
Versand & Verfügbarkeit
Wann kann IE6022 versendet werden?
IE6022 wird auf Anfrage beschafft — fordern Sie ein Angebot an, wir bestätigen die genaue Verfügbarkeit und Lieferzeit für dieses konkrete Teil.
Kann ich IE6022 persönlich abholen?
Eine Abholung in unserem Lager in Groningen, Niederlande ist eventuell möglich — kontaktieren Sie uns vor der Bestellung, um Verfügbarkeit und einen Abholtermin zu klären.
Ist Expressversand verfügbar?
Ja — erwähnen Sie es bei Ihrer Angebotsanfrage für IE6022, wir nennen Ihnen in unserer Antwort die Expressversandoptionen.
Unser Betrieb steht still und wir brauchen es dringend — können Sie helfen?
Bei einem kritischen Ausfall kontaktieren Sie uns direkt unter +31 (0)50-7110348 oder sales@partnerplc.com — wir prüfen dann Same-Day-Kurier- oder Taxi-/Hotshot-Lieferung für IE6022, abhängig von Verfügbarkeit und Zielort.
The IE6022 serial interface module allows the connection of devices with a RS422 or RS485 interface. The module transmits the data in a fully transparent manner to the higher-level automation device. The data is transferred via the fieldbus using a
Spezifikationen
Specifications
| Data transfer channels | TxD and RxD, full/half duplex |
| Data transfer rates | 1200…115,200 baud, 9600 baud (8 bits, no parity, 1 stop bit) is preset |
| Connection method | M12, screw type |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Bit transfer | with differential signal |
| Line impedance | 120 Ω |
| Cable length | max. 500 m twisted pair |
| Common-mode voltage UCM | max. -7…+12 V to ground |
| Data buffer | 128 bytes receive buffer, 16 bytes transmit buffer |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Current consumption from US (without sensor current) | 40 mA |
| Bit width in the process image | input/output: 3 x 8 bit user data, 1 x 8 bit control/status (up to 5 x 8 bit user data are possible) |
| Electrical isolation | RS485/control voltage: 500 V, to the fieldbus: yes, via IP-Link |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
Weitere Beckhoff-Teile

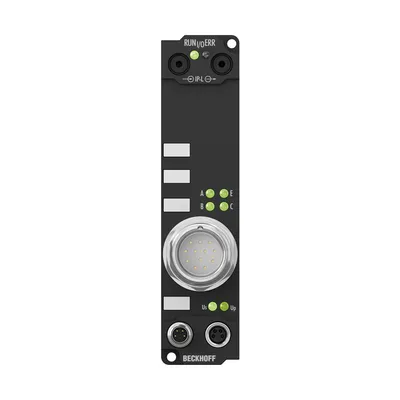

Auf Anfrage erhältlichExtension Box, 1-channel encoder interface, SSI, M23
