ACOPOSinverter P76 - 3-phase 380 to 500 V Parts
Available on requestB&R 8I76T400037.00-000 – Base device for ACOPOSinverter P76 and P74newMPN: 8I76T400037.00-000 · B&R
Price on request
Request a quote
Available on requestB&R 8I76T400055.00-000 – Base device for ACOPOSinverter P76 and P74newMPN: 8I76T400055.00-000 · B&R
Price on request
Request a quote
Available on requestB&R 8I76T400075.00-000 – Base device for ACOPOSinverter P76 and P74newMPN: 8I76T400075.00-000 · B&R
Price on request
Request a quote
Available on requestB&R 8I76T400110.00-000 – Base device for ACOPOSinverter P76 and P74newMPN: 8I76T400110.00-000 · B&R
Price on request
Request a quote
Available on requestB&R 8I76T400150.00-000 – Base device for ACOPOSinverter P76 and P74newMPN: 8I76T400150.00-000 · B&R
Price on request
Request a quote
Available on requestB&R 8I76T400220.00-000 – Base device for ACOPOSinverter P76 and P74newMPN: 8I76T400220.00-000 · B&R
Price on request
Request a quote
Available on requestB&R 8I76T400300.00-000 – Base device for ACOPOSinverter P76 and P74newMPN: 8I76T400300.00-000 · B&R
Price on request
Request a quote
Available on requestB&R 8I76T400400.00-000 – Base device for ACOPOSinverter P76 and P74newMPN: 8I76T400400.00-000 · B&R
Price on request
Request a quote

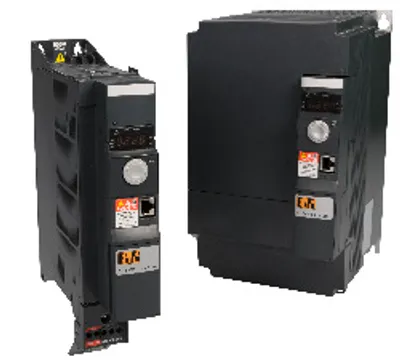

Available on requestB&R 8I76T400550.00-000 – Base device for ACOPOSinverter P76 and P74newMPN: 8I76T400550.00-000 · B&R
Price on request
Request a quote
Available on requestB&R 8I76T400750.00-000 – Base device for ACOPOSinverter P76 and P74newMPN: 8I76T400750.00-000 · B&R
Price on request
Request a quote
Available on requestB&R 8I76T401100.00-000 – Base device for ACOPOSinverter P76 and P74newMPN: 8I76T401100.00-000 · B&R
Price on request
Request a quote
Available on requestB&R 8I76T401500.00-000 – Base device for ACOPOSinverter P76 and P74newMPN: 8I76T401500.00-000 · B&R
Price on request
Request a quoteCompare ACOPOSinverter P76 - 3-phase 380 to 500 V
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Specified on nameplate | Apparent power (at 500 VAC) | Power dissipation at nominal load and nominal clock frequency | Max. transient current for 60 s " data-placement="top" data-html="true" data-container="body" data-content="The inverter is designed to operate for a maximum of 60 seconds at 150% nominal current."> | Min. resistance value (external) |
|---|---|---|---|---|---|
| 8I76T400037.00-000 | 0.37 kW (0.5 HP) | 1.2 kVA | 27 W | 2.3 A | 80 Ω |
| 8I76T400055.00-000 | 0.55 kW (0.75 HP) | 1.6 kVA | 31 W | 2.9 A | 80 Ω |
| 8I76T400075.00-000 | 0.75 kW (1 HP) | 2.1 kVA | 37 W | 3.5 A | 80 Ω |
| 8I76T400110.00-000 | 1.1 kW (1.5 HP) | 2.9 kVA | 50 W | 4.5 A | 54 Ω |
| 8I76T400150.00-000 | 1.5 kW (2 HP) | 3.8 kVA | 63 W | 6.2 A | 54 Ω |
| 8I76T400220.00-000 | 2.2 kW (3 HP) | 5.3 kVA | 78 W | 8.3 A | 54 Ω |
| 8I76T400300.00-000 | 3 kW (4 HP) | 6.8 kVA | 100 W | 10.7 A | 54 Ω |
| 8I76T400400.00-000 | 4 kW (5 HP) | 8.6 kVA | 125 W | 14.3 A | 36 Ω |
| 8I76T400550.00-000 | 5.5 kW (7.5 HP) | 13.2 kVA | 233 W | 21.5 A | 27 Ω |
| 8I76T400750.00-000 | 7.5 kW (10 HP) | 17 kVA | 263 W | 25.5 A | 27 Ω |
| 8I76T401100.00-000 | 11 kW (15 HP) | 23.6 kVA | 403 W | 41.6 A | 16 Ω |
| 8I76T401500.00-000 | 15 kW (20 HP) | 30.7 kVA | 480 W | 49.5 A | 16 Ω |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Mains input voltage | 3x 380 VAC -15% to 500 VAC +10% |
| Frequency | 50 to 60 Hz ±5% |
| With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C1 environment 1 (public power network) | - |
| With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C2 environment 1 (public power network) | C2 level of 4 to 12 kHz with 5 m cable |
