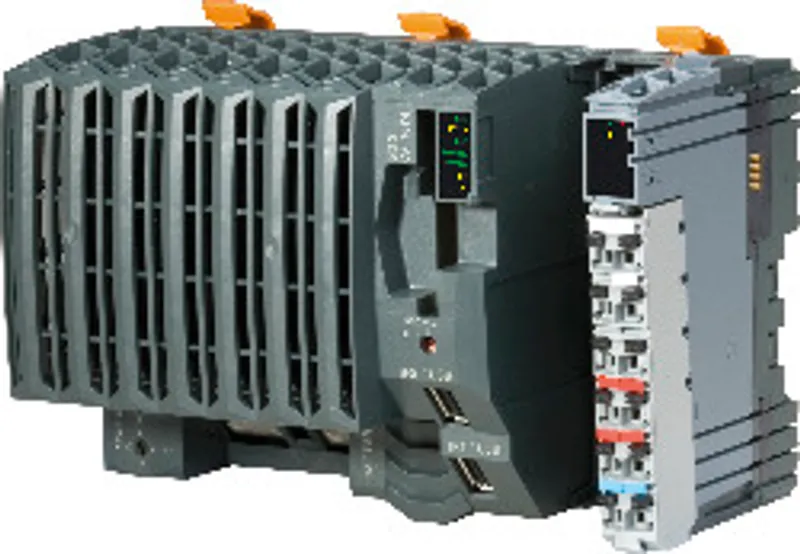

B&R X20CP1684
Teklif İsteyin
Hızlı bilgiler
| Uygunluk | Talep üzerine onaylanır |
| Kategori | X20 PLC |
| Yaşam döngüsü | active |
| Garanti | 12 ay (yeni) · 3 ay (kullanılmış/yenilenmiş) |
| Ağırlık | 480 kg |
Gönderim ve uygunluk
X20CP1684 ne zaman gönderilebilir?
X20CP1684 talep üzerine temin ediliyor — bir teklif isteyin, bu spesifik ürün için tam uygunluk ve gönderim süresini onaylayalım.
X20CP1684 ürününü şahsen teslim alabilir miyim?
Groningen, Hollanda'daki depomuzdan şahsen teslim alma mümkün olabilir — sipariş vermeden önce uygunluğu kontrol etmek ve bir teslim alma zamanı ayarlamak için bizimle iletişime geçin.
Ekspres teslimat mevcut mu?
Evet — X20CP1684 için teklif isterken bunu belirtin, yanıtımızda ekspres gönderim seçeneklerini de sunalım.
Fabrikamız durdu ve buna acilen ihtiyacımız var — yardımcı olabilir misiniz?
Kritik bir arıza durumunda doğrudan +31 (0)50-7110348 numarasından veya sales@partnerplc.com adresinden bizimle iletişime geçin — uygunluk ve varış yerine bağlı olarak X20CP1684 için aynı gün kurye veya özel taşıma seçeneklerini değerlendirebiliriz.
This controller is based on Intel Atom processor technology and used for applications with the highest performance requirements. It rounds off the top end of the X20 controller product family.The basic configuration includes USB, Ethernet, POWERLINK V2 and removable CompactFlash. The standard Ethernet interface supports gigabit communication. For even more real-time network performance, the onboard POWERLINK interface supports poll-response chaining mode (PRC).In addition, 1 slot can be used for additional interface modules to increase flexibility.
Teknik özellikler
Specifications
| Interfaces | 1x RS232, 1x Ethernet, 1x POWERLINK (V2), 2x USB, 1x X2X Link |
| System module | Controller |
| B&R ID code | 0xF9EA |
| Cooling | Fanless |
| Status indicators | Overload, operating status, module status, RS232 data transfer |
| Battery | Yes, using LED status indicator and software |
| CPU function | Yes, using LED status indicator |
| CompactFlash | Yes, using LED status indicator |
| Ethernet | Yes, using LED status indicator |
| POWERLINK | Yes, using LED status indicator |
| Temperature | Yes, using software register |
| Controller redundancy | No |
| Storage health data support | Yes |
| ACOPOS support | Yes |
| Visual Components support | Yes |
| Multi-core support | No |
| Power consumption without interface module and USB | 6.9 W |
| Power consumption for X2X Link power supply | 1.42 W |
| Internal I/O | 0.6 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| Input voltage | 24 VDC -15% / +20% (nominal voltage: 24 VDC) (max. input power at nominal voltage: 240 W) |
| Input current | Max. 1.5 A at 24 VDC |
| Fuse | Required line fuse: Max. 10 A slow-blow |
| Reverse polarity protection | Yes |
| Nominal output power | 7 W |
| Parallel connection | Yes |
| Redundant operation | Yes |
| Nominal output voltage | 24 VDC |
| Permissible contact load | 10 A |
| RS232 data transfer | Yes, using LED status indicator |
| Module run/error | Yes, using LED status indicator and software |
| Overload | Yes, using LED status indicator and software |
| I/O supply - I/O power supply | No |
| CPU/X2X Link supply - CPU/X2X Link power supply | Yes |
| CompactFlash slot | 1 |
| Real-time clock | Nonvolatile, resolution 1 s, -20 to 20 ppm accuracy at 25°C |
| FPU | Yes |
| Type | USB 1.1/2.0 |
| Clock frequency | 400 MHz (compatible). |
| Data code | 24 kB |
| Program code | 32 kB |
| L2 cache | 1 MB |
| Integrated I/O processor | Processes I/O data points in the background |
| Modular interface slots | 1 |
| Remanent variables | Max. 512 kB |
| Shortest task class cycle time | 400 µs |
| Typical instruction cycle time | 0.0044 µs |
| Battery monitoring | Yes |
| Lithium battery | During operation: 4 years PLC switched off: Min. 2 years at 23°C ambient temperature |
| RAM | 512 MB LPDDR4 SDRAM |
| User RAM | 1 MB SRAM |
| Data retention | 10 years |
| Guaranteed | 40 TB |
| Results for 5 years | 21.9 GB/day |
| Guaranteed erase/write cycles | 20,000 |
| Error-correcting code (ECC) | Yes |
| Signal | Ethernet |
| Variant | Type A |
| Max. distance | 900 m |
| Transfer rate | 100 Mbit/s |
| Line length | Max. 100 m between 2 stations (segment length) |
| Physical layer | 100BASE-TX |
| Half-duplex | Yes |
| Full-duplex | POWERLINK mode: No / Ethernet mode: Yes |
| Autonegotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Fieldbus | X2X Link master |
| Max. output current | 0.5 A |
| Electrical isolation | Ethernet (IF2), POWERLINK (IF3) and X2X (IF6) isolated from each other, from other interfaces and from PLC |
| Horizontal | Yes |
| Vertical | Yes |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | See section "Derating". |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Operation | 5 to 95%, non-condensing |
| Note | Order application memory (CompactFlash) separately Backup battery included in delivery X20 end cover plate (right) included in delivery 12-pin X20 terminal block included in delivery Interface module slot covers included in delivery |
| Width | 150 mm |
| Height | 99 mm |
| Depth | 85 mm |
| Weight | 480 g |
