Floor standing polyester enclosure, PanelSeT PLA, plain door, completely sealed, 1250x1250x420mm, IP65, IK10
Richiedi un preventivo
In breve
| Disponibilità | Conferma su richiesta |
| Categoria | PanelSeT PLA |
| Ciclo di vita | active |
| Garanzia | 12 mesi (nuovo) · 3 mesi (usato/rigenerato) |
| Peso | 58 kg |
Spedizione e disponibilità
Quando può essere spedito NSYPLA12124G?
NSYPLA12124G viene reperito su richiesta — richiedi un preventivo e ti confermeremo disponibilità e tempi di consegna esatti per questa unità specifica.
Posso ritirare NSYPLA12124G di persona?
Il ritiro presso il nostro magazzino di Groningen, Paesi Bassi, potrebbe essere possibile — contattaci prima dell'ordine per verificare disponibilità e concordare un orario di ritiro.
È disponibile la consegna espressa?
Sì — menzionalo nella richiesta di preventivo per NSYPLA12124G e includeremo le opzioni di spedizione espressa nella nostra risposta.
Il nostro impianto è fermo e ci serve con urgenza: potete aiutarci?
In caso di guasto critico, contattaci direttamente al +31 (0)50-7110348 o a sales@partnerplc.com — valuteremo un corriere in giornata o una consegna dedicata per NSYPLA12124G, in base a disponibilità e destinazione.
This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It comes with a sealed top and bottom, assembled with side parts The enclosure has nominal dimensions of 1250mm in height, 1250mm in width, and 420mm in depth It is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments, including outdoor and industrial settings The enclosure is available in grey (RAL 7035) It consists of two side parts, two plain front doors, two rear panels, and is designed for easy access to the equipment inside The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a 5mm double-bar insert
Specifiche
Specifications
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLA |
| Nominal height | 1250 mm |
| Nominal width | 1250 mm |
| Nominal depth | 420 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel |
| Body type | Sealed top and bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 2 door(s) |
| Door opening side | Right and left (120 °) |
| Lock type | 4 points lock, 5 mm double-bar |
| Accessibility for operation | Front, Rear |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL 508 A |
| NEMA degree of protection | NEMA 1, NEMA 12, NEMA 2, NEMA 13 |
| Product certifications | DNV Marine, Veritas, UL/cUL listed |
| Electrical insulation class | Class II |
| IP degree of protection | IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 45.500 cm |
| Package 1 Width | 126.000 cm |
| Package 1 Length | 127.500 cm |
| Package 1 Weight | 58.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 139.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 130.000 cm |
| Package 2 Weight | 128.000 kg |
| Warranty | 18 months |
Altri componenti Schneider Electric

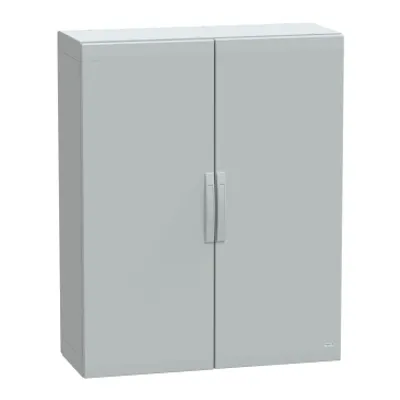

Disponibile su richiestaFloor standing polyester enclosure, PanelSeT PLA, plain door, completely sealed, 1250x1000x420mm, IP65, IK10

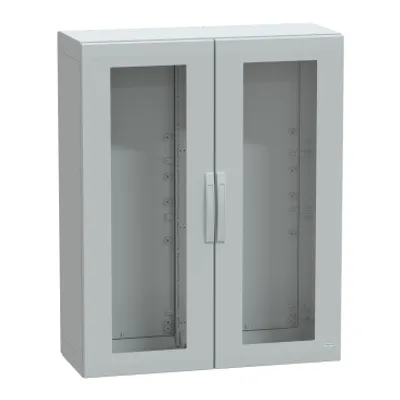

Disponibile su richiestaFloor standing polyester enclosure, PanelSeT PLA, glazed door, completely sealed, 1250x1000x420mm, IP65, IK08

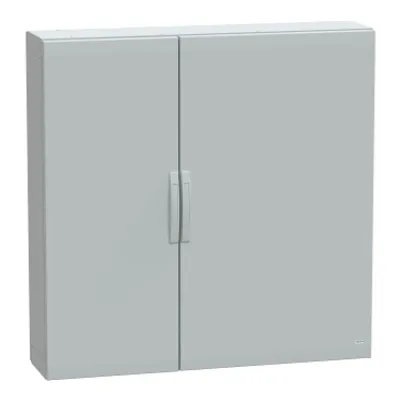

Disponibile su richiestaFloor standing polyester enclosure, PanelSeT PLA, plain door, completely sealed, 1250x1250x320mm, IP65, IK10

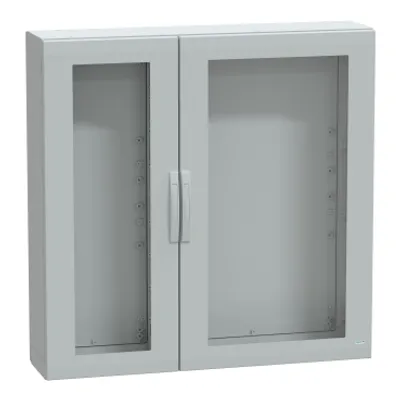

Disponibile su richiestaFloor standing polyester enclosure, PanelSeT PLA, glazed door, completely sealed, 1250x1250x320mm, IP65, IK08

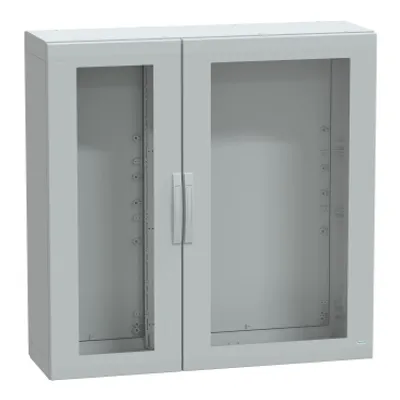

Disponibile su richiestaFloor standing polyester enclosure, PanelSeT PLA, glazed door, completely sealed, 1250x1250x420mm, IP65, IK08

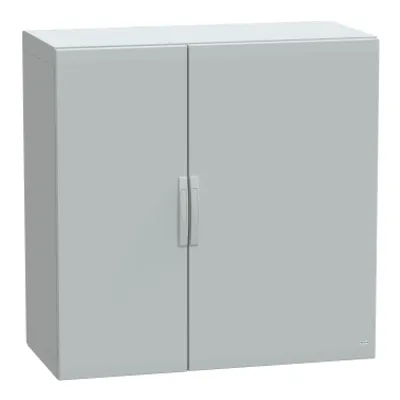

Disponibile su richiestaFloor standing polyester enclosure, PanelSeT PLA, plain door, completely sealed, 1250x1250x620mm, IP65, IK10
