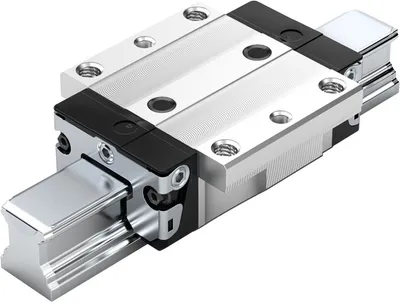

BALL RUNNER BLOCK ALUMINUM KWD-035-FNS-C0-N-1
Richiedi un preventivo
In breve
| Disponibilità | Conferma su richiesta |
| Categoria | High-precision ball runner block BSHP |
| Ciclo di vita | active |
| Garanzia | 12 mesi (nuovo) · 3 mesi (usato/rigenerato) |
Spedizione e disponibilità
Quando può essere spedito R163139420?
R163139420 viene reperito su richiesta — richiedi un preventivo e ti confermeremo disponibilità e tempi di consegna esatti per questa unità specifica.
Posso ritirare R163139420 di persona?
Il ritiro presso il nostro magazzino di Groningen, Paesi Bassi, potrebbe essere possibile — contattaci prima dell'ordine per verificare disponibilità e concordare un orario di ritiro.
È disponibile la consegna espressa?
Sì — menzionalo nella richiesta di preventivo per R163139420 e includeremo le opzioni di spedizione espressa nella nostra risposta.
Il nostro impianto è fermo e ci serve con urgenza: potete aiutarci?
In caso di guasto critico, contattaci direttamente al +31 (0)50-7110348 o a sales@partnerplc.com — valuteremo un corriere in giornata o una consegna dedicata per R163139420, in base a disponibilità e destinazione.
The aluminum ball runner block is highly precise and has a reduced weight compared to the steel version. Additionally, it is characterized by the following product features:
Size 35
Format FNS: Width = flange, length = normal, height = standard
Runner block body made of aluminum
Preload class C0: Preload-free
Accuracy class N: Standard
Without ball chain
With initial lubrication and preservation
Roller bearing grease Dynalub 510
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version
Overall length of the runner block = 110.5 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Area of application: For lightweight design – for compensating low tolerances with connected structures
Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection
Extra-compact lightweight design 60% less gravity due to aluminum compared to the ball runner blocks made of steel
Maximum precision
Patented entry zone increases the travel accuracy up to a factor of six
Can be used on all SNS ball guide rails
Lube connection with metal thread on all sides
Improved rigidity under lift-off and side loading conditions due to two additional mounting screw holes at the center of the ball runner block
Attachments on the ball runner block can be mounted from above and below
Limitless interchangeability as all ball guide rail systems can be combined at will with all ball runner block versions within each accuracy class.
Ball runner block pre-lubricated at the factory
Minimum quantity lubrication with integrated reservoir for oil lubrication
Predrilled holes on the Ball Runner Block for pinned fitting
Enables greater parallelism and height offsets of mounting bases
Smooth, quiet running thanks to optimally designed ball return and guideway
Accuracy classes H and N are combinable with all rails in each accuracy class
Long-term lubrication is possible over several years
Specifiche
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 35 |
| Format | FNS - flange, normal, standard height |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Aluminum |
| Preload class | C0 - Without preload (clearance) |
| Accuracy class | N - Normal |
| Seal | SS - Standard seal |
| Ball chain | Without ball chain (standard) |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 100.0 |
| Length of runner block [mm] | 110.5 |
| Height of runner block [mm] | 40.4 |
| Height runner block with guide rail [mm] | 48.0 |
| Lubrication | Pre-lubricated, preserved |
| Maximum dynamic load Fmax [N] | 16200 |
| Maximum acceleration rate amax [m/s²] | 500.0 |
| Note: Max. acceleration amax | If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup> |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Maximum permissible torsional moment Mt max [Nm] | 345 |
| Maximum permissible longitudinal load moment ML max [Nm] | 170 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Friction coefficient μ | 0.002 ... 0.003 |
| Note: friction coefficient μ | Without friction of seal |
| Weight [kg] | 0.75 |
| Dynamic load capacity C50 [N] | 65300.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic load capacity C100 [N] | 51800.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt50 [Nm] | 1400.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 1110.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 910.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 720.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Pitch T guide rail [mm] | 80 |
| Dimension A (profiled rail systems) [mm] | 100 |
| Dimension A1 (profiled rail systems) [mm] | 50 |
| Dimension A2 (profiled rail systems) [mm] | 34 |
| Dimension A3 (profiled rail systems) [mm] | 33 |
| Dimension B (profiled rail systems) [mm] | 110.5 |
| Dimension B tolerance (profiled rail systems) [mm] | +0.5 |
| Dimension B1 [mm] | 77 |
| Dimension E1 [mm] | 82 |
| Dimension E2 (profiled rail systems) [mm] | 62 |
| Dimension E3 (profiled rail systems) [mm] | 52 |
| Dimension E8 (profiled rail systems) [mm] | 58 |
| Dimension E9 (profiled rail systems) [mm] | 17.35 |
| Dimension H [mm] | 48.0 |
| Dimension H1 (profiled rail systems) [mm] | 40.4 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 32.15 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 31.85 |
| Dimension K1 (profiled rail systems) [mm] | 14.5 |
| Dimension K2 (profiled rail systems) [mm] | 16 |
| Dimension K3 (profiled rail systems) [mm] | 6.9 |
| Dimension K4 (profiled rail systems) [mm] | 6.9 |
| Dimension N1 (profiled rail systems) [mm] | 12 |
| Dimension N2 (profiled rail systems) [mm] | 10.15 |
| Dimension N4 (profiled rail systems) [mm] | 24 |
| Dimension N6 (profiled rail systems) [mm] | 20.5 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S1 (profiled rail systems) [mm] | 8.5 |
| Dimension S11 (profiled rail systems) [mm] | 7.7 |
| Dimension S2 (profiled rail systems) | M10 |
| Dimension S5 (profiled rail system) [mm] | 9 |
| Dimension S9 | M3x5 mm |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension S9 lead [mm] | 5 |
| Dimension T1 min [mm] | 16 |
| Dimension V1 [mm] | 8 |
